Canon M6 vs Olympus TG-4
The Canon EOS M6 and the Olympus Tough TG-4 are two digital cameras that were revealed to the public, respectively, in February 2017 and April 2015. The M6 is a mirrorless interchangeable lens camera, while the TG-4 is a fixed lens compact. The cameras are based on an APS-C (M6) and a 1/2.3-inch (TG-4) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 and the Olympus Tough TG-4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

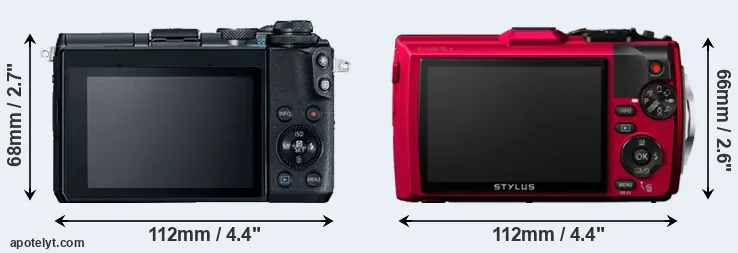

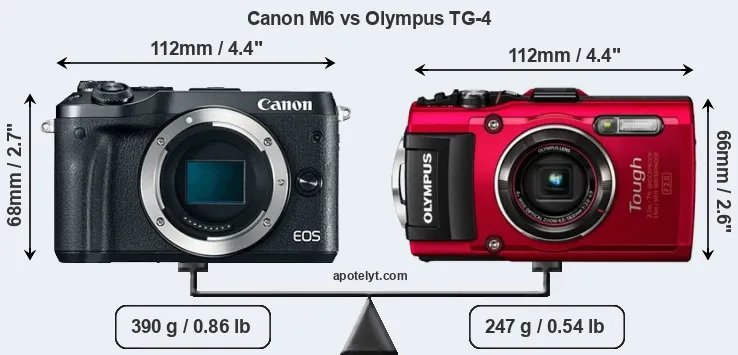

The side-by-side display below illustrates the physical size and weight of the Canon M6 and the Olympus TG-4. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M6 can be obtained in two different colors (black, silver), while the TG-4 is also available in two color-versions, but different ones (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-4 is somewhat smaller (3 percent) than the Canon M6. It is noteworthy in this context that the TG-4 is splash and dust-proof, while the M6 does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the M6 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
Concerning battery life, the M6 gets 295 shots out of its LP-E17 battery, while the TG-4 can take 380 images on a single charge of its LI-92B power pack. The power pack in the TG-4 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|2.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599|
|4.||Canon M6 Mark II||120 mm||70 mm||49 mm||408 g||305||n||Aug 2019||849|
|5.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|6.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|7.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|8.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|9.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|10.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|11.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|12.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|13.||Fujifilm XP140||110 mm||71 mm||28 mm||207 g||240||Y||Feb 2019||229|
|14.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|15.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|16.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|17.||Sony HX80||102 mm||58 mm||36 mm||245 g||390||n||Mar 2016||349|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-4 was launched at a lower price than the M6, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M6 features an APS-C sensor and the Olympus TG-4 a 1/2.3-inch sensor. The sensor area in the TG-4 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M6 has a native 3:2 aspect ratio, while the one in the TG-4 offers a 4:3 aspect.

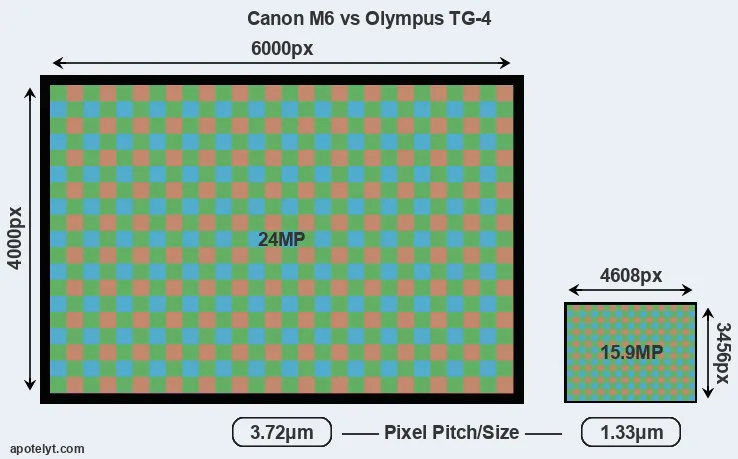

With 24MP, the M6 offers a higher resolution than the TG-4 (15.9MP), but the M6 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.33μm for the TG-4) due to its larger sensor. Moreover, the M6 is a somewhat more recent model (by 1 year and 10 months) than the TG-4, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus TG-4 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus Tough TG-4 are ISO 100 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||..||..||..||..|
|4.||Canon M6 Mark II||APS-C||32.3||6960||4640||4K/30p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M6 provides a higher frame rate than the TG-4. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The M6 and the TG-4 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The adjacent table lists some of the other core features of the Canon M6 and Olympus TG-4 along with similar information for a selection of comparators.
|3.||Canon M50 Mark II||2360||n||3.0||1040||swivel||Y||1/4000s||10.0||Y||n|
|4.||Canon M6 Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||14.0||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M6 has a touchscreen, while the TG-4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M6 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the TG-4 does not have a selfie-screen.
The Canon M6 and the Olympus TG-4 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M6 and the TG-4 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Olympus Tough TG-4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon M50 Mark II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon M6 Mark II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
It is notable that the M6 has a hotshoe, while the TG-4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the M6 and the TG-4 have been discontinued, but can regularly be found used on eBay. The TG-4 was replaced by the Olympus TG-5, while the M6 was followed by the Canon M6 Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon M6 better than the Olympus TG-4 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M6:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Is somewhat more recent (announced 1 year and 10 months after the TG-4).
Advantages of the Olympus Tough TG-4:
- Ready to shoot: Has an integrated lens, whereas the M6 necessitates an extra lens.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M6).
- Longer lasting: Gets more shots (380 versus 295) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in April 2015).
If the count of individual advantages (bullet points above) is taken as a guide, the M6 is the clear winner of the match-up (20 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M6 and the Olympus TG-4 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M6 or the TG-4. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|2.||Olympus TG-4||..||+||79/100||4/5||4/5||Apr 2015||379|
|3.||Canon M50 Mark II||4/5||..||..||4.5/5||3.5/5||Oct 2020||599|
|4.||Canon M6 Mark II||..||+||85/100||4/5||4/5||Aug 2019||849|
|5.||Canon M50||..||+||79/100||..||3.5/5||Feb 2018||779|
|6.||Canon T7||..||o||..||3.5/5||3.5/5||Feb 2018||449|
|7.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|8.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|9.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|10.||Canon T7i||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|11.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|12.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|13.||Fujifilm XP140||..||+||..||3.5/5||4/5||Feb 2019||229|
|14.||Nikon W300||..||+||..||4/5||4/5||May 2017||389|
|15.||Olympus TG-6||..||+ +||76/100||4/5||4/5||May 2019||449|
|16.||Olympus TG-5||..||+ +||..||4/5||4/5||May 2017||449|
|17.||Sony HX80||..||..||..||..||..||Mar 2016||349|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M6 vs Olympus TG-4
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M6||Olympus TG-4|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||25-100mm f/2.0-4.9|
|Launch Date||February 2017||April 2015|
|Launch Price||USD 779||USD 379|
|Sensor Specs||Canon M6||Olympus TG-4|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.3 x 14.9 mm||6.17 x 4.55 mm|
|Sensor Area||332.27 mm2||28.0735 mm2|
|Sensor Diagonal||26.8 mm||7.7 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.72 μm||1.33 μm|
|Pixel Density||7.22 MP/cm2||56.73 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 7||TruePic VII|
|Screen Specs||Canon M6||Olympus TG-4|
|Viewfinder Type||Viewfinder optional||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M6||Olympus TG-4|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M6||Olympus TG-4|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon M6||Olympus TG-4|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||295 shots per charge||380 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
112 x 68 x 45 mm
(4.4 x 2.7 x 1.8 in)
112 x 66 x 31 mm
(4.4 x 2.6 x 1.2 in)
|Camera Weight||390 g (13.8 oz)||247 g (8.7 oz)|
