Canon M6 vs T3

The Canon EOS M6 and the Canon EOS Rebel T3 (labelled Canon 1100D in some countries) are two digital cameras that were revealed to the public, respectively, in February 2017 and February 2011. The M6 is a mirrorless interchangeable lens camera, while the T3 is a DSLR. Both cameras are equipped with an APS-C sensor. The M6 has a resolution of 24 megapixels, whereas the T3 provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6		Canon T3
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Canon EF mount lenses
24 MP – APS-C sensor		12.2 MP – APS-C sensor
1080/60p Video		720/30p Video
ISO 100-25,600		ISO 100-6,400
Viewfinder optional		Optical viewfinder
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		3 shutter flaps per second
295 shots per battery charge		700 shots per battery charge
112 x 68 x 45 mm, 390 g		130 x 100 x 78 mm, 495 g

Check M6 offers at
ebay.com
Check T3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 and the Canon EOS Rebel T3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon M6 and the Canon T3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M6 can be obtained in two different colors (black, silver), while the T3 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T3 is considerably larger (71 percent) than the Canon M6. Moreover, the T3 is markedly heavier (27 percent) than the M6. In this context, it is worth noting that neither the M6 nor the T3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 gets 295 shots out of its Canon LP-E17 battery, while the T3 can take 700 images on a single charge of its Canon LP-E10 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
2.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
3.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	849	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
5.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
6.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
8.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
11.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
12.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
13.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
14.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
15.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
16.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T3 was launched at a markedly lower price (by 42 percent) than the M6, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the T3 is 3 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the M6 uses a more advanced image processing engine (DIGIC 7) than the T3 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

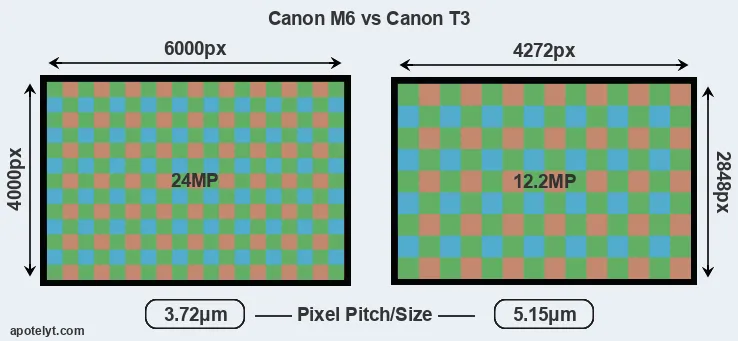

With 24MP, the M6 offers a higher resolution than the T3 (12.2MP), but the M6 has smaller individual pixels (pixel pitch of 3.72μm versus 5.15μm for the T3). However, the M6 is a much more recent model (by 6 years) than the T3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon T3 are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The M6 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon EOS Rebel T3 are ISO 100 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M6 provides substantially higher image quality than the T3, with an overall score that is 16 points higher. This advantage is based on 1.5 bits higher color depth, 1.6 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
2.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
3.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
6.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
12.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
13.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
14.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
15.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
16.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M6 provides a higher video resolution than the T3. It can shoot video footage at 1080/60p, while the T3 is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the T3 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M6 relies on live view and the rear LCD for framing. That said, the M6 can be equipped with an optional viewfinder – the EVF-DC2. The table below summarizes some of the other core capabilities of the Canon M6 and Canon T3 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
2.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
12.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
15.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
16.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M6 has a touchscreen, while the T3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon M6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 and the T3 write their files to SDXC cards. The M6 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T3 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 and Canon EOS Rebel T3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

It is notable that the M6 has a microphone port, which is missing on the T3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the M6 and the T3 have been discontinued, but can regularly be found used on ebay. The T3 was replaced by the Canon T5, while the M6 was followed by the Canon M6 Mark II. Further information on the features and operation of the M6 and T3 can be found, respectively, in the Canon M6 Manual (free pdf) or the online Canon T3 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon M6 or the Canon T3 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS M6:

• More detail: Offers more megapixels (24 vs 12.2MP) with a 40% higher linear resolution.
• Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 4).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (112x68mm vs 130x100mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 105g or 21 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 6 years of technical progress since the T3 launch.

Reasons to prefer the Canon EOS Rebel T3:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Gets more shots (700 versus 295) out of a single battery charge.
• More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in February 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the M6 is the clear winner of the match-up (24 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 and the Canon T3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M6 and the T3 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
2.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
3.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	849	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
5.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
6.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
8.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
11.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
12.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
13.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
14.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
15.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
16.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
