Canon M6 Mark II vs Olympus E-M10 II

The Canon EOS M6 Mark II and the Olympus OM-D E-M10 Mark II are two digital cameras that were revealed to the public, respectively, in August 2019 and August 2015. Both the M6 Mark II and the E-M10 II are mirrorless interchangeable lens cameras that are based on an APS-C (M6 Mark II) and a Four Thirds (E-M10 II) sensor. The Canon has a resolution of 32.3 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M6 Mark II		Olympus E-M10 II
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
32.3 MP – APS-C sensor		15.9 MP – Four Thirds sensor
4K/30p Video		1080/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 200-25,600
Viewfinder optional		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
14 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
305 shots per battery charge		320 shots per battery charge
120 x 70 x 49 mm, 408 g		120 x 83 x 47 mm, 390 g

Check M6 Mark II offers at
ebay.com
Check E-M10 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M6 Mark II and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

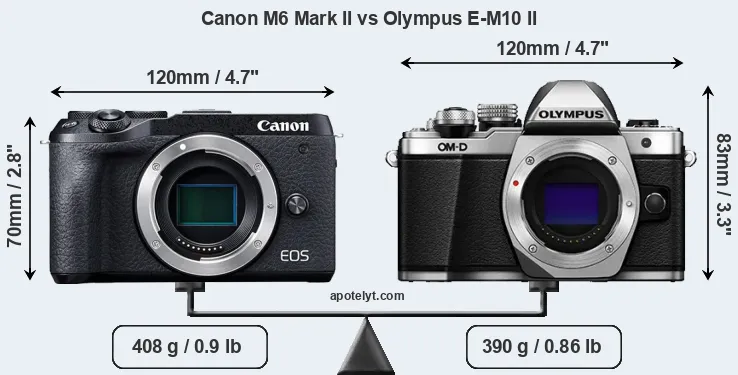

An illustration of the physical size and weight of the Canon M6 Mark II and the Olympus E-M10 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The E-M10 II can be obtained in three different colors (black, silver, brown), while the M6 Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is notably larger (19 percent) than the Canon M6 Mark II. However, the E-M10 II is slightly lighter (4 percent) than the M6 Mark II. In this context, it is worth noting that neither the M6 Mark II nor the E-M10 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M6 Mark II gets 305 shots out of its Canon LP-E17 battery, while the E-M10 II can take 320 images on a single charge of its Olympus BLS-50 power pack. The power pack in the M6 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6 Mark II	120 mm	70 mm	49 mm	408 g	305	n	Aug 2019	849	ebay.com
2.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
3.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	899	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
5.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
6.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
8.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	599	ebay.com
9.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549	ebay.com
10.		Canon SL3	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	599	amazon.com
11.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
12.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
13.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
14.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	649	ebay.com
15.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
16.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
17.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M10 II was launched at a somewhat lower price (by 24 percent) than the M6 Mark II, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M6 Mark II features an APS-C sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M6 Mark II has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.

With 32.3MP, the M6 Mark II offers a higher resolution than the E-M10 II (15.9MP), but the M6 Mark II has smaller individual pixels (pixel pitch of 3.23μm versus 3.76μm for the E-M10 II). However, the M6 Mark II is a much more recent model (by 4 years) than the E-M10 II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon M6 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M6 Mark II for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The M6 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M6 Mark II has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M6 Mark II	APS-C	32.3	6960	4640	4K/30p	24.0	13.5	1848	83
2.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
3.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
6.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
9.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
10.		Canon SL3	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
11.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
12.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
13.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
14.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
15.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
16.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
17.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M6 Mark II provides a higher video resolution than the E-M10 II. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M6 Mark II relies on live view and the rear LCD for framing. That said, the M6 Mark II can be equipped with an optional viewfinder – the EVF-DC2. The table below summarizes some of the other core capabilities of the Canon M6 Mark II and Olympus E-M10 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M6 Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	14.0/s	Y	n
2.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
3.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
9.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
10.		Canon SL3	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
15.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
16.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
17.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-M10 II and the M6 Mark II is in-body image stabilization (IBIS). The E-M10 II reduces the risk of handshake-induced blur with all attached lenses, while the M6 Mark II offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon M6 Mark II and the Olympus E-M10 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M6 Mark II and the E-M10 II write their files to SDXC cards. The M6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the E-M10 II can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M6 Mark II and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M6 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
2.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon SL3	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
11.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the M6 Mark II has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the M6 Mark II and the E-M10 II have been discontinued, but can regularly be found used on ebay. The E-M10 II was replaced by the Olympus E-M10 III, while the M6 Mark II does not have a direct successor. Further information on the features and operation of the M6 Mark II and E-M10 II can be found, respectively, in the Canon M6 Mark II Manual (free pdf) or the online Olympus E-M10 II Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon M6 Mark II and the Olympus E-M10 II? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M6 Mark II:

• More detail: Offers more megapixels (32.3 vs 15.9MP) with a 45% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (14 vs 8 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x70mm vs 120x83mm) and thus needs less room in the bag.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 4 years of technical progress since the E-M10 II launch.

Reasons to prefer the Olympus OM-D E-M10 Mark II:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was released into a lower priced segment (24 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2015).

If the count of individual advantages (bullet points above) is taken as a guide, the M6 Mark II is the clear winner of the match-up (16 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M6 Mark II and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M6 Mark II or the E-M10 II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M6 Mark II	..	+	4.5/5	85/100	4/5	4/5	Aug 2019	849	ebay.com
2.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
3.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	899	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
5.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
6.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
8.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	599	ebay.com
9.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549	ebay.com
10.		Canon SL3	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	599	amazon.com
11.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
12.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
13.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
14.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	649	ebay.com
15.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
16.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
17.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
