Canon M50 vs Panasonic GH5s
The Canon EOS M50 and the Panasonic Lumix DC-GH5s are two digital cameras that were revealed to the public, respectively, in February 2018 and January 2018. Both the M50 and the GH5s are mirrorless interchangeable lens cameras that are based on an APS-C (M50) and a Four Thirds (GH5s) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 9.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M50 and the Panasonic Lumix DC-GH5s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

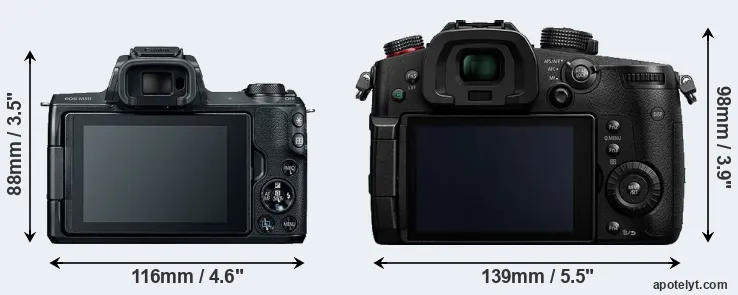

The side-by-side display below illustrates the physical size and weight of the Canon M50 and the Panasonic GH5s. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M50 can be obtained in two different colors (black, white), while the GH5s is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5s is notably larger (33 percent) than the Canon M50. Moreover, the GH5s is substantially heavier (69 percent) than the M50. It is noteworthy in this context that the GH5s is splash and dust-proof, while the M50 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|2.||Panasonic GH5s||139 mm||98 mm||87 mm||660 g||440||Y||Jan 2018||2,499|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599|
|4.||Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|5.||Canon M6 Mark II||120 mm||70 mm||49 mm||408 g||305||n||Aug 2019||849|
|6.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|7.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|8.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|9.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|10.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|11.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|12.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|13.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|14.||Panasonic FZ300||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599|
|15.||Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|16.||Panasonic GH3||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299|
|17.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M50 was launched at a markedly lower price (by 69 percent) than the GH5s, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M50 features an APS-C sensor and the Panasonic GH5s a Four Thirds sensor. The sensor area in the GH5s is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M50 has a native 3:2 aspect ratio, while the one in the GH5s offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 24MP, the M50 offers a higher resolution than the GH5s (9.9MP), but the M50 has smaller individual pixels (pixel pitch of 3.72μm versus 4.77μm for the GH5s). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon M50 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M50 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.
The M50 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M50 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DC-GH5s are ISO 160 to ISO 51200, with the possibility to increase the ISO range to 80-204800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Panasonic GH5s||Four Thirds||9.9||3680||2700||4K/60p||..||..||..||..|
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||..||..||..||..|
|5.||Canon M6 Mark II||APS-C||32.3||6960||4640||4K/30p||..||..||..||..|
|13.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|15.||Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|16.||Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|17.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GH5s provides a faster frame rate than the M50. It can shoot movie footage at 4K/60p, while the Canon is limited to 4K/24p.
Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the GH5s offers a substantially higher resolution than the one in the M50 (3680k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Canon M50, the Panasonic GH5s, and comparable cameras.
|3.||Canon M50 Mark II||2360||n||3.0||1040||swivel||Y||1/4000s||10.0||Y||n|
|5.||Canon M6 Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||14.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The M50 has one, while the GH5s does not. While the built-in flash of the M50 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH5s is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon M50 and the Panasonic GH5s both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M50 and the GH5s write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the M50 only has one slot. The GH5s supports UHS-II cards (on both slots), while the M50 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M50 and Panasonic Lumix DC-GH5s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon M50 Mark II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|5.||Canon M6 Mark II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
It is notable that the GH5s has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M50 lacks such a headphone port.
Studio photographers will appreciate that the Panasonic GH5s (unlike the M50) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the M50 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the M50 was succeeded by the Canon M50 Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon M50 and the Panasonic GH5s? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M50:
- More detail: Offers more megapixels (24 vs 9.9MP) with a 58% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More compact: Is smaller (116x88mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 270g or 41 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
Reasons to prefer the Panasonic Lumix DC-GH5s:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (4K/60p versus 4K/24p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2360k dots).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 10 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Longer lasting: Gets more shots (440 versus 235) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
If the number of relative strengths (bullet points above) is taken as a guide, the GH5s is the clear winner of the contest (16 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M50 and the Panasonic GH5s place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M50 or the GH5s. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M50||..||+||79/100||..||3.5/5||Feb 2018||779|
|2.||Panasonic GH5s||..||..||84/100||4.5/5||4.5/5||Jan 2018||2,499|
|3.||Canon M50 Mark II||4/5||..||..||4.5/5||3.5/5||Oct 2020||599|
|4.||Canon SL3||..||o||79/100||4/5||4/5||Apr 2019||599|
|5.||Canon M6 Mark II||..||+||85/100||4/5||4/5||Aug 2019||849|
|6.||Canon T7||..||o||..||3.5/5||3.5/5||Feb 2018||449|
|7.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|8.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|9.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|10.||Canon T7i||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|11.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|12.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|13.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|14.||Panasonic FZ300||..||+ +||..||4.5/5||4.5/5||Jul 2015||599|
|15.||Panasonic GH4||5/5||+ +||85/100||5/5||5/5||Feb 2014||1,499|
|16.||Panasonic GH3||5/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||1,299|
|17.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon M50 vs Panasonic GH5s
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M50||Panasonic GH5s|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2018||January 2018|
|Launch Price||USD 779||USD 2,499|
|Sensor Specs||Canon M50||Panasonic GH5s|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||9.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||3680 x 2700 pixels|
|Pixel Pitch||3.72 μm||4.77 μm|
|Pixel Density||7.22 MP/cm2||4.42 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/24p Video||4K/60p Video|
|ISO Setting||100 - 25,600 ISO||160 - 51,200 ISO|
|ISO Boost||100 - 51,200 ISO||80 - 204,800 ISO|
|Image Processor||DIGIC 8||Venus 10|
|Screen Specs||Canon M50||Panasonic GH5s|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon M50||Panasonic GH5s|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||10 shutter flaps/s||12 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon M50||Panasonic GH5s|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon M50||Panasonic GH5s|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||235 shots per charge||440 shots per charge|
116 x 88 x 59 mm
(4.6 x 3.5 x 2.3 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||390 g (13.8 oz)||660 g (23.3 oz)|
