Canon M5 vs Sony NEX-F3
The Canon EOS M5 and the Sony Alpha NEX-F3 are two digital cameras that were officially introduced, respectively, in September 2016 and May 2012. Both the M5 and the NEX-F3 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Sony Alpha NEX-F3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

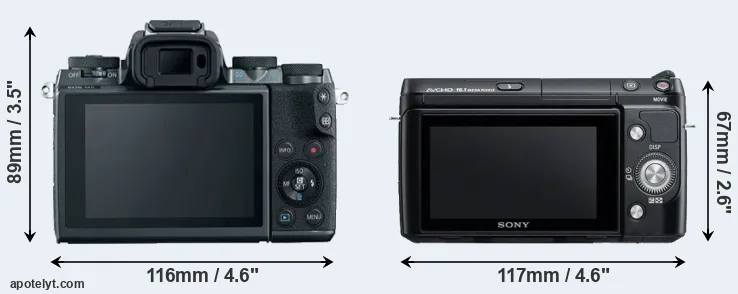

An illustration of the physical size and weight of the Canon M5 and the Sony NEX-F3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The NEX-F3 can be obtained in three different colors (black, silver, white), while the M5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-F3 is notably smaller (24 percent) than the Canon M5. Moreover, the NEX-F3 is markedly lighter (26 percent) than the M5. In this context, it is worth noting that neither the M5 nor the NEX-F3 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|2.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599||ebay.com|
|3.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|5.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|6.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|7.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|8.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|9.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|10.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|11.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|12.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|13.||Sony A5100||110 mm||63 mm||36 mm||283 g||400||n||Aug 2014||549||ebay.com|
|14.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499||ebay.com|
|15.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699||ebay.com|
|16.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599||ebay.com|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-F3 was launched at a markedly lower price (by 39 percent) than the M5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-F3 is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon M5 offers a higher resolution of 24 megapixels, compared with 16 MP of the Sony NEX-F3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.78μm for the NEX-F3). However, it should be noted that the M5 is much more recent (by 4 years and 4 months) than the NEX-F3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Sony NEX-F3 are 24.6 x 16.3 inches or 62.4 x 41.5 cm for good quality, 19.6 x 13.1 inches or 49.9 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.6 x 27.6 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sony Alpha NEX-F3 are ISO 100 to ISO 16000 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the M5 has a notably higher overall DXO score than the NEX-F3 (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.7 bits higher color depth, 0.1 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M5 provides a higher frame rate than the NEX-F3. It can shoot video footage at 1080/60p, while the Sony is limited to 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-F3 relies on live view and the rear LCD for framing. That said, the NEX-F3 can be equipped with an optional viewfinder – the FDA-EV1S. The adjacent table lists some of the other core features of the Canon M5 and Sony NEX-F3 along with similar information for a selection of comparators.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|2.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||Y||n|
|3.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|6.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|7.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|9.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|10.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Sony A5100||none||n||3.0 / 922||tilting||Y||1/4000s||6.0/s||Y||n|
|14.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|15.||Sony NEX-5N||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0/s||n||n|
|16.||Sony NEX-3||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|17.||Sony NEX-5||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the NEX-F3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The M5 writes its imaging data to SDXC cards, while the NEX-F3 uses SDXC or Memory Stick PRO Duo cards. The M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-F3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Sony Alpha NEX-F3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|7.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Sony A5100||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|14.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
|15.||Sony NEX-5N||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Sony NEX-3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the M5 has a microphone port, which is missing on the NEX-F3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the M5 and the NEX-F3 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Sony. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon M5 and the Sony NEX-F3? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 16MP) with a 22% higher linear resolution.
- Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (9 vs 5.5 flaps/sec) to capture the decisive moment.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 4 months of technical progress since the NEX-F3 launch.
Arguments in favor of the Sony Alpha NEX-F3:
- More compact: Is smaller (117x67mm vs 116x89mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 113g or 26 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (470 versus 295) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in May 2012).
If the number of relative strengths (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (15 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Sony NEX-F3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the M5 or the NEX-F3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|2.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599||ebay.com|
|3.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|5.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|6.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|7.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|8.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|9.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|10.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|11.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|12.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|13.||Sony A5100||4.5/5||+||..||..||4.5/5||5/5||Aug 2014||549||ebay.com|
|14.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499||ebay.com|
|15.||Sony NEX-5N||3/5||+ +||..||79/100||4.5/5||4.5/5||Aug 2011||699||ebay.com|
|16.||Sony NEX-3||..||..||..||70/100||4.5/5||4/5||May 2010||599||ebay.com|
|17.||Sony NEX-5||3/5||+ +||..||71/100||4.5/5||4/5||May 2010||699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M5 vs Sony NEX-F3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Sony NEX-F3|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Sony E mount lenses|
|Launch Date||September 2016||May 2012|
|Launch Price||USD 979||USD 599|
|Sensor Specs||Canon M5||Sony NEX-F3|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||24 Megapixels||16 Megapixels|
|Image Resolution||6000 x 4000 pixels||4912 x 3264 pixels|
|Pixel Pitch||3.72 μm||4.78 μm|
|Pixel Density||7.22 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60i Video|
|ISO Setting||100 - 25,600 ISO||100 - 16,000 ISO|
|Image Processor||DIGIC 7||BIONZ|
|DXO Sensor Quality (score)||77||73|
|DXO Color Depth (bits)||23.4||22.7|
|DXO Dynamic Range (EV)||12.4||12.3|
|DXO Low Light (ISO)||1262||1114|
|Screen Specs||Canon M5||Sony NEX-F3|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Magnification||.. x|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||920k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Sony NEX-F3|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||5.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M5||Sony NEX-F3|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Sony NEX-F3|
|Battery Life (CIPA)||295 shots per charge||470 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
117 x 67 x 42 mm
(4.6 x 2.6 x 1.7 in)
|Camera Weight||427 g (15.1 oz)||314 g (11.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
