Canon M5 vs Sony HX400V
The Canon EOS M5 and the Sony Cyber-shot DSC-HX400V are two digital cameras that were officially introduced, respectively, in September 2016 and February 2014. The M5 is a mirrorless interchangeable lens camera, while the HX400V is a fixed lens compact. The cameras are based on an APS-C (M5) and a 1/2.3-inch (HX400V) sensor. The Canon has a resolution of 24 megapixels, whereas the Sony provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Sony Cyber-shot DSC-HX400V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon M5 and the Sony HX400V is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX400V is notably larger (17 percent) than the Canon M5. In this context, it is worth noting that neither the M5 nor the HX400V are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX400V has a lens built in, whereas the M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|2.||Sony HX400V||130 mm||93 mm||103 mm||660 g||300||n||Feb 2014||499|
|3.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|6.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|7.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|8.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|9.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|10.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|11.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|12.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|13.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|14.||Sony HX350||130 mm||93 mm||103 mm||652 g||300||n||Dec 2016||449|
|15.||Sony HX90V||102 mm||58 mm||36 mm||245 g||360||n||Apr 2015||429|
|16.||Sony H400||130 mm||95 mm||122 mm||628 g||300||n||Feb 2014||319|
|17.||Sony H300||128 mm||89 mm||92 mm||590 g||350||n||Feb 2014||219|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The HX400V was launched at a lower price than the M5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Sony HX400V a 1/2.3-inch sensor. The sensor area in the HX400V is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the M5 has a native 3:2 aspect ratio, while the one in the HX400V offers a 4:3 aspect.

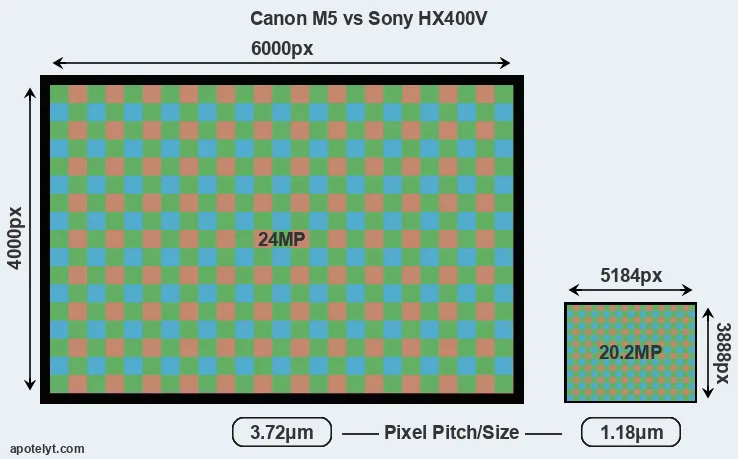

With 24MP, the M5 offers a higher resolution than the HX400V (20.2MP), but the M5 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the HX400V) due to its larger sensor. Moreover, the M5 is a much more recent model (by 2 years and 7 months) than the HX400V, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the HX400V has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Sony HX400V are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sony Cyber-shot DSC-HX400V are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the M5 offers a substantially higher resolution than the one in the HX400V (2360k vs 210k dots). The following table reports on some other key feature differences and similarities of the Canon M5, the Sony HX400V, and comparable cameras.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|2.||Sony HX400V||210||n||3.0 / 921||tilting||n||1/4000s||10.0||Y||Y|
|3.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|5.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0||Y||n|
|6.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|7.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|9.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6||Y||n|
|10.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|11.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4||Y||Y|
|13.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|14.||Sony HX350||202||n||3.0 / 922||tilting||n||1/4000s||10.0||Y||Y|
|15.||Sony HX90V||638||n||3.0 / 921||tilting||n||1/2000s||10.0||Y||Y|
|16.||Sony H400||210||n||3.0 / 460||fixed||n||1/2000s||0.7||Y||Y|
|17.||Sony H300||none||n||3.0 / 460||fixed||n||1/1500s||0.8||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the HX400V has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the HX400V does not have a selfie-screen.
The M5 writes its imaging data to SDXC cards, while the HX400V uses SDXC or Memory Stick PRO Duo cards. The M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the HX400V cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Sony Cyber-shot DSC-HX400V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Sony HX400V||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|7.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|13.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|14.||Sony HX350||-||stereo / mono||-||-||micro||2.0||-||-||-|
|15.||Sony HX90V||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|16.||Sony H400||-||mono / mono||-||-||micro||2.0||Y||-||-|
|17.||Sony H300||-||mono / mono||-||-||micro||2.0||Y||-||-|
It is notable that the M5 has a microphone port, which is missing on the HX400V. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Travel and landscape photographers will find it useful that the HX400V has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the M5 and the HX400V are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon and Sony. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon M5 and the Sony HX400V? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 210k dots).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- More compact: Is smaller (116x89mm vs 130x93mm) and thus needs less room in the bag.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 7 months of technical progress since the HX400V launch.
Reasons to prefer the Sony Cyber-shot DSC-HX400V:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has an integrated lens, whereas the M5 necessitates an extra lens.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in February 2014).
If the count of relative strengths (bullet points above) is taken as a measure, the M5 is the clear winner of the match-up (18 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Sony HX400V place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M5 and the HX400V in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|2.||Sony HX400V||4/5||+ +||..||..||4/5||4/5||Feb 2014||499|
|3.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779|
|6.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|7.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|8.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|9.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|10.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|11.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|12.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549|
|13.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|14.||Sony HX350||..||..||..||..||..||4/5||Dec 2016||449|
|15.||Sony HX90V||4/5||+ +||..||..||4/5||4.5/5||Apr 2015||429|
|16.||Sony H400||..||o||..||..||3.5/5||3.5/5||Feb 2014||319|
|17.||Sony H300||..||+||..||..||4.5/5||4/5||Feb 2014||219|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 100D vs Canon M5
- Canon 1Ds Mark II vs Sony HX400V
- Canon 5D Mark II vs Canon M5
- Canon 700D vs Sony HX400V
- Canon M5 vs Canon T6
- Canon M5 vs Hasselblad X1D II
- Canon M5 vs Panasonic G3
- Canon M5 vs Panasonic TZ100
- Canon M50 vs Sony HX400V
- Fujifilm X-A1 vs Sony HX400V
- Nikon P1000 vs Sony HX400V
- Sony A3000 vs Sony HX400V
Specifications: Canon M5 vs Sony HX400V
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Sony HX400V|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||24-1200mm f/2.8-6.3|
|Launch Date||September 2016||February 2014|
|Launch Price||USD 979||USD 499|
|Sensor Specs||Canon M5||Sony HX400V|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.3 x 14.9 mm||6.17 x 4.55 mm|
|Sensor Area||332.27 mm2||28.0735 mm2|
|Sensor Diagonal||26.8 mm||7.7 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.72 μm||1.18 μm|
|Pixel Density||7.22 MP/cm2||71.80 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100 - 25,600 ISO||80 - 3,200 ISO|
|ISO Boost||no Enhancement||80 - 12,800 ISO|
|Image Processor||DIGIC 7||BIONZ X|
|DXO Sensor Quality (score)||77||..|
|DXO Color Depth (bits)||23.4||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||1262||..|
|Screen Specs||Canon M5||Sony HX400V|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Magnification||.. x|
|Viewfinder Resolution||2360k dots||210k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||921k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Sony HX400V|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||10 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M5||Sony HX400V|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon M5||Sony HX400V|
|Battery Life (CIPA)||295 shots per charge||300 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
130 x 93 x 103 mm
(5.1 x 3.7 x 4.1 in)
|Camera Weight||427 g (15.1 oz)||660 g (23.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
