Canon M5 vs Olympus E-P2
The Canon EOS M5 and the Olympus PEN E-P2 are two digital cameras that were officially introduced, respectively, in September 2016 and November 2009. Both the M5 and the E-P2 are mirrorless interchangeable lens cameras that are based on an APS-C (M5) and a Four Thirds (E-P2) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Olympus PEN E-P2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon M5 and the Olympus E-P2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-P2 can be obtained in three different colors (black, silver, white), while the M5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P2 is notably smaller (18 percent) than the Canon M5. Moreover, the E-P2 is markedly lighter (17 percent) than the M5. In this context, it is worth noting that neither the M5 nor the E-P2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|2.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799||ebay.com|
|3.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|5.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|6.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|7.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|8.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|9.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|10.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|11.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|12.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|13.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799||ebay.com|
|14.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599||ebay.com|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|16.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799||ebay.com|
|17.||Panasonic GH1||124 mm||90 mm||45 mm||385 g||300||n||Mar 2009||899||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-P2 was launched at a somewhat lower price (by 18 percent) than the M5, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Olympus E-P2 a Four Thirds sensor. The sensor area in the E-P2 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M5 has a native 3:2 aspect ratio, while the one in the E-P2 offers a 4:3 aspect.

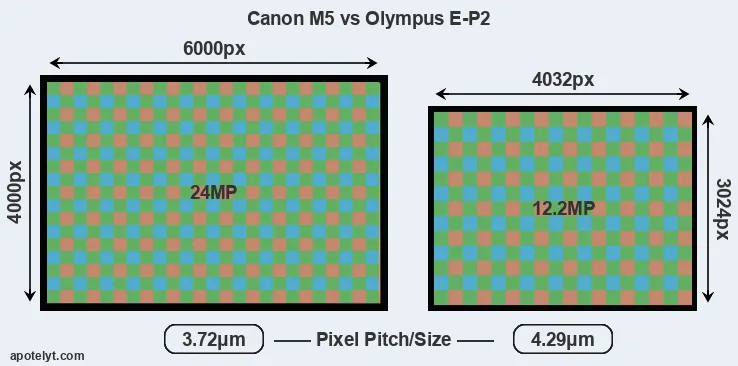

With 24MP, the M5 offers a higher resolution than the E-P2 (12.2MP), but the M5 has smaller individual pixels (pixel pitch of 3.72μm versus 4.29μm for the E-P2). However, the M5 is a much more recent model (by 6 years and 10 months) than the E-P2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-P2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-P2 are ISO 100 to ISO 6400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the M5 provides substantially higher image quality than the E-P2, with an overall score that is 21 points higher. This advantage is based on 1.9 bits higher color depth, 2 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|13.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|14.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|17.||Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M5 provides a higher video resolution than the E-P2. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P2 relies on live view and the rear LCD for framing. That said, the E-P2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon M5 and Olympus E-P2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|2.||Olympus E-P2||optional||n||3.0 / 230||fixed||n||1/4000s||3.0/s||n||Y|
|3.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|6.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|7.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|9.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|10.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0/s||Y||Y|
|14.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||Y|
|15.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|16.||Olympus E-P1||none||n||3.0 / 230||fixed||n||1/4000s||3.0/s||n||Y|
|17.||Panasonic GH1||1440||n||3.0 / 460||swivel||n||1/4000s||3.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the E-P2 does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-P2 does not have a selfie-screen.
The M5 writes its imaging data to SDXC cards, while the E-P2 uses SDHC cards. The M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Olympus E-P2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|7.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|11.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|12.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-P1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic GH1||Y||stereo / -||Y||-||mini||2.0||-||-||-|
It is notable that the M5 has a microphone port, which is missing on the E-P2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the M5 and the E-P2 have been discontinued, but can regularly be found used on ebay. The E-P2 was replaced by the Olympus E-P3, while the M5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Canon M5 or the Olympus E-P2 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
- Better image quality: Scores substantially higher (21 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.9 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.3 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 6 years and 10 months of technical progress since the E-P2 launch.
Advantages of the Olympus PEN E-P2:
- More compact: Is smaller (121x70mm vs 116x89mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 72g or 17 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was released into a lower priced segment (18 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in November 2009).
If the count of relative strengths (bullet points above) is taken as a measure, the M5 is the clear winner of the match-up (21 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Olympus E-P2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M5 and the E-P2 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|2.||Olympus E-P2||3/5||+||..||69/100||4/5||4.5/5||Nov 2009||799||ebay.com|
|3.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|5.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|6.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|7.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|8.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|9.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|10.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|11.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|12.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|13.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799||ebay.com|
|14.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599||ebay.com|
|15.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|16.||Olympus E-P1||..||+||..||66/100||4/5||4.5/5||Jun 2009||799||ebay.com|
|17.||Panasonic GH1||..||+ +||..||72/100||4.5/5||4.5/5||Mar 2009||899||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M5 vs Olympus E-P2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Olympus E-P2|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Micro Four Thirds lenses|
|Launch Date||September 2016||November 2009|
|Launch Price||USD 979||USD 799|
|Sensor Specs||Canon M5||Olympus E-P2|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.72 μm||4.29 μm|
|Pixel Density||7.22 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 7||TruePic V|
|DXO Sensor Quality (score)||77||56|
|DXO Color Depth (bits)||23.4||21.5|
|DXO Dynamic Range (EV)||12.4||10.4|
|DXO Low Light (ISO)||1262||505|
|Screen Specs||Canon M5||Olympus E-P2|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Magnification||.. x|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||230k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Olympus E-P2|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M5||Olympus E-P2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Olympus E-P2|
|Battery Life (CIPA)||295 shots per charge||300 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
|Camera Weight||427 g (15.1 oz)||355 g (12.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
