Canon M5 vs Nikon D800

The Canon EOS M5 and the Nikon D800 are two digital cameras that were officially introduced, respectively, in September 2016 and February 2012. The M5 is a mirrorless interchangeable lens camera, while the D800 is a DSLR. The cameras are based on an APS-C (M5) and a full frame (D800) sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 36.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M5		Nikon D800
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Nikon F mount lenses
24 MP – APS-C sensor		36.2 MP – Full Frame sensor
1080/60p Video		1080/30p Video
ISO 100-25,600		ISO 100-6,400 (50 - 25,600)
Electronic viewfinder (2360k dots)		Optical viewfinder
3.2" LCD – 1620k dots		3.2" LCD – 921k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
9 shutter flaps per second		4 shutter flaps per second
not weather sealed		Weathersealed body
295 shots per battery charge		900 shots per battery charge
116 x 89 x 61 mm, 427 g		146 x 123 x 82 mm, 1000 g

Check M5 offers at
ebay.com
Check D800 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D800? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

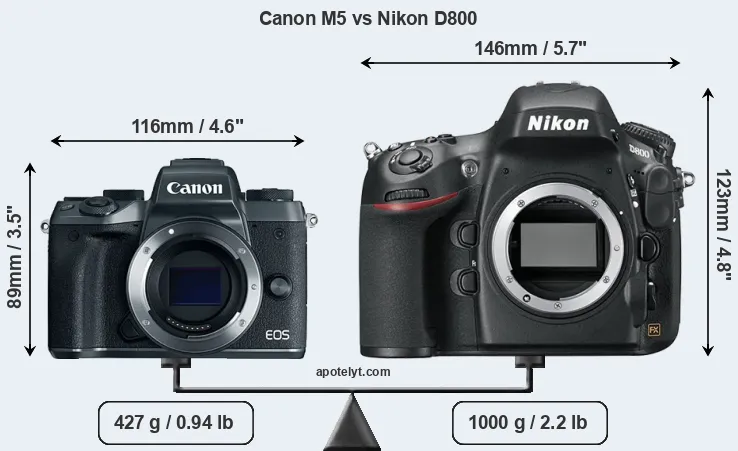

The physical size and weight of the Canon M5 and the Nikon D800 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D800 is considerably larger (74 percent) than the Canon M5. Moreover, the D800 is substantially heavier (134 percent) than the M5. It is noteworthy in this context that the D800 is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M5 gets 295 shots out of its Canon LP-E17 battery, while the D800 can take 900 images on a single charge of its Nikon EN-EL15 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
2.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	2,999	ebay.com
3.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
4.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
6.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
7.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
8.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
9.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
12.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	3,299	amazon.com
13.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
14.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	3,299	ebay.com
15.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	1,999	ebay.com
16.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	3,299	ebay.com
17.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M5 was launched at a markedly lower price (by 67 percent) than the D800, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M5 features an APS-C sensor and the Nikon D800 a full frame sensor. The sensor area in the D800 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 36.2MP, the D800 offers a higher resolution than the M5 (24MP), but the D800 nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 3.72μm for the M5) due to its larger sensor. However, the M5 is a much more recent model (by 4 years and 7 months) than the D800, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D800 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon M5 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D800 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D800 offers substantially better image quality than the M5 (overall score 18 points higher). The advantage is based on 1.9 bits higher color depth, 2 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
2.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
3.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
4.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
7.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
8.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
9.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
13.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
14.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
15.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
16.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
17.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M5 provides a higher frame rate than the D800. It can shoot video footage at 1080/60p, while the Nikon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D800 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon M5 and Nikon D800 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
2.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
3.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
4.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
7.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
9.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
13.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
15.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
16.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
17.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the D800 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D800 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M5 writes its imaging data to SDXC cards, while the D800 uses Compact Flash or SDXC cards. The D800 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M5 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D800 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
3.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
13.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
15.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
16.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-
17.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-

It is notable that the M5 offers wifi support, while the D800 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D800 (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M5 and the D800 have been discontinued, but can regularly be found used on ebay. The D800 was replaced by the Nikon D810, while the M5 does not have a direct successor. Further information on the features and operation of the M5 and D800 can be found, respectively, in the Canon M5 Manual (free pdf) or the online Nikon D800 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon M5 and the Nikon D800? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS M5:

• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (9 vs 4 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (116x89mm vs 146x123mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 573g or 57 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
• More modern: Reflects 4 years and 7 months of technical progress since the D800 launch.

Reasons to prefer the Nikon D800:

• More detail: Has more megapixels (36.2 vs 24MP), which boosts linear resolution by 23%.
• Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.9 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (900 versus 295) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in February 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (16 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M5 and the Nikon D800 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M5 or the D800. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
2.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	2,999	ebay.com
3.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
4.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
6.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
7.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
8.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
9.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
12.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	3,299	amazon.com
13.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
14.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	3,299	ebay.com
15.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	1,999	ebay.com
16.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	3,299	ebay.com
17.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M5 offers at
ebay.com
Check D800 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check M5 offers at
ebay.com
Check D800 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
