Canon M5 vs Nikon D2X
The Canon EOS M5 and the Nikon D2X are two digital cameras that were revealed to the public, respectively, in September 2016 and September 2004. The M5 is a mirrorless interchangeable lens camera, while the D2X is a DSLR. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Nikon D2X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

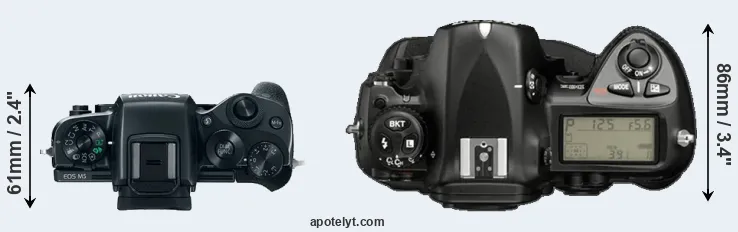

An illustration of the physical size and weight of the Canon M5 and the Nikon D2X is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D2X is considerably larger (130 percent) than the Canon M5. Moreover, the D2X is substantially heavier (193 percent) than the M5. It is noteworthy in this context that the D2X is splash and dust-proof, while the M5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the M5 gets 295 shots out of its LP-E17 battery, while the D2X can take 3800 images on a single charge of its EN-EL4a power pack. As can be seen in the images above, the D2X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|2.||Nikon D2X||158 mm||150 mm||86 mm||1252 g||3800||Y||Sep 2004||4,999||ebay.com|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|5.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||amazon.com|
|6.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779||ebay.com|
|7.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|8.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|9.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|10.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||ebay.com|
|11.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|12.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|13.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199||ebay.com|
|14.||Nikon D3||160 mm||157 mm||88 mm||1300 g||4300||Y||Aug 2007||4,999||ebay.com|
|15.||Nikon D2Xs||158 mm||150 mm||86 mm||1252 g||3800||Y||Jun 2006||4,699||ebay.com|
|16.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699||ebay.com|
|17.||Nikon D1X||157 mm||153 mm||85 mm||1100 g||1200||Y||Feb 2001||5,999||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M5 was launched at a markedly lower price (by 80 percent) than the D2X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D2X is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon M5 offers a higher resolution of 24 megapixels, compared with 12.2 MP of the Nikon D2X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 5.52μm for the D2X). However, it should be noted that the M5 is much more recent (by 12 years) than the D2X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon D2X are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Nikon D2X are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M5 provides substantially higher image quality than the D2X, with an overall score that is 18 points higher. This advantage is based on 1.3 bits higher color depth, 1.5 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|5.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|13.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|14.||Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M5 indeed provides movie recording capabilities, while the D2X does not. The highest resolution format that the M5 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the D2X has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon M5 and Nikon D2X in connection with corresponding information for a sample of similar cameras.
|1.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|2.||Nikon D2X||optical||Y||2.5 / 235||fixed||n||1/8000s||5.0/s||n||n|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2/s||Y||Y|
|6.||Canon M6||optional||n||3.0 / 1040||tilting||Y||1/4000s||9.0/s||Y||n|
|7.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|8.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|10.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|11.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Nikon D3S||optical||Y||3.0 / 921||fixed||n||1/8000s||11.0/s||n||n|
|14.||Nikon D3||optical||Y||3.0 / 922||fixed||n||1/8000s||11.0/s||n||n|
|15.||Nikon D2Xs||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||n||n|
|16.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|17.||Nikon D1X||optical||Y||2.0 / 120||fixed||n||1/16000s||3.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The M5 has one, while the D2X does not. While the built-in flash of the M5 is not very powerful, it can at times be useful as a fill-in light.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D2X does not have a selfie-screen.
The M5 writes its imaging data to SDXC cards, while the D2X uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Nikon D2X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Nikon D2X||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon M6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|8.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|11.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Nikon D3S||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Nikon D3||Y||- / -||-||-||mini||2.0||-||-||-|
|15.||Nikon D2Xs||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Nikon D1X||Y||- / -||-||-||-||FW||-||-||-|
It is notable that the M5 offers wifi support, while the D2X does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D2X (unlike the M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the M5 and the D2X have been discontinued, but can regularly be found used on ebay. The D2X was replaced by the Nikon D2Xs, while the M5 does not have a direct successor. Further information on the features and operation of the M5 and D2X can be found, respectively, in the Canon M5 Manual (free pdf) or the online Nikon D2X Manual.
So what is the bottom line? Is there a clear favorite between the Canon M5 and the Nikon D2X? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 40% higher linear resolution.
- Better image quality: Scores substantially higher (18 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.5 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 235k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x89mm vs 158x150mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 825g or 66 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
- More modern: Reflects 12 years of technical progress since the D2X launch.
Advantages of the Nikon D2X:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3800 versus 295) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been around for much longer (launched in September 2004).
If the number of relative strengths (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (23 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Nikon D2X place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M5 or the D2X. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|2.||Nikon D2X||..||..||..||+ +||..||..||Sep 2004||4,999||ebay.com|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|4.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|5.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529||amazon.com|
|6.||Canon M6||..||..||..||80/100||4/5||4/5||Feb 2017||779||ebay.com|
|7.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|8.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|9.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|10.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899||ebay.com|
|11.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|12.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|13.||Nikon D3S||5/5||..||..||89/100||4.5/5||5/5||Oct 2009||5,199||ebay.com|
|14.||Nikon D3||..||..||..||+ +||5/5||4.5/5||Aug 2007||4,999||ebay.com|
|15.||Nikon D2Xs||..||..||..||..||..||..||Jun 2006||4,699||ebay.com|
|16.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699||ebay.com|
|17.||Nikon D1X||..||..||..||+ +||..||..||Feb 2001||5,999||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon M5 vs Nikon D2X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Nikon D2X|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Nikon F mount lenses|
|Launch Date||September 2016||September 2004|
|Launch Price||USD 979||USD 4,999|
|Sensor Specs||Canon M5||Nikon D2X|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.7 x 15.7 mm|
|Sensor Area||332.27 mm2||372.09 mm2|
|Sensor Diagonal||26.8 mm||28.4 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4288 x 2848 pixels|
|Pixel Pitch||3.72 μm||5.52 μm|
|Pixel Density||7.22 MP/cm2||3.28 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 25,600 ISO||100 - 800 ISO|
|ISO Boost||no Enhancement||100 - 3,200 ISO|
|DXO Sensor Quality (score)||77||59|
|DXO Color Depth (bits)||23.4||22.1|
|DXO Dynamic Range (EV)||12.4||10.9|
|DXO Low Light (ISO)||1262||476|
|Screen Specs||Canon M5||Nikon D2X|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Magnification||.. x||0.57x|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||1620k dots||235k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Nikon D2X|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|Connectivity Specs||Canon M5||Nikon D2X|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Nikon D2X|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||295 shots per charge||3800 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
158 x 150 x 86 mm
(6.2 x 5.9 x 3.4 in)
|Camera Weight||427 g (15.1 oz)||1252 g (44.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
