Canon M5 vs XT
The Canon EOS M5 and the Canon EOS Rebel XT (labelled Canon 350D in some countries) are two digital cameras that were officially introduced, respectively, in September 2016 and February 2005. The M5 is a mirrorless interchangeable lens camera, while the XT is a DSLR. Both cameras are equipped with an APS-C sensor. The M5 has a resolution of 24 megapixels, whereas the XT provides 8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M5 and the Canon EOS Rebel XT? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

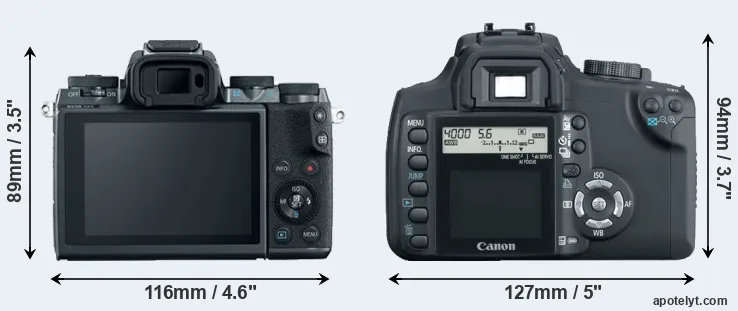

An illustration of the physical size and weight of the Canon M5 and the Canon XT is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The XT can be obtained in two different colors (black, silver), while the M5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XT is notably larger (16 percent) than the Canon M5. Moreover, the XT is markedly heavier (26 percent) than the M5. In this context, it is worth noting that neither the M5 nor the XT are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|2.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|6.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|7.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|8.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|9.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|10.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|11.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|12.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|13.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|14.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|15.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|16.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XT was somewhat cheaper (by 8 percent) than the M5 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XT is 1 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the M5 uses a more advanced image processing engine (DIGIC 7) than the XT (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.
With 24MP, the M5 offers a higher resolution than the XT (8MP), but the M5 has smaller individual pixels (pixel pitch of 3.72μm versus 6.41μm for the XT). However, the M5 is a much more recent model (by 11 years and 7 months) than the XT, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.
The M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M5 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Canon EOS Rebel XT are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the M5 provides substantially higher image quality than the XT, with an overall score that is 17 points higher. This advantage is based on 1.6 bits higher color depth, 1.6 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|5.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
Many modern cameras cannot only take still pictures, but also record videos. The M5 indeed provides movie recording capabilities, while the XT does not. The highest resolution format that the M5 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M5 has an electronic viewfinder (2360k dots), while the XT has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon M5 and Canon XT in connection with corresponding information for a sample of similar cameras.
|5.||Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M5 has a touchscreen, while the XT has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XT does not have a selfie-screen.
The M5 writes its imaging data to SDXC cards, while the XT uses Compact Flash cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M5 and Canon EOS Rebel XT and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the M5 offers wifi support, while the XT does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The M5 is a recent model that features in the current product line-up of Canon. In contrast, the XT has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the XT was succeeded by the Canon Xti. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Which of the two cameras – the Canon M5 or the Canon XT – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS M5:
- More detail: Offers more megapixels (24 vs 8MP) with a 74% higher linear resolution.
- Better image quality: Scores substantially higher (17 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.6 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC II).
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 115k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (116x89mm vs 127x94mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 113g or 21 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More modern: Reflects 11 years and 7 months of technical progress since the XT launch.
Advantages of the Canon EOS Rebel XT:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Longer lasting: Gets more shots (400 versus 295) out of a single battery charge.
- More heavily discounted: Has been around for much longer (launched in February 2005).
If the count of individual advantages (bullet points above) is taken as a guide, the M5 is the clear winner of the match-up (22 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M5 and the Canon XT place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the M5 or the XT perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|2.||Canon XT||..||80/100||+ +||o||..||Feb 2005||899|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon G9 X Mark II||4/5||..||75/100||4.5/5||4.5/5||Jan 2017||529|
|6.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|7.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|8.||Canon 760D||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|9.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|10.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|11.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|12.||Canon XTi||..||+ +||+ +||o||4/5||Aug 2006||799|
|13.||Canon Rebel||..||..||+ +||..||..||Aug 2003||899|
|14.||Fujifilm X-T20||5/5||+ +||82/100||5/5||4.5/5||Jan 2017||899|
|15.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|16.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M5 vs Canon XT
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M5||Canon XT|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Canon EF mount lenses|
|Launch Date||September 2016||February 2005|
|Launch Price||USD 979||USD 899|
|Sensor Specs||Canon M5||Canon XT|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.2 x 14.8 mm|
|Sensor Area||332.27 mm2||328.56 mm2|
|Sensor Diagonal||26.8 mm||26.7 mm|
|Sensor Resolution||24 Megapixels||8 Megapixels|
|Image Resolution||6000 x 4000 pixels||3456 x 2304 pixels|
|Pixel Pitch||3.72 μm||6.41 μm|
|Pixel Density||7.22 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 25,600 ISO||100 - 1,600 ISO|
|Image Processor||DIGIC 7||DIGIC II|
|DXO Sensor Quality (score)||77||60|
|DXO Color Depth (bits)||23.4||21.8|
|DXO Dynamic Range (EV)||12.4||10.8|
|DXO Low Light (ISO)||1262||637|
|Screen Specs||Canon M5||Canon XT|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Magnification||.. x||0.49x|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||1.8inch|
|LCD Resolution||1620k dots||115k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M5||Canon XT|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||9 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||50 000 actuations|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon M5||Canon XT|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M5||Canon XT|
|Battery Life (CIPA)||295 shots per charge||400 shots per charge|
116 x 89 x 61 mm
(4.6 x 3.5 x 2.4 in)
127 x 94 x 64 mm
(5.0 x 3.7 x 2.5 in)
|Camera Weight||427 g (15.1 oz)||540 g (19.0 oz)|
