Canon M3 vs Nikon D800E
The Canon EOS M3 and the Nikon D800E are two digital cameras that were revealed to the public, respectively, in February 2015 and February 2012. The M3 is a mirrorless interchangeable lens camera, while the D800E is a DSLR. The cameras are based on an APS-C (M3) and a full frame (D800E) sensor. The Canon has a resolution of 24 megapixels, whereas the Nikon provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M3 and the Nikon D800E? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

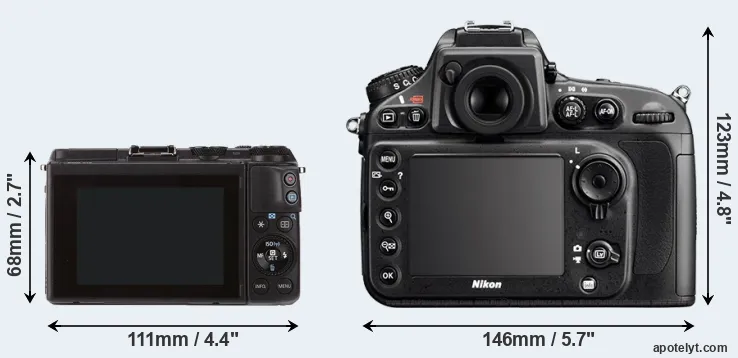

An illustration of the physical size and weight of the Canon M3 and the Nikon D800E is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M3 can be obtained in two different colors (black, white), while the D800E is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D800E is considerably larger (138 percent) than the Canon M3. Moreover, the D800E is substantially heavier (173 percent) than the M3. It is noteworthy in this context that the D800E is splash and dust-proof, while the M3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|2.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599|
|4.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|5.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|6.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|7.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|8.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|9.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|10.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|11.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|12.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|13.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|14.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|15.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|16.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|17.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M3 was launched at a markedly lower price (by 79 percent) than the D800E, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M3 features an APS-C sensor and the Nikon D800E a full frame sensor. The sensor area in the D800E is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
With 36.2MP, the D800E offers a higher resolution than the M3 (24MP), but the D800E nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 3.72μm for the M3) due to its larger sensor. However, the M3 is a much more recent model (by 3 years) than the D800E, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D800E has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D800E implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D800E for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon M3 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The M3 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M3 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D800E are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D800E offers substantially better image quality than the M3 (overall score 24 points higher). The advantage is based on 2.8 bits higher color depth, 2.5 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||..||..||..||..|
|11.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|14.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|15.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|16.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|17.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D800E has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M3 relies on live view and the rear LCD for framing. That said, the M3 can be equipped with an optional viewfinder – the EVF-DC1. The following table reports on some other key feature differences and similarities of the Canon M3, the Nikon D800E, and comparable cameras.
|3.||Canon M50 Mark II||2360||n||3.0||1040||swivel||Y||1/4000s||10.0||Y||n|
|11.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M3 has a touchscreen, while the D800E has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M3 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D800E does not have a selfie-screen.
The Nikon D800E has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The M3 writes its imaging data to SDXC cards, while the D800E uses Compact Flash or SDXC cards. The D800E features dual card slots, which can be very useful in case a memory card fails. In contrast, the M3 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M3 and Nikon D800E and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon M50 Mark II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|11.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the M3 offers wifi support, while the D800E does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D800E (unlike the M3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the M3 and the D800E have been discontinued, but can regularly be found used on eBay. The D800E was replaced by the Nikon D810, while the M3 was followed by the Canon M6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Which of the two cameras – the Canon M3 or the Nikon D800E – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M3:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (111x68mm vs 146x123mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 634g or 63 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (79 percent cheaper at launch).
- More modern: Reflects 3 years of technical progress since the D800E launch.
Reasons to prefer the Nikon D800E:
- More detail: Has more megapixels (36.2 vs 24MP), which boosts linear resolution by 23%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (24 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (900 versus 250) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in February 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the D800E is the clear winner of the contest (18 : 13 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M3 and the Nikon D800E place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M3 or the D800E. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|2.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|3.||Canon M50 Mark II||..||..||..||4.5/5||3.5/5||Oct 2020||599|
|4.||Canon M50||..||+||79/100||..||3.5/5||Feb 2018||779|
|5.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|6.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|7.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|8.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|9.||Canon T6i||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|10.||Canon T6s||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|11.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|12.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|13.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|14.||Nikon D810||5/5||..||86/100||5/5||4.5/5||Jun 2014||3,299|
|15.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|16.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|17.||Nikon D700||..||89/100||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M3 vs Nikon D800E
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M3||Nikon D800E|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Nikon F mount lenses|
|Launch Date||February 2015||February 2012|
|Launch Price||USD 679||USD 3,299|
|Sensor Specs||Canon M3||Nikon D800E|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.9 x 24.0 mm|
|Sensor Area||332.27 mm2||861.6 mm2|
|Sensor Diagonal||26.8 mm||43.2 mm|
|Sensor Resolution||24 Megapixels||36.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||7360 x 4912 pixels|
|Pixel Pitch||3.72 μm||4.88 μm|
|Pixel Density||7.22 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 25,600 ISO|
|Image Processor||DIGIC 6||EXPEED 3|
|DXO Sensor Quality (score)||72||96|
|DXO Color Depth (bits)||22.8||25.6|
|DXO Dynamic Range (EV)||11.8||14.3|
|DXO Low Light (ISO)||1169||2979|
|Screen Specs||Canon M3||Nikon D800E|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M3||Nikon D800E|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||4.2 shutter flaps/s||4 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M3||Nikon D800E|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon M3||Nikon D800E|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||250 shots per charge||900 shots per charge|
111 x 68 x 44 mm
(4.4 x 2.7 x 1.7 in)
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
|Camera Weight||366 g (12.9 oz)||1000 g (35.3 oz)|
