Canon M200 vs Panasonic S5 II

The Canon EOS M200 and the Panasonic Lumix DC-S5 II are two digital cameras that were officially introduced, respectively, in September 2019 and January 2023. Both the M200 and the S5 II are mirrorless interchangeable lens cameras that are based on an APS-C (M200) and a full frame (S5 II) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M200		Panasonic S5 II
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Leica L mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
4k/25p Video		6K/30p Video
ISO 100-25,600		ISO 100-51,200 (50 - 204,800)
No viewfinder, LCD framing		Electronic viewfinder (3680k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Tilting touchscreen		Swivel touchscreen
6.1 shutter flaps per second		9 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
315 shots per battery charge		370 shots per battery charge
108 x 67 x 35 mm, 299 g		134 x 102 x 90 mm, 740 g

Check M200 offers at
ebay.com
Check S5 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M200 and the Panasonic Lumix DC-S5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

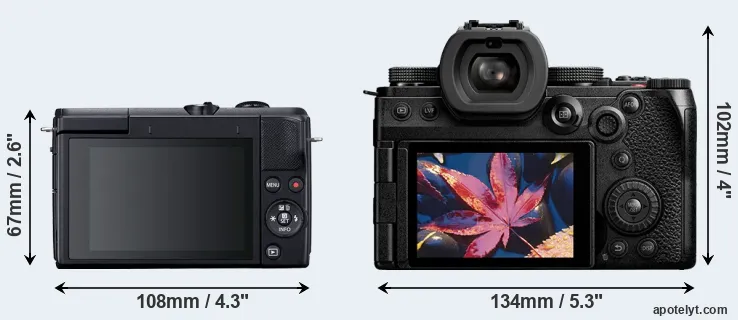

The physical size and weight of the Canon M200 and the Panasonic S5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The M200 can be obtained in two different colors (black, white), while the S5 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 II is considerably larger (89 percent) than the Canon M200. Moreover, the S5 II is substantially heavier (147 percent) than the M200. It is noteworthy in this context that the S5 II is splash and dust-proof, while the M200 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M200 gets 315 shots out of its Canon LP-E12 battery, while the S5 II can take 370 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S5 II can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549	ebay.com
2.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	1,999	amazon.com
3.		Canon M50 Mark II	116 mm	88 mm	59 mm	387 g	305	n	Oct 2020	599	ebay.com
4.		Canon 250D	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	599	amazon.com
5.		Canon G5 X Mark II	111 mm	61 mm	46 mm	340 g	230	n	Jul 2019	899	ebay.com
6.		Canon G7 X Mark III	105 mm	61 mm	41 mm	304 g	235	n	Jul 2019	749	amazon.com
7.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
8.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	399	amazon.com
9.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
10.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
11.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
12.		Fujifilm XF10	113 mm	64 mm	41 mm	279 g	330	n	Jul 2018	499	ebay.com
13.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	1,899	amazon.com
14.		Panasonic GH6	138 mm	100 mm	100 mm	823 g	360	Y	Feb 2022	2,199	amazon.com
15.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	1,999	amazon.com
16.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	1,699	ebay.com
17.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	1,999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M200 was launched at a markedly lower price (by 73 percent) than the S5 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M200 features an APS-C sensor and the Panasonic S5 II a full frame sensor. The sensor area in the S5 II is 155 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the S5 II has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S5 II has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.72μm for the M200), which gives it a potential advantage in terms of light gathering capacity. In addition, the S5 II is much more recent (by 3 years and 3 months) than the M200, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the S5 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

Unlike the M200, the S5 II has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS M200 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
2.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
3.		Canon M50 Mark II	APS-C	24.0	6000	4000	4K/24p	24.0	13.6	1939	83
4.		Canon 250D	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
5.		Canon G5 X Mark II	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
6.		Canon G7 X Mark III	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	583	65
7.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
8.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
9.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
10.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
11.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
12.		Fujifilm XF10	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1844	83
13.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
14.		Panasonic GH6	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.4	1555	77
15.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
16.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
17.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the S5 II provides a better video resolution than the M200. It can shoot movie footage at 6K/30p, while the Canon is limited to 4k/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the S5 II has an electronic viewfinder (3680k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M200 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M200, the Panasonic S5 II, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
2.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
3.		Canon M50 Mark II	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
4.		Canon 250D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon G5 X Mark II	2360	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
6.		Canon G7 X Mark III	none	n	3.0 / 1040	tilting	Y	1/2000s	30/s	Y	Y
7.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
8.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
9.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
10.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
11.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
12.		Fujifilm XF10	none	n	3.0 / 1040	fixed	Y	1/4000s	6.0/s	Y	n
13.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
14.		Panasonic GH6	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
15.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
16.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
17.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M200 has one, while the S5 II does not. While the built-in flash of the M200 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic S5 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M200 and the S5 II write their files to SDXC cards. The S5 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M200 only has one slot. The S5 II supports UHS-II cards (on both slots), while the M200 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M200 and Panasonic Lumix DC-S5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon M50 Mark II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon 250D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
5.		Canon G5 X Mark II	-	stereo / mono	-	-	micro	3.1	Y	-	Y
6.		Canon G7 X Mark III	-	stereo / mono	Y	-	micro	3.1	Y	-	Y
7.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
9.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Fujifilm XF10	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
13.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic GH6	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
16.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
17.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y

It is notable that the S5 II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M200 lacks such a headphone port.

The S5 II is a recent model that features in the current product line-up of Panasonic. In contrast, the M200 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the M200 from Canon. Further information on the features and operation of the M200 and S5 II can be found, respectively, in the Canon M200 Manual (free pdf) or the online Panasonic S5 II Manual.

Review summary

So what is the bottom line? Is the Canon M200 better than the Panasonic S5 II or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M200:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More compact: Is smaller (108x67mm vs 134x102mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 441g or 60 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2019).

Reasons to prefer the Panasonic Lumix DC-S5 II:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (6K/30p vs 4k/25p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 6.1 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (370 versus 315) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 3 years and 3 months of technical progress since the M200 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the S5 II is the clear winner of the contest (26 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M200 and the Panasonic S5 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M200 and the S5 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549	ebay.com
2.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	1,999	amazon.com
3.		Canon M50 Mark II	4/5	..	4/5	..	4.5/5	3.5/5	Oct 2020	599	ebay.com
4.		Canon 250D	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	599	amazon.com
5.		Canon G5 X Mark II	4/5	+	4/5	82/100	..	4/5	Jul 2019	899	ebay.com
6.		Canon G7 X Mark III	..	+ +	4/5	81/100	4/5	..	Jul 2019	749	amazon.com
7.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
8.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	399	amazon.com
9.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
10.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
11.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
12.		Fujifilm XF10	..	..	4/5	75/100	4/5	4.5/5	Jul 2018	499	ebay.com
13.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	1,899	amazon.com
14.		Panasonic GH6	5/5	+ +	5/5	87/100	5/5	5/5	Feb 2022	2,199	amazon.com
15.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	1,999	amazon.com
16.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	1,699	ebay.com
17.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	1,999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M200 offers at
ebay.com
Check S5 II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M200 offers at
ebay.com
Check S5 II price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
