Canon M200 vs Olympus XZ-1
The Canon EOS M200 and the Olympus XZ-1 are two digital cameras that were revealed to the public, respectively, in September 2019 and January 2011. The M200 is a mirrorless interchangeable lens camera, while the XZ-1 is a fixed lens compact. The cameras are based on an APS-C (M200) and a 1/1.7-inch (XZ-1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 10.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M200 and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

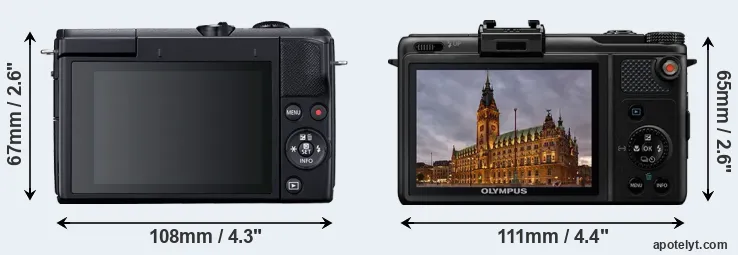

The physical size and weight of the Canon M200 and the Olympus XZ-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M200 and the Olympus XZ-1 are of equal size. In this context, it is worth noting that neither the M200 nor the XZ-1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the M200 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M200||108 mm||67 mm||35 mm||299 g||315||n||Sep 2019||549||amazon.com|
|2.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499||ebay.com|
|3.||Canon M50 Mark II||116 mm||88 mm||59 mm||387 g||305||n||Oct 2020||599||amazon.com|
|4.||Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599||amazon.com|
|5.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779||ebay.com|
|6.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399||amazon.com|
|7.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|8.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549||amazon.com|
|9.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|10.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|11.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|12.||Fujifilm XF10||113 mm||64 mm||41 mm||279 g||330||n||Jul 2018||499||ebay.com|
|13.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599||ebay.com|
|14.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|15.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||ebay.com|
|16.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599||ebay.com|
|17.||Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XZ-1 was launched at a lower price than the M200, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon M200 features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the M200 has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.

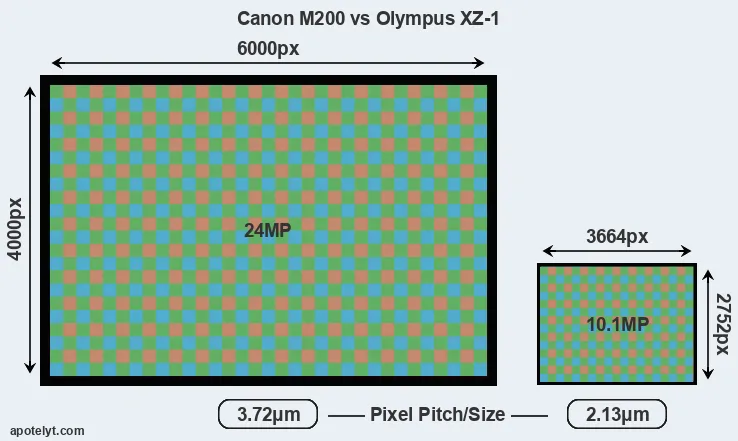

With 24MP, the M200 offers a higher resolution than the XZ-1 (10.1MP), but the M200 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the M200 is a much more recent model (by 8 years and 8 months) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.
The M200 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M200 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).
In terms of underlying technology, the M200 is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|3.||Canon M50 Mark II||APS-C||24.0||6000||4000||4K/24p||24.0||13.6||1939||83|
|14.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|15.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|16.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M200 provides a higher video resolution than the XZ-1. It can shoot video footage at 4k/25p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The M200 and the XZ-1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Canon M200, the Olympus XZ-1, and comparable cameras.
|1.||Canon M200||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|2.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0/s||Y||Y|
|3.||Canon M50 Mark II||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|4.||Canon SL3||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon M50||2360||n||3.0 / 1040||swivel||Y||1/4000s||10.0/s||Y||n|
|6.||Canon SX740||none||n||3.0 / 922||tilting||n||1/3200s||10.0/s||Y||Y|
|7.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|8.||Canon SX70||2360||n||3.0 / 922||swivel||n||1/2000s||10.0/s||Y||Y|
|9.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|10.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|11.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|12.||Fujifilm XF10||none||n||3.0 / 1040||fixed||Y||1/4000s||6.0/s||Y||n|
|13.||Olympus XZ-2||optional||n||3.0 / 920||tilting||Y||1/2000s||5.0/s||Y||Y|
|14.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|15.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5/s||n||Y|
|16.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0/s||Y||Y|
|17.||Panasonic LX5||optional||n||3.0 / 460||fixed||n||1/4000s||2.5/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M200 has a touchscreen, while the XZ-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The M200 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the XZ-1 does not have a selfie-screen.
The Olympus XZ-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M200 and the XZ-1 write their files to SDXC cards. The M200 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M200 and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M200||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|2.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
|3.||Canon M50 Mark II||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon SL3||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|5.||Canon M50||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|6.||Canon SX740||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|7.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|8.||Canon SX70||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|9.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|10.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|11.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Fujifilm XF10||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|13.||Olympus XZ-2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic LX5||Y||mono / mono||-||-||mini||2.0||-||-||-|
It is notable that the M200 offers wifi support, while the XZ-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The M200 is a recent model that features in the current product line-up of Canon. In contrast, the XZ-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the XZ-1 was succeeded by the Olympus XZ-2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M200 or the Olympus XZ-1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS M200:
- More detail: Offers more megapixels (24 vs 10.1MP) with a 57% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4k/25p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 614k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (6.1 vs 2 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 8 years and 8 months of technical progress since the XZ-1 launch.
Reasons to prefer the Olympus XZ-1:
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has an integrated lens, whereas the M200 necessitates an extra lens.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the M200).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in January 2011).
If the count of relative strengths (bullet points above) is taken as a measure, the M200 is the clear winner of the match-up (18 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M200 and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the M200 or the XZ-1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M200||..||+||3/5||79/100||4/5||4/5||Sep 2019||549||amazon.com|
|2.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499||ebay.com|
|3.||Canon M50 Mark II||4/5||..||4/5||..||4.5/5||3.5/5||Oct 2020||599||amazon.com|
|4.||Canon SL3||..||o||4.5/5||79/100||4/5||4/5||Apr 2019||599||amazon.com|
|5.||Canon M50||..||+||4/5||79/100||..||3.5/5||Feb 2018||779||ebay.com|
|6.||Canon SX740||..||+||3.5/5||..||4/5||4/5||Jul 2018||399||amazon.com|
|7.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|8.||Canon SX70||..||+ +||3.5/5||..||3.5/5||3.5/5||Sep 2018||549||amazon.com|
|9.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|10.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|11.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|12.||Fujifilm XF10||..||..||4/5||75/100||4/5||4.5/5||Jul 2018||499||ebay.com|
|13.||Olympus XZ-2||4/5||+||..||..||4.5/5||4.5/5||Sep 2012||599||ebay.com|
|14.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|15.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499||ebay.com|
|16.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599||ebay.com|
|17.||Panasonic LX5||4/5||+||..||73/100||4.5/5||4.5/5||Jul 2010||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 5D Mark II vs Canon M200
- Canon G5 X Mark II vs Olympus XZ-1
- Canon M200 vs Canon M50
- Canon M200 vs Fujifilm X-T10
- Canon M200 vs Nikon D5
- Canon M200 vs Panasonic TZ100
- Canon M200 vs Sony HX350
- Canon SL1 vs Olympus XZ-1
- Canon T3 vs Olympus XZ-1
- Fujifilm X-T100 vs Olympus XZ-1
- Fujifilm XQ1 vs Olympus XZ-1
- Leica M Typ 240 vs Olympus XZ-1
Specifications: Canon M200 vs Olympus XZ-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M200||Olympus XZ-1|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||28-112mm f/1.8-2.5|
|Launch Date||September 2019||January 2011|
|Launch Price||USD 549||USD 499|
|Sensor Specs||Canon M200||Olympus XZ-1|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.3 x 14.9 mm||7.85 x 5.89 mm|
|Sensor Area||332.27 mm2||46.2365 mm2|
|Sensor Diagonal||26.8 mm||9.8 mm|
|Sensor Resolution||24 Megapixels||10.1 Megapixels|
|Image Resolution||6000 x 4000 pixels||3664 x 2752 pixels|
|Pixel Pitch||3.72 μm||2.13 μm|
|Pixel Density||7.22 MP/cm2||21.81 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4k/25p Video||720/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 8||TruePic V|
|DXO Sensor Quality (score)||..||34|
|DXO Color Depth (bits)||..||18.8|
|DXO Dynamic Range (EV)||..||10.4|
|DXO Low Light (ISO)||..||117|
|Screen Specs||Canon M200||Olympus XZ-1|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||614k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M200||Olympus XZ-1|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6.1 shutter flaps/s||2 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M200||Olympus XZ-1|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon M200||Olympus XZ-1|
|Battery Life (CIPA)||315 shots per charge||320 shots per charge|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
111 x 65 x 42 mm
(4.4 x 2.6 x 1.7 in)
|Camera Weight||299 g (10.5 oz)||275 g (9.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
