Canon M100 vs YI M1
The Canon EOS M100 and the YI M1 are two digital cameras that were officially introduced, respectively, in August 2017 and September 2016. Both the M100 and the M1 are mirrorless interchangeable lens cameras that are based on an APS-C (M100) and a Four Thirds (M1) sensor. The Canon has a resolution of 24 megapixels, whereas the YI provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon M100||YI M1|
|Mirrorless system camera||Mirrorless system camera|
|Canon EF-M mount lenses||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|1080/60p Video||4K/30p Video|
|ISO 100-25,600||ISO 100-25,600|
|No viewfinder, LCD framing||No viewfinder, LCD framing|
|3.0 LCD, 1040k dots||3.0 LCD, 1040k dots|
|Tilting touchscreen||Fixed touchscreen|
|6.1 shutter flaps per second||5 shutter flaps per second|
|295 shots per battery charge||450 shots per battery charge|
|108 x 67 x 35 mm, 302 g||114 x 64 x 34 mm, 281 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

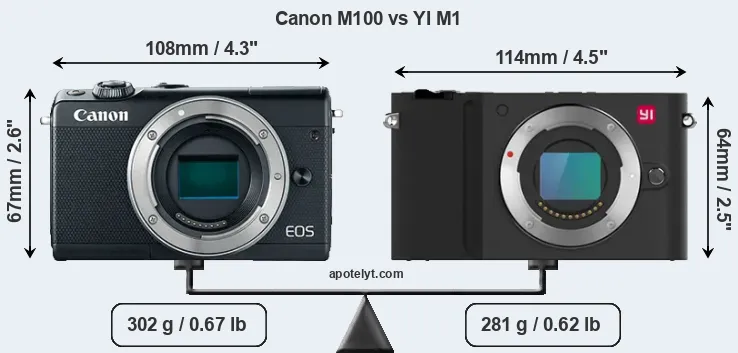

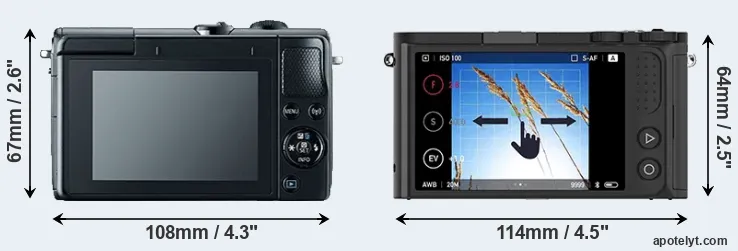

An illustration of the physical size and weight of the Canon M100 and the YI M1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The M100 can be obtained in two different colors (black, white), while the M1 is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M100 and the YI M1 are of equal size. However, the M1 is markedly lighter (7 percent) than the M100. In this context, it is worth noting that neither the M100 nor the M1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon M100||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499|
|YI M1||4.5 in||2.5 in||1.3 in||9.9 oz||450||n||Sep 2016||349|
|Canon M200||4.3 in||2.6 in||1.4 in||10.5 oz||315||n||Sep 2019||549|
|Canon M50||4.6 in||3.5 in||2.3 in||13.8 oz||235||n||Feb 2018||779|
|Canon T7||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449|
|Canon G9 X Mark II||3.9 in||2.3 in||1.2 in||7.3 oz||235||n||Jan 2017||529|
|Canon M6||4.4 in||2.7 in||1.8 in||13.8 oz||295||n||Feb 2017||779|
|Canon SL2||4.8 in||3.7 in||2.8 in||16.0 oz||650||n||Jun 2017||549|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon M5||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979|
|Canon M3||4.4 in||2.7 in||1.7 in||12.9 oz||250||n||Feb 2015||679|
|Canon M10||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499|
|Canon M||4.3 in||2.6 in||1.3 in||10.5 oz||230||n||Jul 2012||599|
|Fujifilm X-A3||4.6 in||2.6 in||1.6 in||12.0 oz||410||n||Aug 2016||399|
|Nikon 1 J5||3.9 in||2.4 in||1.3 in||8.1 oz||250||n||Apr 2015||399|
|Panasonic GX850||4.2 in||2.6 in||1.3 in||9.5 oz||210||n||Jan 2017||549|
|Panasonic GF7||4.2 in||2.6 in||1.3 in||9.4 oz||230||n||Jan 2015||499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M1 was launched at a markedly lower price (by 30 percent) than the M100, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

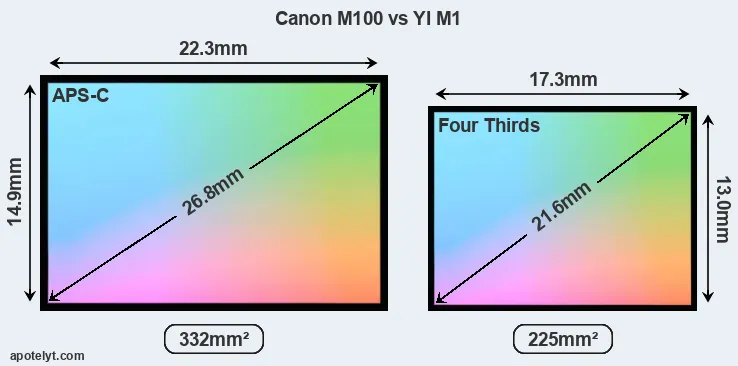

Of the two cameras under consideration, the Canon M100 features an APS-C sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M100 has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.

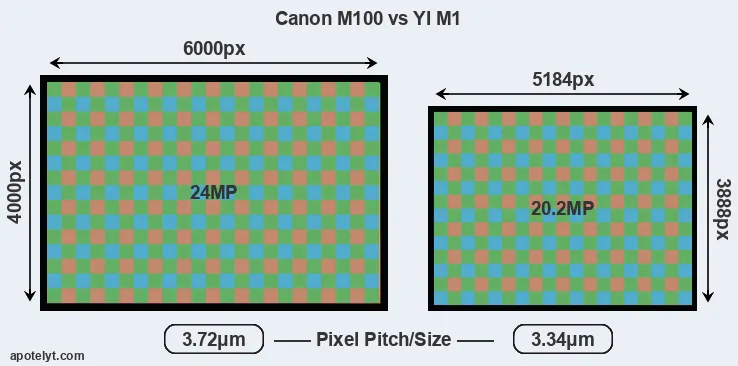

With 24MP, the M100 offers a higher resolution than the M1 (20.2MP), but the M100 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the M1) due to its larger sensor. Moreover, the M100 is a somewhat more recent model (by 11 months) than the M1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the YI M1 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The YI M1 offers exactly the same ISO settings.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|YI M1||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|Panasonic GX850||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M1 provides a better video resolution than the M100. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The M100 and the M1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon M100 and YI M1 along with similar information for a selection of comparators.
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|Nikon 1 J5||none||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The M100 has one, while the M1 does not. While the built-in flash of the M100 is not very powerful, it can at times be useful as a fill-in light.The M100 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the M1 does not have a selfie-screen.
The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M100 and the M1 write their files to SDXC cards. The M100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Nikon 1 J5||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the M1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The M100 does not feature such an accessory-socket.
The M1 is a recent model that features in the current product line-up of YI. In contrast, the M100 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the M100 was succeeded by the Canon M200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and YI websites.
So what conclusions can be drawn? Is the Canon M100 better than the YI M1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS M100:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.1 vs 5 flaps/sec) to capture the decisive moment.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Is somewhat more recent (announced 11 months after the M1).
Advantages of the YI M1:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (450 versus 295) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2016).
If the count of relative strengths (bullet points above) is taken as a measure, the M100 is the clear winner of the match-up (13 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M100 and the YI M1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M100 or the M1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon M100||+||..||4/5||..||3.5/5||Aug 2017||499|
|YI M1||..||69/100||..||2.5/5||..||Sep 2016||349|
|Canon M200||+||79/100||4/5||..||4/5||Sep 2019||549|
|Canon M50||+||79/100||..||4/5||3.5/5||Feb 2018||779|
|Canon T7||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon G9 X Mark II||..||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529|
|Canon M6||..||80/100||4/5||4.5/5||4/5||Feb 2017||779|
|Canon SL2||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon M5||+||82/100||4/5||4.5/5||4/5||Sep 2016||979|
|Canon M3||o||75/100||4.5/5||4.5/5||4/5||Feb 2015||679|
|Canon M10||..||..||..||o||4/5||Oct 2015||499|
|Canon M||+||..||4/5||3.5/5||4/5||Jul 2012||599|
|Fujifilm X-A3||..||74/100||4.5/5||..||4/5||Aug 2016||399|
|Nikon 1 J5||..||..||4.5/5||4/5||4.5/5||Apr 2015||399|
|Panasonic GX850||+||76/100||4.5/5||4/5||4.5/5||Jan 2017||549|
|Panasonic GF7||+||..||4.5/5||4.5/5||4.5/5||Jan 2015||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M100 vs YI M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M100||YI M1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2017||September 2016|
|Launch Price||USD 499||USD 349|
|Sensor Specs||Canon M100||YI M1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.72 μm||3.34 μm|
|Pixel Density||7.22 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 25,600 ISO|
|DXO Sensor Quality (score)||78||..|
|DXO Color Depth (bits)||23.5||..|
|DXO Dynamic Range (EV)||12.9||..|
|DXO Low Light (ISO)||1272||..|
|Screen Specs||Canon M100||YI M1|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Canon M100||YI M1|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||6.1 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M100||YI M1|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon M100||YI M1|
|Battery Life (CIPA)||295 shots per charge||450 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
114 x 64 x 34 mm
(4.5 x 2.5 x 1.3 in)
|Camera Weight||302 g (10.7 oz)||281 g (9.9 oz)|
