Canon M100 vs Sony A77 II

The Canon EOS M100 and the Sony Alpha SLT-A77 II are two digital cameras that were announced, respectively, in August 2017 and May 2014. The M100 is a mirrorless interchangeable lens camera, while the A77 II is a DSLR. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M100		Sony A77 II
Mirrorless system camera		Digital single lens reflex
Canon EF-M mount lenses		Sony A mount lenses
24 MP – APS-C sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 100-25,600		ISO 100-25,600 (50 - 51,200)
No viewfinder, LCD framing		Electronic viewfinder (2359k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1229k dots
Tilting touchscreen		Fully flexible screen (no touchscreen)
6.1 shutter flaps per second		12 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
295 shots per battery charge		480 shots per battery charge
108 x 67 x 35 mm, 302 g		143 x 104 x 81 mm, 647 g

Check M100 offers at
ebay.com
Check A77 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M100 and the Sony Alpha SLT-A77 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

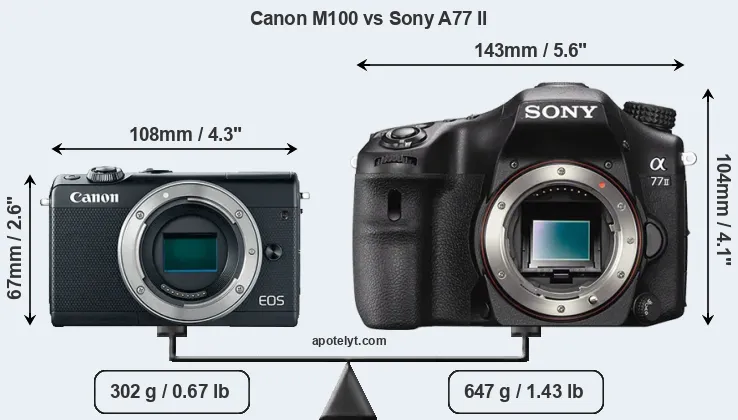

An illustration of the physical size and weight of the Canon M100 and the Sony A77 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The M100 can be obtained in two different colors (black, white), while the A77 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 II is considerably larger (106 percent) than the Canon M100. Moreover, the A77 II is substantially heavier (114 percent) than the M100. It is noteworthy in this context that the A77 II is splash and dust-proof, while the M100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M100 gets 295 shots out of its Canon LP-E12 battery, while the A77 II can take 480 images on a single charge of its Sony NP-FM500H power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
2.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	1,199	ebay.com
3.		Canon M200	108 mm	67 mm	35 mm	299 g	315	n	Sep 2019	549	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	779	ebay.com
5.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
8.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
9.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
10.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
11.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
12.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
13.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	1,199	ebay.com
14.		Sony A6600	120 mm	67 mm	69 mm	503 g	810	Y	Aug 2019	1,399	amazon.com
15.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	699	ebay.com
16.		Sony A58	129 mm	95 mm	78 mm	492 g	690	n	Feb 2013	599	ebay.com
17.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	1,399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M100 was launched at a markedly lower price (by 58 percent) than the A77 II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A77 II is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (M100) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the A77 II has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the A77 II has a lower pixel density and larger individual pixels (with a pixel pitch of 3.91μm versus 3.72μm for the M100), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the M100 is much more recent (by 3 years and 3 months) than the A77 II, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The M100 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M100 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sony Alpha SLT-A77 II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the A77 II has a markedly higher DXO score than the M100 (overall score 4 points higher), which will translate into better image quality. The advantage is based on 0.9 bits higher color depth, 0.5 EV in additional dynamic range, and 0.3 stops of reduced low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
2.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
3.		Canon M200	APS-C	24.0	6000	4000	4k/25p	24.0	13.5	1836	82
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
9.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
10.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
11.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
12.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
13.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
14.		Sony A6600	APS-C	24.0	6000	4000	4K/30p	23.8	13.4	1497	82
15.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
16.		Sony A58	APS-C	19.8	5456	3632	1080/60i	23.3	12.5	753	74
17.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the A77 II has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M100 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon M100 and Sony A77 II along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
2.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
3.		Canon M200	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
11.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
12.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
13.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
14.		Sony A6600	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	n	Y
15.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
16.		Sony A58	1440	n	2.7 / 460	tilting	n	1/4000s	5.0/s	Y	Y
17.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M100 has a touchscreen, while the A77 II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The M100 writes its imaging data to SDXC cards, while the A77 II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M100 and Sony Alpha SLT-A77 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
3.		Canon M200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
14.		Sony A6600	Y	stereo / mono	Y	Y	YES	2.0	Y	Y	Y
15.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-
16.		Sony A58	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the A77 II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The M100 does not feature such a mic input.

Studio photographers will appreciate that the Sony A77 II (unlike the M100) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the M100 and the A77 II have been discontinued, but can regularly be found used on ebay. The M100 was replaced by the Canon M200, while the A77 II does not have a direct successor. Further information on the features and operation of the M100 and A77 II can be found, respectively, in the Canon M100 Manual (free pdf) or the online Sony A77 II Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon M100 and the Sony A77 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS M100:

• Better low-light sensitivity: Requires less light for good images (0.3 stops ISO advantage).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More compact: Is smaller (108x67mm vs 143x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 345g or 53 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More modern: Reflects 3 years and 3 months of technical progress since the A77 II launch.

Arguments in favor of the Sony Alpha SLT-A77 II:

• Better image quality: Scores markedly higher (4 points) in the DXO overall evaluation.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 1040k dots).
• More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 6.1 flaps/sec) to capture the decisive moment.
• Longer lasting: Gets more shots (480 versus 295) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in May 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the A77 II is the clear winner of the contest (14 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M100 and the Sony A77 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M100 and the A77 II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
2.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	1,199	ebay.com
3.		Canon M200	..	+	3/5	79/100	4/5	4/5	Sep 2019	549	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	779	ebay.com
5.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
8.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
9.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
10.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
11.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
12.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
13.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	1,199	ebay.com
14.		Sony A6600	4/5	+	4/5	83/100	4.5/5	4/5	Aug 2019	1,399	amazon.com
15.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	699	ebay.com
16.		Sony A58	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	599	ebay.com
17.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	1,399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M100 offers at
ebay.com
Check A77 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check M100 offers at
ebay.com
Check A77 II offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
