Canon M10 vs Sony RX1R II

The Canon EOS M10 and the Sony Cyber-shot DSC-RX1R II are two digital cameras that were announced in October 2015. The M10 is a mirrorless interchangeable lens camera, while the RX1R II is a fixed lens compact. The cameras are based on an APS-C (M10) and a full frame (RX1R II) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Sony provides 42.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		Sony RX1R II
Mirrorless system camera		Fixed lens compact camera
Canon EF-M mount lenses		35mm f/2.0
17.9 MP – APS-C sensor		42.2 MP – Full Frame sensor
1080/30p Video		1080/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-25,600 (50 - 102,400)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1229k dots
Tilting touchscreen		Tilting screen (no touchscreen)
4.6 shutter flaps per second		5 shutter flaps per second
255 shots per battery charge		220 shots per battery charge
108 x 67 x 35 mm, 301 g		113 x 65 x 72 mm, 507 g

Check M10 offers at
ebay.com
Check RX1R II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Sony Cyber-shot DSC-RX1R II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

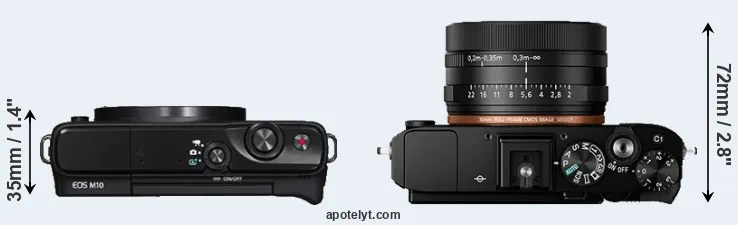

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon M10 and the Sony RX1R II. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the RX1R II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX1R II is somewhat larger (2 percent) than the Canon M10. In this context, it is worth noting that neither the M10 nor the RX1R II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the RX1R II has a lens built in, whereas the M10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the M10 gets 255 shots out of its Canon LP-E12 battery, while the RX1R II can take 220 images on a single charge of its Sony NP-BX1 power pack. The power pack in the RX1R II can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
2.		Sony RX1R II	113 mm	65 mm	72 mm	507 g	220	n	Oct 2015	3,299	ebay.com
3.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
4.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	3,699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
8.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
9.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
10.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
11.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
12.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
13.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
14.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	4,249	ebay.com
15.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
16.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	2,799	ebay.com
17.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	2,799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Sony RX1R II a full frame sensor. The sensor area in the RX1R II is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 42.2MP, the RX1R II offers a higher resolution than the M10 (17.9MP), but the RX1R II nevertheless has larger individual pixels (pixel pitch of 4.50μm versus 4.31μm for the M10) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the RX1R II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony RX1R II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX1R II for good quality output (200 dots per inch) amounts to 39.8 x 26.5 inches or 101 x 67.4 cm, for very good quality (250 dpi) 31.8 x 21.2 inches or 80.8 x 53.9 cm, and for excellent quality (300 dpi) 26.5 x 17.7 inches or 67.3 x 44.9 cm. The corresponding values for the Canon M10 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Cyber-shot DSC-RX1R II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-102400.

In terms of underlying technology, the M10 is build around a CMOS sensor, while the RX1R II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the RX1R II offers substantially better image quality than the M10 (overall score 32 points higher). The advantage is based on 3.6 bits higher color depth, 2.5 EV in additional dynamic range, and 2.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		Sony RX1R II	Full Frame	42.2	7952	5304	1080/60p	25.8	13.9	3204	97
3.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
4.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
6.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
9.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
10.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
12.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
13.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
14.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
15.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
16.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
17.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the RX1R II provides a faster frame rate than the M10. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the RX1R II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M10, the Sony RX1R II, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		Sony RX1R II	2360	n	3.0 / 1229	tilting	n	1/4000s	5.0/s	n	n
3.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
4.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
6.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
9.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
10.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
12.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
13.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
14.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
15.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
16.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The M10 has one, while the RX1R II does not. While the built-in flash of the M10 is not very powerful, it can at times be useful as a fill-in light.

The M10 writes its imaging data to SDXC cards, while the RX1R II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Sony Cyber-shot DSC-RX1R II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Sony RX1R II	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
3.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
6.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
14.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the RX1R II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The M10 does not feature such a mic input.

Both the M10 and the RX1R II have been discontinued, but can regularly be found used on ebay. The M10 was replaced by the Canon M100, while the RX1R II does not have a direct successor. Further information on the features and operation of the M10 and RX1R II can be found, respectively, in the Canon M10 Manual (free pdf) or the online Sony RX1R II Manual.

Review summary

So how do things add up? Is the Canon M10 better than the Sony RX1R II or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS M10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (255 versus 220) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.

Reasons to prefer the Sony Cyber-shot DSC-RX1R II:

• More detail: Has more megapixels (42.2 vs 17.9MP), which boosts linear resolution by 53%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (32 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (3.6 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.1 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 1040k dots).
• Ready to shoot: Has an integrated lens, whereas the M10 necessitates an extra lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.

If the count of individual advantages (bullet points above) is taken as a guide, the RX1R II is the clear winner of the contest (13 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the Sony RX1R II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M10 and the RX1R II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
2.		Sony RX1R II	5/5	..	..	82/100	..	4.5/5	Oct 2015	3,299	ebay.com
3.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
4.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	3,699	ebay.com
6.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	3,699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
8.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
9.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
10.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
11.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
12.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
13.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
14.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	4,249	ebay.com
15.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
16.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	2,799	ebay.com
17.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	2,799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
