Canon M10 vs Pentax 645D
The Canon EOS M10 and the Pentax 645D are two digital cameras that were announced, respectively, in October 2015 and March 2010. The M10 is a mirrorless interchangeable lens camera, while the 645D is a DSLR. The cameras are based on an APS-C (M10) and a medium format (645D) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 39.5 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Pentax 645D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

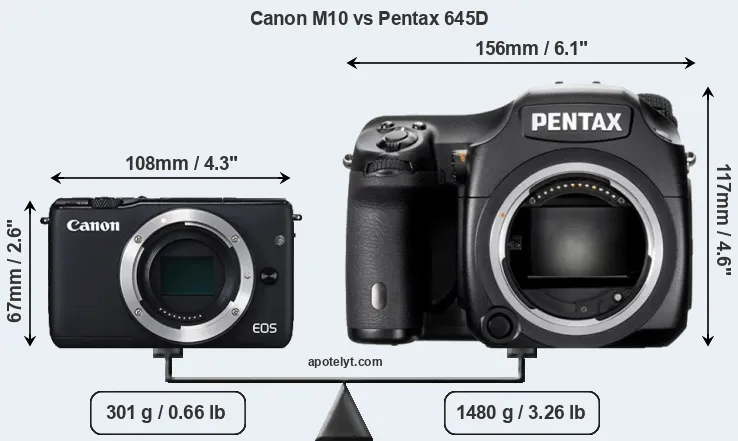

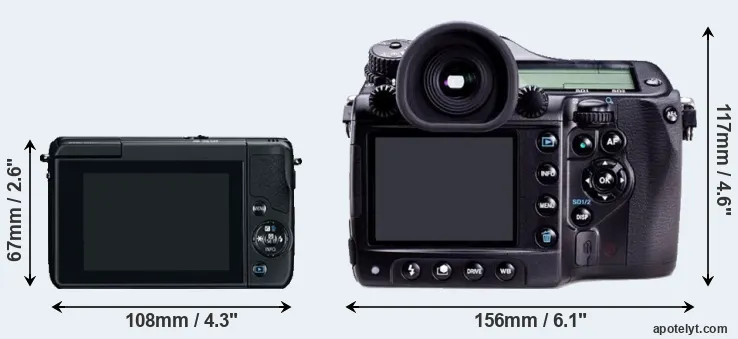

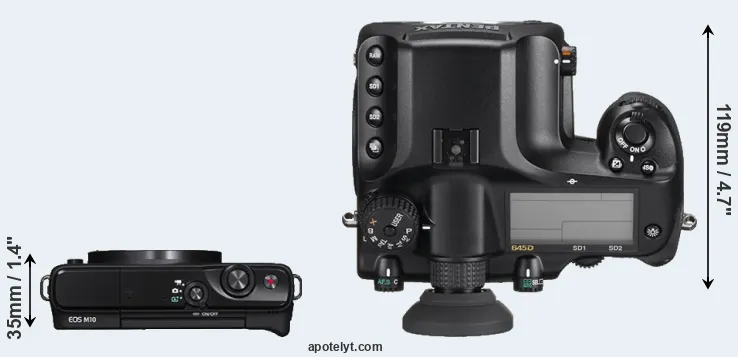

An illustration of the physical size and weight of the Canon M10 and the Pentax 645D is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The M10 can be obtained in two different colors (black, white), while the 645D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645D is considerably larger (152 percent) than the Canon M10. Moreover, the 645D is substantially heavier (392 percent) than the M10. It is noteworthy in this context that the 645D is splash and dust-proof, while the M10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|2.||Pentax 645D||156 mm||117 mm||119 mm||1480 g||800||Y||Mar 2010||9,995|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|4.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|5.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|6.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|7.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|8.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|9.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|11.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|12.||Canon 1D X||158 mm||168 mm||83 mm||1551 g||1120||Y||Oct 2011||6,799|
|13.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|14.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950|
|15.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199|
|16.||Pentax 645Z||156 mm||117 mm||123 mm||1550 g||650||Y||Apr 2014||8,499|
|17.||Sony A5000||110 mm||63 mm||36 mm||269 g||420||n||Jan 2014||449|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M10 was launched at a markedly lower price (by 95 percent) than the 645D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

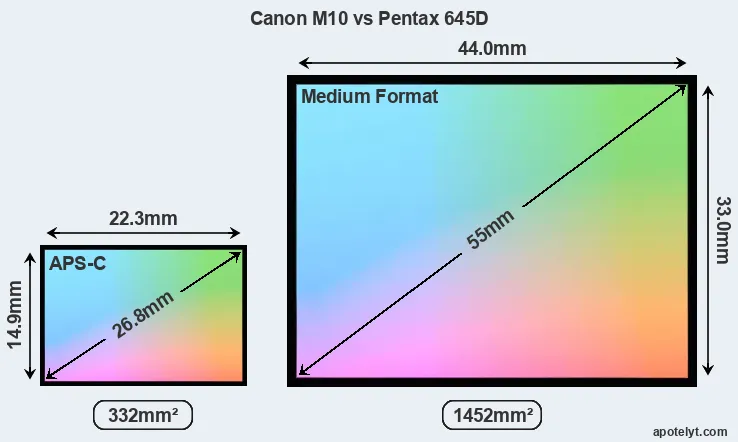

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Pentax 645D a medium format sensor. The sensor area in the 645D is 337 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 0.79. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the 645D offers a 4:3 aspect.

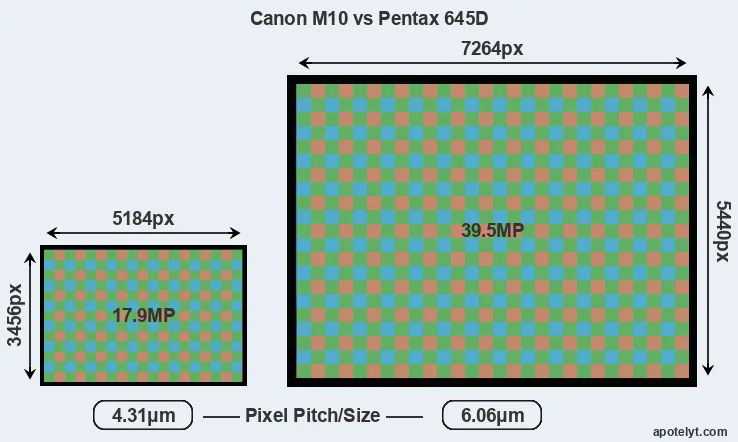

With 39.5MP, the 645D offers a higher resolution than the M10 (17.9MP), but the 645D nevertheless has larger individual pixels (pixel pitch of 6.06μm versus 4.31μm for the M10) due to its larger sensor. However, the M10 is a much more recent model (by 5 years and 7 months) than the 645D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645D has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Canon M10 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax 645D are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the 645D offers substantially better image quality than the M10 (overall score 17 points higher). The advantage is based on 2.4 bits higher color depth, 1.2 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Pentax 645D||Medium Format||39.5||7264||5440||none||24.6||12.6||1262||82|
|4.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|6.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|7.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|12.||Canon 1D X||Full Frame||17.9||5184||3456||1080/30p||23.8||11.8||2786||82|
|13.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|14.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|15.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|16.||Pentax 645Z||Medium Format||51.1||8256||6192||1080/60i||26.0||14.7||4505||101|
Many modern cameras are not only capable of taking still images, but can also record movies. The M10 indeed provides movie recording capabilities, while the 645D does not. The highest resolution format that the M10 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 645D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M10, the Pentax 645D, and comparable cameras.
|4.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|6.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|7.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|10.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|12.||Canon 1D X||optical||Y||3.2||1040||fixed||n||1/8000s||14.0||n||n|
|13.||Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
|14.||Leica S Typ 006||optical||Y||3.0||922||fixed||n||1/4000s||1.5||n||n|
One difference between the cameras concerns the presence of an on-board flash. The M10 has one, while the 645D does not. While the built-in flash of the M10 is not very powerful, it can at times be useful as a fill-in light.The M10 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the 645D does not have a selfie-screen.
The Pentax 645D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M10 and the 645D write their files to SDXC cards. The 645D features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10 only has one slot. The M10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 645D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Pentax 645D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|7.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|12.||Canon 1D X||Y||mono||-||Y||-||mini||2.0||-||-||-|
|13.||Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
|14.||Leica S Typ 006||Y||-||-||-||-||mini||2.0||-||-||-|
It is notable that the M10 offers wifi support, while the 645D does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Pentax 645D (unlike the M10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the M10 and the 645D have been discontinued, but can regularly be found used on eBay. The 645D was replaced by the Pentax 645Z, while the M10 was followed by the Canon M100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M10 or the Pentax 645D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS M10:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (4.6 vs 1.1 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (108x67mm vs 156x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 1179g or 80 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (95 percent cheaper at launch).
- More modern: Reflects 5 years and 7 months of technical progress since the 645D launch.
Arguments in favor of the Pentax 645D:
- More detail: Has more megapixels (39.5 vs 17.9MP), which boosts linear resolution by 46%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (800 versus 255) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in March 2010).
If the count of individual advantages (bullet points above) is taken as a guide, the M10 emerges as the winner of the contest (17 : 15 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M10 and the Pentax 645D place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M10 and the 645D in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|2.||Pentax 645D||5/5||..||..||..||..||Mar 2010||9,995|
|3.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|4.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|5.||Canon M5||4/5||+||82/100||4/5||4/5||Sep 2016||979|
|6.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|7.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|8.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|9.||Canon 1200D||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|10.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|11.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|12.||Canon 1D X||5/5||..||..||4.5/5||4.5/5||Oct 2011||6,799|
|13.||Canon 1D Mark IV||5/5||..||89/100||..||..||Oct 2009||4,999|
|14.||Leica S Typ 006||..||..||..||..||..||Sep 2012||21,950|
|15.||Nikon D3S||5/5||..||89/100||4.5/5||5/5||Oct 2009||5,199|
|16.||Pentax 645Z||5/5||..||..||4.5/5||5/5||Apr 2014||8,499|
|17.||Sony A5000||3/5||+||..||4.5/5||4.5/5||Jan 2014||449|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M10 vs Pentax 645D
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M10||Pentax 645D|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Canon EF-M mount lenses||Pentax 645 mount lenses|
|Launch Date||October 2015||March 2010|
|Launch Price||USD 499||USD 9,995|
|Sensor Specs||Canon M10||Pentax 645D|
|Sensor Format||APS-C Sensor||Medium Format Sensor|
|Sensor Size||22.3 x 14.9 mm||44.0 x 33.0 mm|
|Sensor Area||332.27 mm2||1452 mm2|
|Sensor Diagonal||26.8 mm||55 mm|
|Sensor Resolution||17.9 Megapixels||39.5 Megapixels|
|Image Resolution||5184 x 3456 pixels||7264 x 5440 pixels|
|Pixel Pitch||4.31 μm||6.06 μm|
|Pixel Density||5.39 MP/cm2||2.72 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||PRIME II|
|DXO Sensor Quality (score)||65||82|
|DXO Color Depth (bits)||22.2||24.6|
|DXO Dynamic Range (EV)||11.4||12.6|
|DXO Low Light (ISO)||753||1262|
|Screen Specs||Canon M10||Pentax 645D|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M10||Pentax 645D|
|Focus System||On-Sensor Phase-detect||Phase-detect AF|
|Continuous Shooting||4.6 shutter flaps/s||1.1 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||50 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M10||Pentax 645D|
|External Flash||no Hotshoe||Hotshoe|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon M10||Pentax 645D|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||255 shots per charge||800 shots per charge|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
156 x 117 x 119 mm
(6.1 x 4.6 x 4.7 in)
|Camera Weight||301 g (10.6 oz)||1480 g (52.2 oz)|
