Canon M10 vs Panasonic GX1

The Canon EOS M10 and the Panasonic Lumix DMC-GX1 are two digital cameras that were announced, respectively, in October 2015 and November 2011. Both the M10 and the GX1 are mirrorless interchangeable lens cameras that are based on an APS-C (M10) and a Four Thirds (GX1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		Panasonic GX1
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Micro Four Thirds lenses
17.9 MP – APS-C sensor		15.8 MP – Four Thirds sensor
1080/30p Video		1080/60p Video
ISO 100-12,800 (100 - 25,600)		ISO 160-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed touchscreen
4.6 shutter flaps per second		4.2 shutter flaps per second
255 shots per battery charge		320 shots per battery charge
108 x 67 x 35 mm, 301 g		116 x 68 x 39 mm, 318 g

Check M10 offers at
ebay.com
Check GX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Panasonic Lumix DMC-GX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

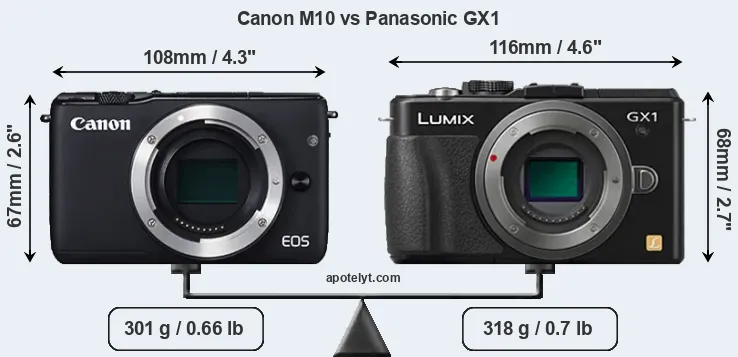

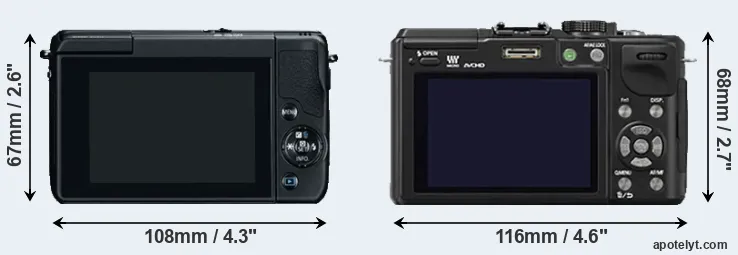

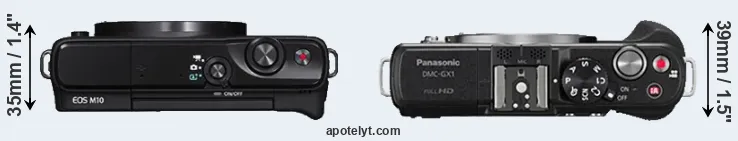

The side-by-side display below illustrates the physical size and weight of the Canon M10 and the Panasonic GX1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the GX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX1 is notably larger (9 percent) than the Canon M10. Moreover, the GX1 is markedly heavier (6 percent) than the M10. In this context, it is worth noting that neither the M10 nor the GX1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M10 gets 255 shots out of its LP-E12 battery, while the GX1 can take 320 images on a single charge of its DMW-BLD10 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
2.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
3.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
4.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
7.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
10.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
11.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
12.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	599	ebay.com
13.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	749	ebay.com
14.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	599	ebay.com
15.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	599	ebay.com
16.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
17.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M10 was launched at a markedly lower price (by 29 percent) than the GX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Panasonic GX1 a Four Thirds sensor. The sensor area in the GX1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the M10 has a native 3:2 aspect ratio, while the one in the GX1 offers a 4:3 aspect.

With 17.9MP, the M10 offers a higher resolution than the GX1 (15.8MP), but the M10 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 3.77μm for the GX1) due to its larger sensor. Moreover, the M10 is a much more recent model (by 3 years and 11 months) than the GX1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic GX1 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The M10 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GX1 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the M10 has a notably higher overall DXO score than the GX1 (overall score 10 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.4 bits higher color depth, 0.8 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
3.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
4.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
10.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
11.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
12.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
13.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
14.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
15.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
16.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
17.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GX1 provides a faster frame rate than the M10. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M10 and the GX1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the GX1 can be equipped with an optional viewfinder – the DMW-LVF2. The table below summarizes some of the other core capabilities of the Canon M10 and Panasonic GX1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
3.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
4.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
7.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
10.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
11.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
12.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
13.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
14.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
15.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
16.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the M10 and the GX1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Panasonic Lumix DMC-GX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the M10 offers wifi support, while the GX1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M10 and the GX1 have been discontinued, but can regularly be found used on ebay. The GX1 was replaced by the Panasonic GX7, while the M10 was followed by the Canon M100. Further information on the features and operation of the M10 and GX1 can be found, respectively, in the Canon M10 Manual (free pdf) or the online Panasonic GX1 Manual.

Review summary

So how do things add up? Is the Canon M10 better than the Panasonic GX1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS M10:

• More detail: Offers more megapixels (17.9 vs 15.8MP) with a 8% higher linear resolution.
• Better image quality: Scores markedly higher (10 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
• More modern: Reflects 3 years and 11 months of technical progress since the GX1 launch.

Reasons to prefer the Panasonic Lumix DMC-GX1:

• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Longer lasting: Gets more shots (320 versus 255) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in November 2011).

If the count of individual advantages (bullet points above) is taken as a guide, the M10 is the clear winner of the match-up (12 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the Panasonic GX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M10 and the GX1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
2.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
3.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
4.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
7.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
10.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
11.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
12.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	599	ebay.com
13.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	749	ebay.com
14.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	599	ebay.com
15.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	599	ebay.com
16.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
17.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
