Canon M10 vs Nikon 1 J5

The Canon EOS M10 and the Nikon 1 J5 are two digital cameras that were announced, respectively, in October 2015 and April 2015. Both the M10 and the J5 are mirrorless interchangeable lens cameras that are based on an APS-C (M10) and an one-inch (J5) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M10		Nikon 1 J5
Mirrorless system camera		Mirrorless system camera
Canon EF-M mount lenses		Nikon 1 mount lenses
17.9 MP – APS-C sensor		20.7 MP – 1" sensor
1080/30p Video		4K/15p Video
ISO 100-12,800 (100 - 25,600)		ISO 160-12,800
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1037k dots
Tilting touchscreen		Tilting touchscreen
4.6 shutter flaps per second		60 shutter flaps per second
255 shots per battery charge		250 shots per battery charge
108 x 67 x 35 mm, 301 g		98 x 60 x 32 mm, 231 g

Check M10 offers at
ebay.com
Check J5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Nikon 1 J5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

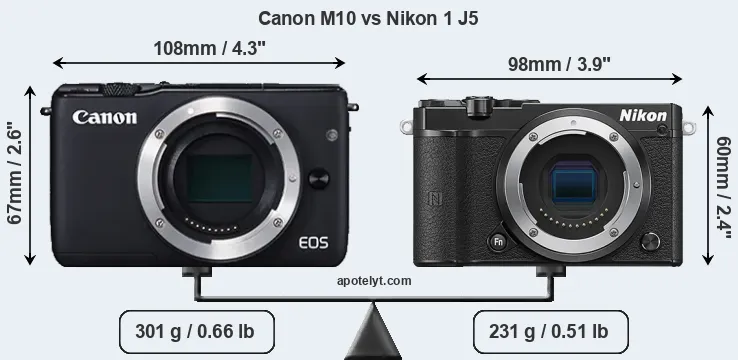

The side-by-side display below illustrates the physical size and weight of the Canon M10 and the Nikon 1 J5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, white), while the J5 is available in three color-versions (black, silver, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 J5 is notably smaller (19 percent) than the Canon M10. Moreover, the J5 is markedly lighter (23 percent) than the M10. In this context, it is worth noting that neither the M10 nor the J5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
2.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	399	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
5.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
6.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
7.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
8.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
9.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
10.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
11.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
12.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	549	ebay.com
13.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	799	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
15.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The J5 was launched at a somewhat lower price (by 20 percent) than the M10, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Nikon 1 J5 an one-inch sensor. The sensor area in the J5 is 65 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the J5 offers a higher resolution of 20.7 megapixels, compared with 17.9 MP of the M10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 4.31μm for the M10). Moreover, it should be noted that the M10 is a somewhat more recent model (by 6 months) than the J5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the J5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Canon M10 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon 1 J5 are ISO 160 to ISO 12800 (no boost).

In terms of underlying technology, the M10 is build around a CMOS sensor, while the J5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
2.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
6.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
7.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
8.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
9.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
10.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
12.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
13.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the J5 provides a better video resolution than the M10. It can shoot movie footage at 4K/15p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The M10 and the J5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon M10 and Nikon 1 J5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
2.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
6.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
7.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
8.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
9.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
10.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
13.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10 and the J5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Nikon 1 J5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
13.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the M10 and the J5 have been discontinued, but can regularly be found used on ebay. The M10 was replaced by the Canon M100, while the J5 does not have a direct successor. Further information on the features and operation of the M10 and J5 can be found, respectively, in the Canon M10 Manual (free pdf) or the online Nikon 1 J5 Manual.

Review summary

So what is the bottom line? Is the Canon M10 better than the Nikon 1 J5 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS M10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Richer colors: Generates images with noticeably better colors (1.1 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
• More modern: Is somewhat more recent (announced 6 months after the J5).

Arguments in favor of the Nikon 1 J5:

• More detail: Has more megapixels (20.7 vs 17.9MP), which boosts linear resolution by 7%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
• Better video: Provides higher definition movie capture (4K/15p vs 1080/30p).
• Faster burst: Shoots at higher frequency (60 vs 4.6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (98x60mm vs 108x67mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 70g or 23 percent) and is thus easier to take along.
• More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in April 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the J5 is the clear winner of the contest (11 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon M10 and the Nikon 1 J5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M10 or the J5. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
2.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	399	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
5.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
6.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
7.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
8.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
9.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
10.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
11.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
12.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	549	ebay.com
13.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	799	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
15.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
