Canon M10 vs Canon R6
The Canon EOS M10 and the Canon EOS R6 are two digital cameras that were revealed to the public, respectively, in October 2015 and July 2020. Both the M10 and the Canon R6 are mirrorless interchangeable lens cameras that are based on an APS-C (M10) and a full frame (Canon R6) sensor. The M10 has a resolution of 17.9 megapixels, whereas the Canon R6 provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M10 and the Canon EOS R6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon M10 and the Canon R6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M10 can be obtained in two different colors (black, white), while the Canon R6 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon R6 is considerably larger (87 percent) than the Canon M10. Moreover, the Canon R6 is substantially heavier (126 percent) than the M10. It is noteworthy in this context that the Canon R6 is splash and dust-proof, while the M10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the M10 gets 255 shots out of its LP-E12 battery, while the Canon R6 can take 360 images on a single charge of its LP-E6NH power pack. The power pack in the Canon R6 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|2.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|3.||Canon R5||138 mm||98 mm||88 mm||738 g||320||Y||Jul 2020||3,899|
|4.||Canon R||139 mm||98 mm||84 mm||660 g||370||Y||Sep 2018||2,299|
|5.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|6.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|7.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|8.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|9.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|10.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|11.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|12.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|13.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|14.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|15.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|16.||Sony A5000||110 mm||63 mm||36 mm||269 g||420||n||Jan 2014||449|
|17.||Sony A99||147 mm||111 mm||78 mm||812 g||500||Y||Sep 2012||2,799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M10 was launched at a markedly lower price (by 80 percent) than the Canon R6, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

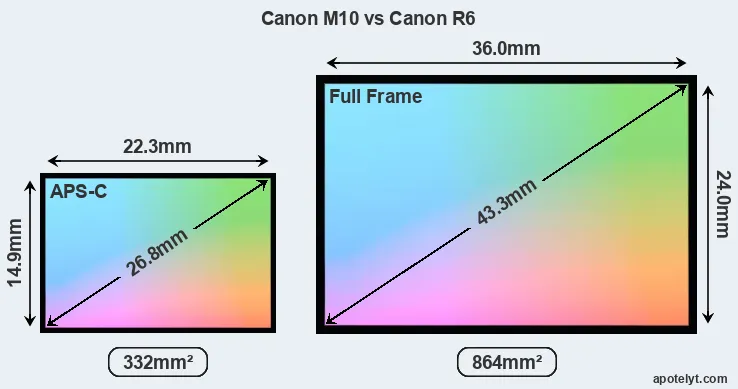

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M10 features an APS-C sensor and the Canon R6 a full frame sensor. The sensor area in the Canon R6 is 160 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the Canon R6 uses a more advanced image processing engine (DIGIC X) than the M10 (DIGIC 6), with benefits for noise reduction, color accuracy, and processing speed.
With 20MP, the Canon R6 offers a higher resolution than the M10 (17.9MP), but the Canon R6 nevertheless has larger individual pixels (pixel pitch of 6.57μm versus 4.31μm for the M10) due to its larger sensor. Moreover, the Canon R6 is a much more recent model (by 4 years and 8 months) than the M10, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon R6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon R6 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon M10 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS M10 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS R6 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-204800.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the Canon R6 offers substantially better image quality than the M10 (overall score 25 points higher). The advantage is based on 2 bits higher color depth, 2.9 EV in additional dynamic range, and 2.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|3.||Canon R5||Full Frame||44.8||8192||5464||8k/30p||25.3||14.6||3042||95|
|4.||Canon R||Full Frame||30.1||6720||4480||4K/30p||24.5||13.5||2742||89|
|7.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|9.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|12.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|15.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|17.||Sony A99||Full Frame||24.0||6000||4000||1080/60p||25.0||14.0||1555||89|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Canon R6 provides a better video resolution than the M10. It can shoot movie footage at 4k/60p, while the M10 is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the Canon R6 has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the M10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon M10 and Canon R6 in connection with corresponding information for a sample of similar cameras.
|7.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|9.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The M10 has one, while the Canon R6 does not. While the built-in flash of the M10 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Canon R6 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon R6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the M10 and the Canon R6 write their files to SDXC cards. The Canon R6 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10 only has one slot. The Canon R6 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M10 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M10 and Canon EOS R6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|7.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|9.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the Canon R6 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The M10 lacks such a headphone port.
The Canon R6 is a recent model that features in the current product line-up of Canon. In contrast, the M10 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the M10 was succeeded by the Canon M100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So how do things add up? Is there a clear favorite between the Canon M10 and the Canon R6? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS M10:
- More compact: Is smaller (108x67mm vs 138x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 379g or 56 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in October 2015).
Reasons to prefer the Canon EOS R6:
- More detail: Has more megapixels (20 vs 17.9MP), which boosts linear resolution by 6%.
- Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2.2 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 6).
- Better video: Provides higher definition movie capture (4k/60p vs 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 4.6 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (360 versus 255) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 8 months of technical progress since the M10 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the Canon R6 is the clear winner of the contest (26 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M10 and the Canon R6 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M10 and the Canon R6 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|2.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|3.||Canon R5||4.5/5||..||91/100||4.5/5||4.5/5||Jul 2020||3,899|
|4.||Canon R||4/5||o||79/100||4.5/5||4/5||Sep 2018||2,299|
|5.||Canon M100||3/5||+||..||4/5||3.5/5||Aug 2017||499|
|6.||Canon T6||4/5||o||73/100||4/5||4/5||Mar 2016||449|
|7.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|8.||Canon M3||4/5||o||75/100||4.5/5||4/5||Feb 2015||679|
|9.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|10.||Canon T5||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|11.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|12.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|13.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|14.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|15.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|16.||Sony A5000||3/5||+||..||4.5/5||4.5/5||Jan 2014||449|
|17.||Sony A99||5/5||..||84/100||4.5/5||4.5/5||Sep 2012||2,799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon M10 vs Canon R6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M10||Canon R6|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Canon EF-M mount lenses||Canon RF mount lenses|
|Launch Date||October 2015||July 2020|
|Launch Price||USD 499||USD 2,499|
|Sensor Specs||Canon M10||Canon R6|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||36.0 x 24.0 mm|
|Sensor Area||332.27 mm2||864 mm2|
|Sensor Diagonal||26.8 mm||43.3 mm|
|Sensor Resolution||17.9 Megapixels||20 Megapixels|
|Image Resolution||5184 x 3456 pixels||5472 x 3648 pixels|
|Pixel Pitch||4.31 μm||6.57 μm|
|Pixel Density||5.39 MP/cm2||2.31 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4k/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 102,400 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 204,800 ISO|
|Image Processor||DIGIC 6||DIGIC X|
|DXO Sensor Quality (score)||65||90|
|DXO Color Depth (bits)||22.2||24.2|
|DXO Dynamic Range (EV)||11.4||14.3|
|DXO Low Light (ISO)||753||3394|
|Screen Specs||Canon M10||Canon R6|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||5760k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Canon M10||Canon R6|
|Focus System||On-Sensor Phase-detect||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4.6 shutter flaps/s||12 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon M10||Canon R6|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 3.2|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon M10||Canon R6|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||255 shots per charge||360 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
108 x 67 x 35 mm
(4.3 x 2.6 x 1.4 in)
138 x 98 x 88 mm
(5.4 x 3.9 x 3.5 in)
|Camera Weight||301 g (10.6 oz)||680 g (24.0 oz)|
