Canon M vs Olympus XZ-1
The Canon EOS M and the Olympus XZ-1 are two digital cameras that were revealed to the public, respectively, in July 2012 and January 2011. The Canon M is a mirrorless interchangeable lens camera, while the XZ-1 is a fixed lens compact. The cameras are based on an APS-C (Canon M) and a 1/1.7-inch (XZ-1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

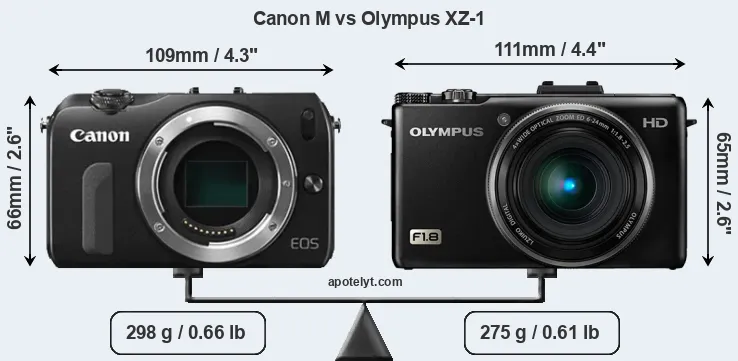

An illustration of the physical size and weight of the Canon M and the Olympus XZ-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M and the Olympus XZ-1 are of equal size. In this context, it is worth noting that neither the Canon M nor the XZ-1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the Canon M is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|2.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499||ebay.com|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499||ebay.com|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|10.||Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599||ebay.com|
|11.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|12.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||ebay.com|
|13.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599||ebay.com|
|14.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499||ebay.com|
|15.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599||ebay.com|
|16.||Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499||ebay.com|
|17.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XZ-1 was launched at a lower price than the Canon M, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

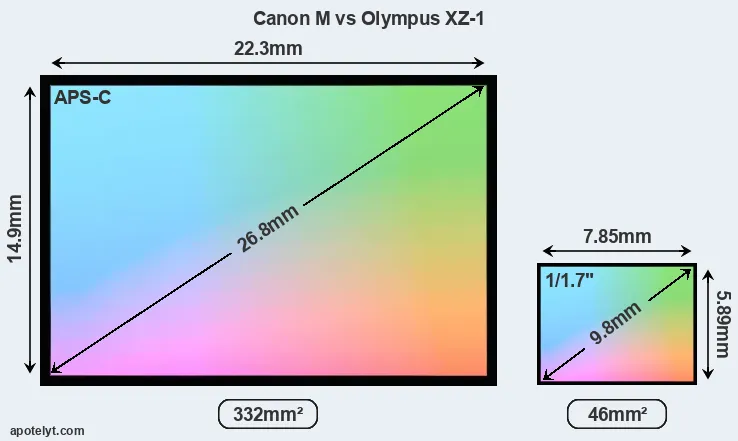

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon M features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the Canon M has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.
With 17.9MP, the Canon M offers a higher resolution than the XZ-1 (10.1MP), but the Canon M nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the Canon M is a somewhat more recent model (by 1 year and 6 months) than the XZ-1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon M implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Canon M for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).
In terms of underlying technology, the Canon M is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the Canon M provides substantially higher image quality than the XZ-1, with an overall score that is 31 points higher. This advantage is based on 3.3 bits higher color depth, 0.8 EV in additional dynamic range, and 2.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|11.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|12.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|13.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|14.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|15.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the Canon M provides a higher video resolution than the XZ-1. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The Canon M and the XZ-1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon M and Olympus XZ-1 in connection with corresponding information for a sample of similar cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|2.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0/s||Y||Y|
|3.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|4.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6/s||Y||n|
|5.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|6.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|10.||Olympus XZ-2||optional||n||3.0 / 920||tilting||Y||1/2000s||5.0/s||Y||Y|
|11.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|12.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5/s||n||Y|
|13.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0/s||Y||Y|
|14.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|15.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|16.||Panasonic LX5||optional||n||3.0 / 460||fixed||n||1/4000s||2.5/s||Y||Y|
|17.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the XZ-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Olympus XZ-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the Canon M and the XZ-1 write their files to SDXC cards. The Canon M supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
|3.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Olympus XZ-2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|12.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|15.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Panasonic LX5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
It is notable that the Canon M has a microphone port, which is missing on the XZ-1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the Canon M and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the Canon M was followed by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is the Canon M better than the Olympus XZ-1 or vice versa? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS M:
- More detail: Offers more megapixels (17.9 vs 10.1MP) with a 36% higher linear resolution.
- Better image quality: Scores substantially higher (31 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.8 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 614k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (4.3 vs 2 flaps/sec) to capture the decisive moment.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Is somewhat more recent (announced 1 year and 6 months after the XZ-1).
Reasons to prefer the Olympus XZ-1:
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has an integrated lens, whereas the Canon M necessitates an extra lens.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the Canon M).
- Longer lasting: Gets more shots (320 versus 230) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in January 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the Canon M is the clear winner of the match-up (15 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon M and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon M or the XZ-1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|2.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499||ebay.com|
|3.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|4.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499||ebay.com|
|5.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|6.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|9.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|10.||Olympus XZ-2||4/5||+||..||..||4.5/5||4.5/5||Sep 2012||599||ebay.com|
|11.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|12.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499||ebay.com|
|13.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599||ebay.com|
|14.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499||ebay.com|
|15.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599||ebay.com|
|16.||Panasonic LX5||4/5||+||..||73/100||4.5/5||4.5/5||Jul 2010||499||ebay.com|
|17.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon M vs Olympus XZ-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Olympus XZ-1|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Canon EF-M mount lenses||28-112mm f/1.8-2.5|
|Launch Date||July 2012||January 2011|
|Launch Price||USD 599||USD 499|
|Sensor Specs||Canon M||Olympus XZ-1|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.3 x 14.9 mm||7.85 x 5.89 mm|
|Sensor Area||332.27 mm2||46.2365 mm2|
|Sensor Diagonal||26.8 mm||9.8 mm|
|Sensor Resolution||17.9 Megapixels||10.1 Megapixels|
|Image Resolution||5184 x 3456 pixels||3664 x 2752 pixels|
|Pixel Pitch||4.31 μm||2.13 μm|
|Pixel Density||5.39 MP/cm2||21.81 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC V||TruePic V|
|DXO Sensor Quality (score)||65||34|
|DXO Color Depth (bits)||22.1||18.8|
|DXO Dynamic Range (EV)||11.2||10.4|
|DXO Low Light (ISO)||827||117|
|Screen Specs||Canon M||Olympus XZ-1|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||614k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Olympus XZ-1|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Continuous Shooting||4.3 shutter flaps/s||2 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon M||Olympus XZ-1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon M||Olympus XZ-1|
|Battery Life (CIPA)||230 shots per charge||320 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
111 x 65 x 42 mm
(4.4 x 2.6 x 1.7 in)
|Camera Weight||298 g (10.5 oz)||275 g (9.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
