Canon M vs Leica M10
The Canon EOS M and the Leica M10 (Typ 3656) are two digital cameras that were revealed to the public, respectively, in July 2012 and January 2017. The Canon M is a mirrorless interchangeable lens camera, while the M10 is a rangefinder-focusing mirrorless. The cameras are based on an APS-C (Canon M) and a full frame (M10) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 23.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Leica M10 (Typ 3656)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon M and the Leica M10 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the M10 is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10 is considerably larger (55 percent) than the Canon M. Moreover, the M10 is substantially heavier (121 percent) than the Canon M. It is noteworthy in this context that the M10 is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|2.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|3.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499|
|4.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|8.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|9.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|10.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999|
|11.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995|
|12.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|13.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249|
|14.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950|
|15.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499|
|16.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|17.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Canon M was launched at a markedly lower price (by 91 percent) than the M10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

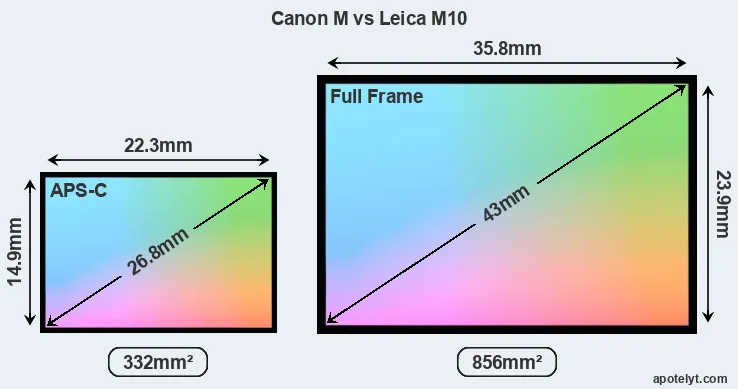

Of the two cameras under consideration, the Canon M features an APS-C sensor and the Leica M10 a full frame sensor. The sensor area in the M10 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 23.8MP, the M10 offers a higher resolution than the Canon M (17.9MP), but the M10 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the M10 is a much more recent model (by 4 years and 5 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10 for good quality output (200 dots per inch) amounts to 29.8 x 20 inches or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inches or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.8 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M10 (Typ 3656) are ISO 100 to ISO 50000 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the M10 offers substantially better image quality than the Canon M (overall score 21 points higher). The advantage is based on 2.3 bits higher color depth, 2 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|10.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||25.2||14.2||2821||94|
|11.||Leica M10-P||Full Frame||23.8||5952||3992||none||25.1||14.1||2739||93|
|12.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||24.8||13.7||2478||90|
|13.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|14.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|15.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|16.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The Canon M indeed provides movie recording capabilities, while the M10 does not. The highest resolution format that the Canon M can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the M10 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Leica M10, and comparable cameras.
|1.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3||n||n|
|2.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0||n||n|
|3.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1||Y||n|
|4.||Canon M10||none||n||3.0 / 1040||tilting||Y||1/4000s||4.6||Y||n|
|5.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|6.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2||Y||Y|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9||Y||n|
|8.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|9.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
|10.||Leica M-E Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||n||n|
|11.||Leica M10-P||optical||n||3.0 / 1037||fixed||Y||1/4000s||5.0||n||n|
|12.||Leica M Typ 262||optical||n||3.0 / 921||fixed||n||1/4000s||3.0||n||n|
|13.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0||n||Y|
|14.||Leica M Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||n||n|
|15.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|16.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0||Y||n|
|17.||Sony NEX-3N||optional||n||3.0 / 460||tilting||n||1/4000s||4.0||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Canon M has a touchscreen, while the M10 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Leica M10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the Canon M and the M10 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Leica M10 (Typ 3656) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|3.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon M10||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Leica M-E Typ 240||Y||mono / -||-||-||-||2.0||-||-||-|
|11.||Leica M10-P||Y||- / -||-||-||-||-||Y||-||-|
|12.||Leica M Typ 262||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|14.||Leica M Typ 240||Y||stereo / mono||-||-||-||2.0||-||-||-|
|15.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|16.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-3N||-||stereo / mono||-||-||micro||2.0||-||-||-|
It is notable that the M10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.
The M10 is a recent model that features in the current product line-up of Leica. In contrast, the Canon M has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the Canon M was succeeded by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what conclusions can be drawn? Which of the two cameras – the Canon M or the Leica M10 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS M:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (109x66mm vs 139x80mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 362g or 55 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (91 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in July 2012).
Arguments in favor of the Leica M10 (Typ 3656):
- More detail: Has more megapixels (23.8 vs 17.9MP), which boosts linear resolution by 15%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Faster burst: Shoots at higher frequency (5 vs 4.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 4 years and 5 months of technical progress since the Canon M launch.
If the number of relative strengths (bullet points above) is taken as a guide, the M10 is the clear winner of the contest (13 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Canon M or the M10. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|2.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595|
|3.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499|
|4.||Canon M10||..||..||..||..||..||4/5||Oct 2015||499|
|5.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|6.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|8.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|9.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|10.||Leica M-E Typ 240||..||..||..||..||..||..||Jun 2019||3,999|
|11.||Leica M10-P||..||..||3/5||..||..||4/5||Aug 2018||7,995|
|12.||Leica M Typ 262||..||..||..||..||..||..||Nov 2015||5,195|
|13.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249|
|14.||Leica M Typ 240||4/5||..||..||..||4/5||..||Sep 2012||6,950|
|15.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499|
|16.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599|
|17.||Sony NEX-3N||3/5||..||..||..||4.5/5||4.5/5||Feb 2013||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon M vs Leica M10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon M||Leica M10|
|Camera Type||Mirrorless system camera||Rangefinder camera|
|Camera Lens||Canon EF-M mount lenses||Leica M mount lenses|
|Launch Date||July 2012||January 2017|
|Launch Price||USD 599||USD 6,595|
|Sensor Specs||Canon M||Leica M10|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.8 x 23.9 mm|
|Sensor Area||332.27 mm2||855.62 mm2|
|Sensor Diagonal||26.8 mm||43 mm|
|Sensor Resolution||17.9 Megapixels||23.8 Megapixels|
|Image Resolution||5184 x 3456 pixels||5952 x 3992 pixels|
|Pixel Pitch||4.31 μm||6.00 μm|
|Pixel Density||5.39 MP/cm2||2.78 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 50,000 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC V||Maestro II|
|DXO Sensor Quality (score)||65||86|
|DXO Color Depth (bits)||22.1||24.4|
|DXO Dynamic Range (EV)||11.2||13.2|
|DXO Low Light (ISO)||827||2133|
|Screen Specs||Canon M||Leica M10|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon M||Leica M10|
|Focus System||On-Sensor Phase-detect||Manual Focus|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||4.3 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon M||Leica M10|
|USB Connector||USB 2.0||no USB|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon M||Leica M10|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||230 shots per charge||210 shots per charge|
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
139 x 80 x 39 mm
(5.5 x 3.1 x 1.5 in)
|Camera Weight||298 g (10.5 oz)||660 g (23.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
