Canon G9 X vs Nikon D500
The Canon PowerShot G9 X and the Nikon D500 are two digital cameras that were revealed to the public, respectively, in October 2015 and January 2016. The G9X is a fixed lens compact, while the D500 is a DSLR. The cameras are based on an one-inch (G9X) and an APS-C (D500) sensor. The Canon has a resolution of 20 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G9 X and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

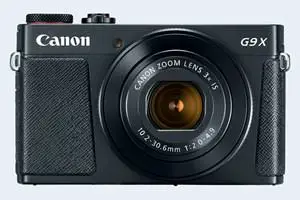

The side-by-side display below illustrates the physical size and weight of the Canon G9 X and the Nikon D500. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The G9X can be obtained in two different colors (black, silver), while the D500 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is considerably larger (197 percent) than the Canon G9 X. It is noteworthy in this context that the D500 is splash and dust-proof, while the G9X does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G9X has a lens built in, whereas the D500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D500 and their specifications in the Nikon Lens Catalog.
Concerning battery life, the G9X gets 220 shots out of its NB-13L battery, while the D500 can take 1240 images on a single charge of its EN-EL15 power pack. The power pack in the G9X can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|2.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|3.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|4.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|5.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|6.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|7.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|8.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|9.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|10.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|11.||Nikon 1 J4||100 mm||60 mm||29 mm||232 g||300||n||Apr 2014||549|
|12.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
|13.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899|
|14.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|15.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|16.||Sony RX100 III||102 mm||58 mm||41 mm||290 g||320||n||May 2014||799|
|17.||Sony RX100||102 mm||58 mm||36 mm||240 g||330||n||Jun 2012||649|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G9X was launched at a lower price than the D500, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G9 X features an one-inch sensor and the Nikon D500 an APS-C sensor. The sensor area in the D500 is 218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20.7MP, the D500 offers a higher resolution than the G9X (20MP), but the D500 nevertheless has larger individual pixels (pixel pitch of 4.22μm versus 2.41μm for the G9X) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot G9 X has a native sensitivity range from ISO 125 to ISO 12800. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D500 offers substantially better image quality than the G9X (overall score 20 points higher). The advantage is based on 2.5 bits higher color depth, 1.7 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|3.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|4.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|6.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|11.||Nikon 1 J4||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||426||53|
|14.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
|15.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
|16.||Sony RX100 III||1-inch||20.0||5472||3648||1080/60p||22.4||12.3||495||67|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D500 provides a better video resolution than the G9X. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G9X relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon G9 X and Nikon D500 in connection with corresponding information for a sample of similar cameras.
|1.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|3.||Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
|4.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|6.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|11.||Nikon 1 J4||none||n||3.0||1037||Fixed||Y||1/4000s||60.0||Y||n|
|14.||Sony RX100 V||2359||n||3.0||1229||tilting||n||1/2000s||24.0||Y||Y|
|15.||Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
|16.||Sony RX100 III||1440||n||3.0||1229||tilting||n||1/2000s||10.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The G9X has one, while the D500 does not. While the built-in flash of the G9X is not very powerful, it can at times be useful as a fill-in light.
The Canon G9 X and the Nikon D500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The G9X writes its imaging data to SDXC cards, while the D500 uses SDHC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the G9X only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the G9X can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G9 X and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|4.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|11.||Nikon 1 J4||-||stereo||mono||-||-||mini||2.0||Y||-||-|
|14.||Sony RX100 V||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|15.||Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|16.||Sony RX100 III||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the D500 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The G9X does not feature such a mic input.
Studio photographers will appreciate that the Nikon D500 (unlike the G9X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the G9X has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the G9X was succeeded by the Canon G9 X Mark II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Which of the two cameras – the Canon G9 X or the Nikon D500 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon PowerShot G9 X:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Ready to shoot: Comes with a built-in lens, while the D500 requires a separate lens.
- More compact: Is smaller (98x58mm vs 147x115mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the D500).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
Reasons to prefer the Nikon D500:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (20 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 1040k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (1240 versus 220) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
If the count of relative strengths (bullet points above) is taken as a measure, the D500 is the clear winner of the contest (24 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G9 X and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the G9X or the D500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|2.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|3.||Canon G9 X Mark II||4/5||..||75/100||4.5/5||4.5/5||Jan 2017||529|
|4.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|5.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|6.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|7.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|8.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|9.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|10.||Nikon D7200||4/5||+ +||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|11.||Nikon 1 J4||3/5||..||..||4.5/5||4/5||Apr 2014||549|
|12.||Nikon D300S||5/5||+ +||82/100||4/5||4.5/5||Jul 2009||1,799|
|13.||Panasonic FZ1000||4/5||+ +||82/100||4.5/5||4.5/5||Jun 2014||899|
|14.||Sony RX100 V||4.5/5||+ +||83/100||4/5||4.5/5||Oct 2016||999|
|15.||Sony RX100 IV||4.5/5||+ +||85/100||4/5||4.5/5||Jun 2015||999|
|16.||Sony RX100 III||5/5||+ +||82/100||4.5/5||5/5||May 2014||799|
|17.||Sony RX100||5/5||+ +||78/100||4/5||5/5||Jun 2012||649|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon G9 X vs Nikon D500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G9 X||Nikon D500|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||28-84mm f/2.0-4.9||Nikon F mount lenses|
|Launch Date||October 2015||January 2016|
|Launch Price||USD 529||USD 1,999|
|Sensor Specs||Canon G9 X||Nikon D500|
|Sensor Format||1" Sensor||APS-C Sensor|
|Sensor Size||13.2 x 8.8 mm||23.5 x 15.7 mm|
|Sensor Area||116.16 mm2||368.95 mm2|
|Sensor Diagonal||15.9 mm||28.3 mm|
|Sensor Resolution||20 Megapixels||20.7 Megapixels|
|Image Resolution||5472 x 3648 pixels||5568 x 3712 pixels|
|Pixel Pitch||2.41 μm||4.22 μm|
|Pixel Density||17.18 MP/cm2||5.60 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||125 - 12,800 ISO||100 - 51,200 ISO|
|ISO Boost||no Enhancement||50 - 1,640,000 ISO|
|Image Processor||DIGIC 6||EXPEED 5|
|DXO Sensor Quality (score)||63||83|
|DXO Color Depth (bits)||21.5||24.0|
|DXO Dynamic Range (EV)||12.3||14.0|
|DXO Low Light (ISO)||495||1324|
|Screen Specs||Canon G9 X||Nikon D500|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||2359k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Canon G9 X||Nikon D500|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6 shutter flaps/s||10 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon G9 X||Nikon D500|
|External Flash||no Hotshoe||Hotshoe|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon G9 X||Nikon D500|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||220 shots per charge||1240 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
98 x 58 x 31 mm
(3.9 x 2.3 x 1.2 in)
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
|Camera Weight||209 g (7.4 oz)||860 g (30.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
