Canon G5 X Mark II vs Olympus E-M10 IV
The Canon PowerShot G5 X Mark II and the Olympus OM-D E-M10 Mark IV are two digital cameras that were announced, respectively, in July 2019 and August 2020. The G5X Mark II is a fixed lens compact, while the E-M10 IV is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G5X Mark II) and a Four Thirds (E-M10 IV) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X Mark II and the Olympus OM-D E-M10 Mark IV? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

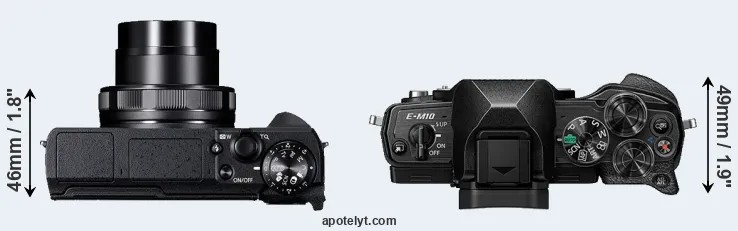

The physical size and weight of the Canon G5 X Mark II and the Olympus E-M10 IV are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M10 IV can be obtained in two different colors (black, silver), while the G5X Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 IV is considerably larger (51 percent) than the Canon G5 X Mark II. In this context, it is worth noting that neither the G5X Mark II nor the E-M10 IV are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X Mark II has a lens built in, whereas the E-M10 IV is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M10 IV and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the G5X Mark II gets 230 shots out of its NB-13L battery, while the E-M10 IV can take 360 images on a single charge of its BLS-50 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon G5 X Mark II||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899|
|2.||Olympus E-M10 IV||122 mm||84 mm||49 mm||383 g||360||n||Aug 2020||699|
|3.||Canon G7 X Mark III||105 mm||61 mm||41 mm||304 g||235||n||Jul 2019||749|
|4.||Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|5.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|6.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|7.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|8.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049|
|9.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|10.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|11.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|12.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|13.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|14.||Panasonic LX100 II||115 mm||66 mm||65 mm||392 g||300||n||Aug 2018||999|
|15.||Panasonic ZS200||111 mm||65 mm||45 mm||340 g||370||n||Feb 2018||799|
|16.||Sony ZV-1||105 mm||60 mm||44 mm||294 g||260||n||May 2020||799|
|17.||Sony RX100 VI||102 mm||58 mm||43 mm||301 g||240||n||Jun 2018||1,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G5 X Mark II features an one-inch sensor and the Olympus E-M10 IV a Four Thirds sensor. The sensor area in the E-M10 IV is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G5X Mark II has a native 3:2 aspect ratio, while the one in the E-M10 IV offers a 4:3 aspect.
With 20.2MP, the E-M10 IV offers a higher resolution than the G5X Mark II (20MP), but the E-M10 IV nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 2.41μm for the G5X Mark II) due to its larger sensor. Moreover, the E-M10 IV is a somewhat more recent model (by 1 year) than the G5X Mark II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the E-M10 IV has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot G5 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark IV are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|2.||Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|3.||Canon G7 X Mark III||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|6.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|7.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|9.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|10.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|11.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|12.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|13.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|14.||Panasonic LX100 II||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
|17.||Sony RX100 VI||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The G5X Mark II and the E-M10 IV are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Canon G5 X Mark II and Olympus E-M10 IV along with similar information for a selection of comparators.
|1.||Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|2.||Olympus E-M10 IV||2360||n||3.0||1040||tilting||Y||1/4000s||15.0||Y||Y|
|3.||Canon G7 X Mark III||none||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|6.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|7.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|10.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|12.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|14.||Panasonic LX100 II||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
|17.||Sony RX100 VI||2359||n||3.0||1229||tilting||Y||1/2000s||24.0||Y||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon G5 X Mark II and the Olympus E-M10 IV both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G5X Mark II and the E-M10 IV write their files to SDXC cards. The E-M10 IV supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the G5X Mark II can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X Mark II and Olympus OM-D E-M10 Mark IV and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y|
|2.||Olympus E-M10 IV||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|3.||Canon G7 X Mark III||-||stereo||mono||Y||-||micro||3.1||Y||-||Y|
|6.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|10.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|12.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|14.||Panasonic LX100 II||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|17.||Sony RX100 VI||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the E-M10 IV has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The G5X Mark II does not feature such an accessory-socket.
Both the G5X Mark II and the E-M10 IV are recent models that are part of the current product line-up. The G5X Mark II replaced the earlier Canon G5 X, while the E-M10 IV followed on from the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon G5 X Mark II better than the Olympus E-M10 IV or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon PowerShot G5 X Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster burst: Shoots at higher frequency (30 vs 15 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has a lens built-in, whereas the E-M10 IV requires a separate lens.
- More compact: Is smaller (111x61mm vs 122x84mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-M10 IV).
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More heavily discounted: Has been on the market for longer (launched in July 2019).
Arguments in favor of the Olympus OM-D E-M10 Mark IV:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (360 versus 230) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Was introduced somewhat (1 year) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M10 IV is the clear winner of the contest (11 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G5 X Mark II and the Olympus E-M10 IV place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G5X Mark II and the E-M10 IV in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G5 X Mark II||4/5||+||82/100||..||4/5||Jul 2019||899|
|2.||Olympus E-M10 IV||4.5/5||..||..||4.5/5||4.5/5||Aug 2020||699|
|3.||Canon G7 X Mark III||..||+ +||81/100||4/5||..||Jul 2019||749|
|4.||Canon M50||..||+||79/100||..||3.5/5||Feb 2018||779|
|5.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|6.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|7.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|8.||Leica C-LUX||..||..||..||4.5/5||4/5||Jun 2018||1,049|
|9.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|10.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|11.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|12.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|13.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|14.||Panasonic LX100 II||4.5/5||+||82/100||4.5/5||4.5/5||Aug 2018||999|
|15.||Panasonic ZS200||..||+ +||81/100||4.5/5||4.5/5||Feb 2018||799|
|16.||Sony ZV-1||4/5||..||85/100||4/5||4.5/5||May 2020||799|
|17.||Sony RX100 VI||4.5/5||+ +||83/100||4/5||4.5/5||Jun 2018||1,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon G5 X Mark II vs Olympus E-M10 IV
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G5 X Mark II||Olympus E-M10 IV|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-120mm f/1.8-2.8||Micro Four Thirds lenses|
|Launch Date||July 2019||August 2020|
|Launch Price||USD 899||USD 699|
|Sensor Specs||Canon G5 X Mark II||Olympus E-M10 IV|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||20.2 Megapixels|
|Image Resolution||5472 x 3648 pixels||5184 x 3888 pixels|
|Pixel Pitch||2.41 μm||3.34 μm|
|Pixel Density||17.18 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||125 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||125 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 8||TruePic VIII|
|Screen Specs||Canon G5 X Mark II||Olympus E-M10 IV|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Canon G5 X Mark II||Olympus E-M10 IV|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/4000s|
|Continuous Shooting||30 shutter flaps/s||15 shutter flaps/s|
|Electronic Shutter||up to 1/25600s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon G5 X Mark II||Olympus E-M10 IV|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon G5 X Mark II||Olympus E-M10 IV|
|Battery Life (CIPA)||230 shots per charge||360 shots per charge|
|In-Camera Charging||USB charging||USB charging|
111 x 61 x 46 mm
(4.4 x 2.4 x 1.8 in)
122 x 84 x 49 mm
(4.8 x 3.3 x 1.9 in)
|Camera Weight||340 g (12.0 oz)||383 g (13.5 oz)|
