Canon G5 X Mark II vs SL2
The Canon PowerShot G5 X Mark II and the Canon EOS Rebel SL2 (labelled Canon 200D in some countries) are two digital cameras that were revealed to the public, respectively, in July 2019 and June 2017. The G5X Mark II is a fixed lens compact, while the SL2 is a DSLR. The cameras are based on an one-inch (G5X Mark II) and an APS-C (SL2) sensor. The G5X Mark II has a resolution of 20 megapixels, whereas the SL2 provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G5 X Mark II and the Canon EOS Rebel SL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

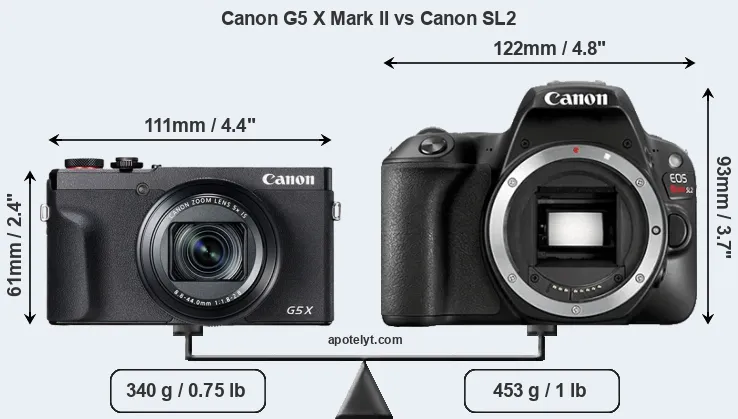

An illustration of the physical size and weight of the Canon G5 X Mark II and the Canon SL2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The SL2 can be obtained in two different colors (black, white), while the G5X Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SL2 is considerably larger (68 percent) than the Canon G5 X Mark II. In this context, it is worth noting that neither the G5X Mark II nor the SL2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G5X Mark II has a lens built in, whereas the SL2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the SL2 and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the G5X Mark II gets 230 shots out of its NB-13L battery, while the SL2 can take 650 images on a single charge of its LP-E17 power pack. The power pack in the G5X Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|Canon G5 X Mark II||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899|
|Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|Canon G7 X Mark III||105 mm||61 mm||41 mm||304 g||235||n||Jul 2019||749|
|Canon M50||116 mm||88 mm||59 mm||390 g||235||n||Feb 2018||779|
|Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049|
|Panasonic FZ1000 II||136 mm||97 mm||131 mm||810 g||350||n||Feb 2019||899|
|Panasonic LX100 II||115 mm||66 mm||65 mm||392 g||300||n||Aug 2018||999|
|Panasonic TZ200||111 mm||65 mm||45 mm||340 g||370||n||Feb 2018||799|
|Sony ZV-1||105 mm||60 mm||44 mm||294 g||260||n||May 2020||799|
|Sony A6400||120 mm||67 mm||50 mm||403 g||410||n||Jan 2019||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G5 X Mark II features an one-inch sensor and the Canon SL2 an APS-C sensor. The sensor area in the SL2 is 186 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the G5X Mark II uses a more advanced image processing engine (DIGIC 8) than the SL2 (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.
With 24MP, the SL2 offers a higher resolution than the G5X Mark II (20MP), but the SL2 nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.41μm for the G5X Mark II) due to its larger sensor. However, the G5X Mark II is a much more recent model (by 2 years) than the SL2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Canon SL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL2 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon G5 X Mark II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.
The SL2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon PowerShot G5 X Mark II has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Canon EOS Rebel SL2 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Canon G7 X Mark III||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Panasonic FZ1000 II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|Panasonic LX100 II||Four Thirds||16.8||4736||3552||4K/30p||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G5X Mark II provides a higher video resolution than the SL2. It can shoot video footage at 4K/30p, while the SL2 is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the G5X Mark II has an electronic viewfinder (2360k dots), while the SL2 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon G5 X Mark II and Canon SL2 along with similar information for a selection of comparators.
|Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|Canon G7 X Mark III||none||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|Panasonic FZ1000 II||2360||n||3.0||1240||swivel||Y||1/4000s||12.0||Y||Y|
|Panasonic LX100 II||2764||n||3.0||1240||fixed||Y||1/4000s||11.0||n||Y|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G5X Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon G5 X Mark II and the Canon SL2 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G5X Mark II and the SL2 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G5 X Mark II and Canon EOS Rebel SL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y|
|Canon G7 X Mark III||-||stereo||mono||Y||-||micro||3.1||Y||-||Y|
|Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|Panasonic FZ1000 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|Panasonic LX100 II||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
It is notable that the SL2 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The G5X Mark II does not feature such a mic input.
The G5X Mark II is a recent model that features in the current product line-up of Canon. In contrast, the SL2 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the SL2 was succeeded by the Canon SL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
So what is the bottom line? Which of the two cameras – the Canon G5 X Mark II or the Canon SL2 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon PowerShot G5 X Mark II:
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- Faster burst: Shoots at higher frequency (30 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Comes with a built-in lens, while the SL2 requires a separate lens.
- More compact: Is smaller (111x61mm vs 122x93mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the SL2).
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More modern: Reflects 2 years of technical progress since the SL2 launch.
Advantages of the Canon EOS Rebel SL2:
- More detail: Has more megapixels (24 vs 20MP), which boosts linear resolution by 10%.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (650 versus 230) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been around for much longer (launched in June 2017).
If the number of relative strengths (bullet points above) is taken as a guide, the SL2 emerges as the winner of the match-up (15 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G5 X Mark II and the Canon SL2 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the G5X Mark II and the SL2 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon G5 X Mark II||+||82/100||..||..||4/5||Jul 2019||899|
|Canon SL2||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon SL3||o||79/100||4/5||..||4/5||Apr 2019||599|
|Canon G7 X Mark III||+ +||81/100||4/5||..||..||Jul 2019||749|
|Canon M50||+||79/100||..||4/5||3.5/5||Feb 2018||779|
|Canon SX740||+||..||4/5||..||4/5||Jul 2018||399|
|Canon T7||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon G5 X||+ +||78/100||4.5/5||4/5||4.5/5||Oct 2015||799|
|Canon T6s||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon SL1||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Leica C-LUX||..||..||4.5/5||..||4/5||Jun 2018||1,049|
|Panasonic FZ1000 II||..||83/100||4.5/5||..||4.5/5||Feb 2019||899|
|Panasonic LX100 II||+||82/100||4.5/5||4.5/5||4.5/5||Aug 2018||999|
|Panasonic TZ200||+ +||81/100||4.5/5||..||4.5/5||Feb 2018||799|
|Sony ZV-1||..||85/100||4/5||..||4.5/5||May 2020||799|
|Sony A6400||+||85/100||4.5/5||..||4/5||Jan 2019||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon G5 X Mark II vs Canon SL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G5 X Mark II||Canon SL2|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||24-120mm f/1.8-2.8||Canon EF mount lenses|
|Launch Date||July 2019||June 2017|
|Launch Price||USD 899||USD 549|
|Sensor Specs||Canon G5 X Mark II||Canon SL2|
|Sensor Format||1" Sensor||APS-C Sensor|
|Sensor Size||13.2 x 8.8 mm||22.3 x 14.9 mm|
|Sensor Area||116.16 mm2||332.27 mm2|
|Sensor Diagonal||15.9 mm||26.8 mm|
|Sensor Resolution||20 Megapixels||24 Megapixels|
|Image Resolution||5472 x 3648 pixels||6000 x 4000 pixels|
|Pixel Pitch||2.41 μm||3.72 μm|
|Pixel Density||17.18 MP/cm2||7.22 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||125 - 12,800 ISO||100 - 25,600 ISO|
|ISO Boost||125 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 8||DIGIC 7|
|DXO Sensor Quality (score)||..||79|
|DXO Color Depth (bits)||..||23.6|
|DXO Dynamic Range (EV)||..||13.4|
|DXO Low Light (ISO)||..||1041|
|Screen Specs||Canon G5 X Mark II||Canon SL2|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Canon G5 X Mark II||Canon SL2|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||30 shutter flaps/s||5 shutter flaps/s|
|Electronic Shutter||up to 1/25600s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon G5 X Mark II||Canon SL2|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon G5 X Mark II||Canon SL2|
|Battery Life (CIPA)||230 shots per charge||650 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
111 x 61 x 46 mm
(4.4 x 2.4 x 1.8 in)
122 x 93 x 70 mm
(4.8 x 3.7 x 2.8 in)
|Camera Weight||340 g (12.0 oz)||453 g (16.0 oz)|
