Canon G3 X vs Olympus E-PL7
The Canon PowerShot G3 X and the Olympus PEN E-PL7 are two digital cameras that were announced, respectively, in June 2015 and August 2014. The G3X is a fixed lens compact, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (G3X) and a Four Thirds (E-PL7) sensor. The Canon has a resolution of 20 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G3 X and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

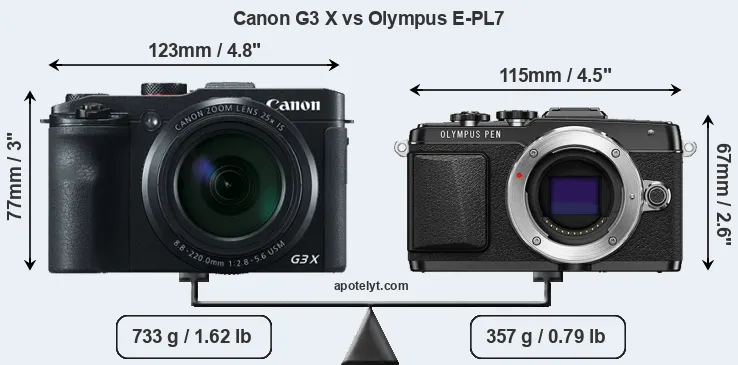

An illustration of the physical size and weight of the Canon G3 X and the Olympus E-PL7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL7 can be obtained in two different colors (black, silver), while the G3X is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is notably smaller (19 percent) than the Canon G3 X. It is worth mentioning in this context that the G3X is splash and dust resistant, while the E-PL7 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G3X has a lens built in, whereas the E-PL7 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL7 and their specifications in the Micro Four Thirds Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|2.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|5.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|6.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|7.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|8.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|9.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|10.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|11.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|12.||Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899|
|13.||Sony RX10 III||133 mm||94 mm||127 mm||1051 g||420||Y||Mar 2016||1,499|
|14.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|15.||Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
|16.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|17.||Sony RX10||129 mm||88 mm||102 mm||813 g||420||Y||Oct 2013||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

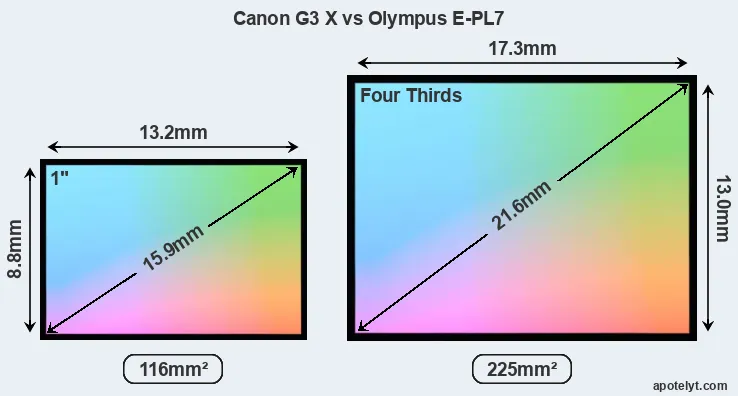

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G3 X features an one-inch sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 94 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 2.0. The sensor in the G3X has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.
Despite having a smaller sensor, the Canon G3 X offers a higher resolution of 20 megapixels, compared with 15.9 MP of the Olympus E-PL7. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-PL7). However, it should be noted that the G3X is a somewhat more recent model (by 9 months) than the E-PL7, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The resolution advantage of the Canon G3 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G3X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PL7 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon PowerShot G3 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-PL7 has a markedly higher DXO score than the G3X (overall score 9 points higher), which will translate into better image quality. The advantage is based on 1.3 bits higher color depth, 0.1 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|2.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|4.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|5.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|7.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|8.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|9.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|10.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|11.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|13.||Sony RX10 III||1-inch||20.0||5472||3648||4K/30p||23.1||12.6||472||70|
|14.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
|15.||Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
|16.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G3X provides a higher frame rate than the E-PL7. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The G3X and the E-PL7 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the EVF-DC1 for the G3X and the VF-4 for the E-PL7 – are available as accessories. The adjacent table lists some of the other core features of the Canon G3 X and Olympus E-PL7 along with similar information for a selection of comparators.
|1.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|4.||Canon G9 X||none||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y|
|5.||Canon G7 X||none||n||3.0||1040||tilting||Y||1/2000s||6.5||Y||Y|
|8.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|13.||Sony RX10 III||2359||Y||3.0||1229||tilting||n||1/2000s||14.0||Y||Y|
|14.||Sony RX100 V||2359||n||3.0||1229||tilting||n||1/2000s||24.0||Y||Y|
|15.||Sony RX10 II||2359||Y||3.0||1229||tilting||n||1/3200s||14.0||Y||Y|
|16.||Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The G3X has one, while the E-PL7 does not. While the built-in flash of the G3X is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G3X and the E-PL7 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G3 X and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|4.||Canon G9 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|5.||Canon G7 X||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|8.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|13.||Sony RX10 III||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
|14.||Sony RX100 V||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|15.||Sony RX10 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
|16.||Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the G3X has a microphone port, which is missing on the E-PL7. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
The G3X is a recent model that features in the current product line-up of Canon. In contrast, the E-PL7 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL7 was succeeded by the Olympus E-PL8. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon G3 X and the Olympus E-PL7? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Canon PowerShot G3 X:
- More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
- Ready to shoot: Has a lens built-in, whereas the E-PL7 requires a separate lens.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Is somewhat more recent (announced 9 months after the E-PL7).
Advantages of the Olympus PEN E-PL7:
- Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 5.9 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (115x67mm vs 123x77mm) and will fit more readily into a bag.
- Longer lasting: Gets more shots (350 versus 300) out of a single battery charge.
- More heavily discounted: Has been on the market for longer (launched in August 2014).
If the count of relative strengths (bullet points above) is taken as a measure, the G3X comes out slightly ahead of the E-PL7 (11 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G3 X and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the G3X or the E-PL7 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|2.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|3.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon G9 X||3.5/5||+ +||..||4.5/5||4.5/5||Oct 2015||529|
|5.||Canon G7 X||4/5||+ +||77/100||4.5/5||4.5/5||Sep 2014||699|
|6.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|7.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|8.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|9.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|10.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|11.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|12.||Panasonic FZ1000||4/5||+ +||82/100||4.5/5||4.5/5||Jun 2014||899|
|13.||Sony RX10 III||5/5||+||84/100||4.5/5||4.5/5||Mar 2016||1,499|
|14.||Sony RX100 V||4.5/5||+ +||83/100||4/5||4.5/5||Oct 2016||999|
|15.||Sony RX10 II||5/5||+ +||82/100||4.5/5||4/5||Jun 2015||1,299|
|16.||Sony RX100 IV||4.5/5||+ +||85/100||4/5||4.5/5||Jun 2015||999|
|17.||Sony RX10||5/5||+||80/100||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon G3 X vs Olympus E-PL7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G3 X||Olympus E-PL7|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-600mm f/2.8-5.6||Micro Four Thirds lenses|
|Launch Date||June 2015||August 2014|
|Launch Price||USD 999||USD 599|
|Sensor Specs||Canon G3 X||Olympus E-PL7|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||13.2 x 8.8 mm||17.3 x 13.0 mm|
|Sensor Area||116.16 mm2||224.9 mm2|
|Sensor Diagonal||15.9 mm||21.6 mm|
|Sensor Resolution||20 Megapixels||15.9 Megapixels|
|Image Resolution||5472 x 3648 pixels||4608 x 3456 pixels|
|Pixel Pitch||2.41 μm||3.76 μm|
|Pixel Density||17.18 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||125 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||125 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 6||TruePic VII|
|DXO Sensor Quality (score)||63||72|
|DXO Color Depth (bits)||21.4||22.7|
|DXO Dynamic Range (EV)||12.3||12.4|
|DXO Low Light (ISO)||521||873|
|Screen Specs||Canon G3 X||Olympus E-PL7|
|Viewfinder Type||Viewfinder optional||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1037k dots|
|LCD Attachment||Tilting screen||Tilting screen|
|Shooting Specs||Canon G3 X||Olympus E-PL7|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/4000s|
|Continuous Shooting||5.9 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon G3 X||Olympus E-PL7|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon G3 X||Olympus E-PL7|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||300 shots per charge||350 shots per charge|
123 x 77 x 105 mm
(4.8 x 3.0 x 4.1 in)
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
|Camera Weight||733 g (25.9 oz)||357 g (12.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
