Canon G3 X vs Nikon D5100

The Canon PowerShot G3 X and the Nikon D5100 are two digital cameras that were announced, respectively, in June 2015 and April 2011. The G3X is a fixed lens compact, while the D5100 is a DSLR. The cameras are based on an one-inch (G3X) and an APS-C (D5100) sensor. The Canon has a resolution of 20 megapixels, whereas the Nikon provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G3 X		Nikon D5100
Fixed lens compact camera		Digital single lens reflex
24-600mm f/2.8-5.6		Nikon F mount lenses
20 MP – 1" sensor		16.1 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 125-12,800 (125 - 25,600)		ISO 100-6,400 (100 - 25,600)
Viewfinder optional		Optical viewfinder
3.2" LCD – 1620k dots		3.0" LCD – 921k dots
Tilting touchscreen		Swivel screen (not touch-sensitive)
5.9 shutter flaps per second		4 shutter flaps per second
Weathersealed body		not weather sealed
300 shots per battery charge		660 shots per battery charge
123 x 77 x 105 mm, 733 g		128 x 97 x 79 mm, 560 g

Check G3X price at
amazon.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G3 X and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

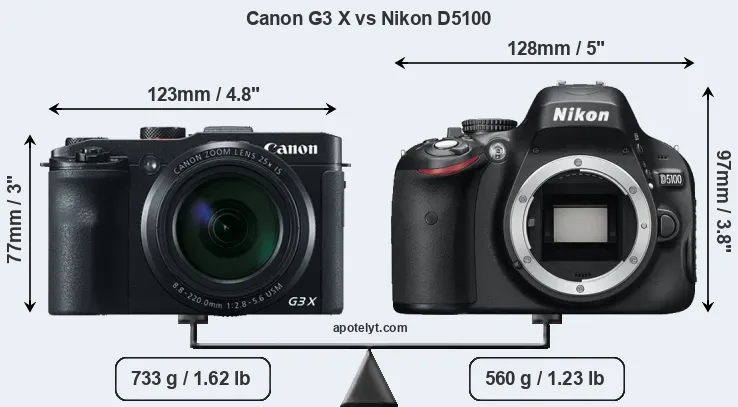

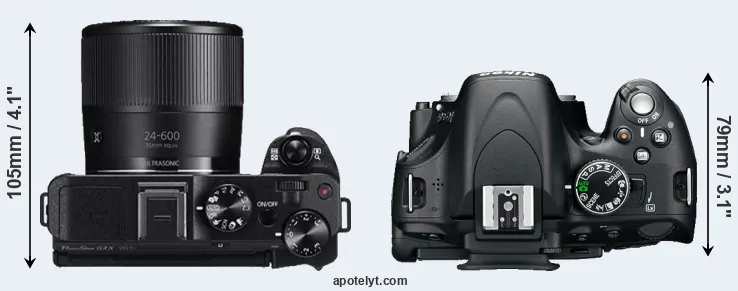

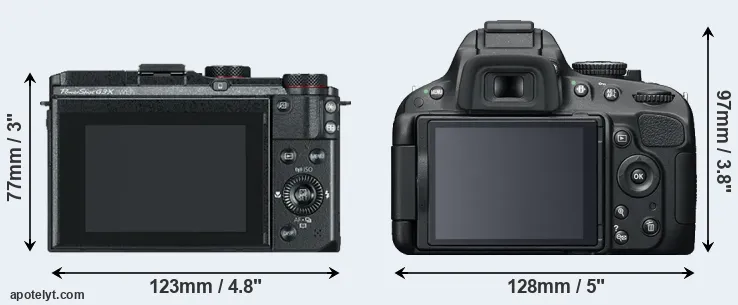

The physical size and weight of the Canon G3 X and the Nikon D5100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is notably larger (31 percent) than the Canon G3 X. It is worth mentioning in this context that the G3X is splash and dust resistant, while the D5100 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G3X has a lens built in, whereas the D5100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5100 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the G3X gets 300 shots out of its NB-10L battery, while the D5100 can take 660 images on a single charge of its EN-EL14 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G3 X	123 mm	77 mm	105 mm	733 g	300	Y	Jun 2015	999	amazon.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
3.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	1,199	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
6.		Canon 70D	139 mm	104 mm	79 mm	755 g	920	Y	Jul 2013	1,199	ebay.com
7.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
8.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
9.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
10.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	599	ebay.com
11.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	749	ebay.com
12.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	899	ebay.com
13.		Sony RX10 III	133 mm	94 mm	127 mm	1051 g	420	Y	Mar 2016	1,499	ebay.com
14.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	999	ebay.com
15.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	1,299	ebay.com
16.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	999	ebay.com
17.		Sony RX10	129 mm	88 mm	102 mm	813 g	420	Y	Oct 2013	1,299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

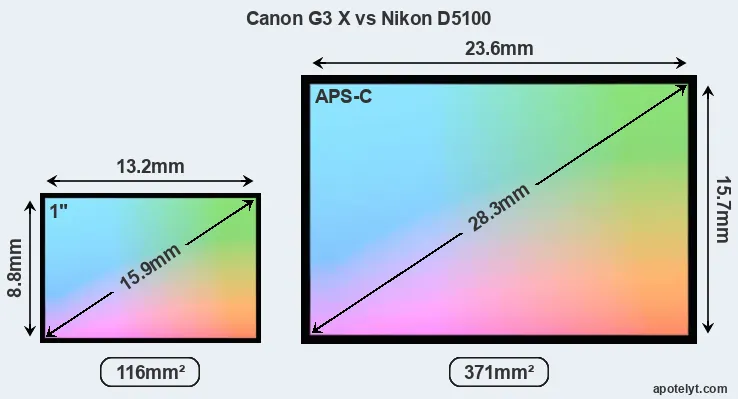

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon G3 X features an one-inch sensor and the Nikon D5100 an APS-C sensor. The sensor area in the D5100 is 220 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

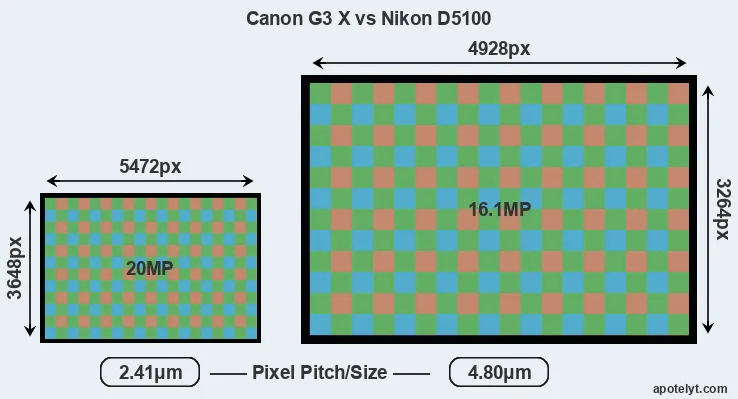

Despite having a smaller sensor, the Canon G3 X offers a higher resolution of 20 megapixels, compared with 16.1 MP of the Nikon D5100. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 4.80μm for the D5100). However, it should be noted that the G3X is much more recent (by 4 years and 2 months) than the D5100, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon G3 X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G3X for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Nikon D5100 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

The Canon PowerShot G3 X has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 125-25600. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the G3X is build around a BSI-CMOS sensor, while the D5100 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D5100 offers substantially better image quality than the G3X (overall score 17 points higher). The advantage is based on 2.1 bits higher color depth, 1.3 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G3 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	521	63
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon 70D	APS-C	20.0	5472	3648	1080/30p	22.5	11.6	926	68
7.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
8.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
9.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
10.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
11.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
12.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
13.		Sony RX10 III	1-inch	20.0	5472	3648	4K/30p	23.1	12.6	472	70
14.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
15.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
16.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
17.		Sony RX10	1-inch	20.0	5472	3648	1080/60p	22.9	12.6	474	69

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the G3X provides a higher frame rate than the D5100. It can shoot video footage at 1080/60p, while the Nikon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the G3X relies on live view and the rear LCD for framing. That said, the G3X can be equipped with an optional viewfinder – the EVF-DC1. The following table reports on some other key feature differences and similarities of the Canon G3 X, the Nikon D5100, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G3 X	optional	n	3.2 / 1620	tilting	Y	1/2000s	5.9/s	Y	Y
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon 70D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
7.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
8.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
9.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
10.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
12.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
13.		Sony RX10 III	2359	Y	3.0 / 1229	tilting	n	1/2000s	14.0/s	Y	Y
14.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
15.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
16.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
17.		Sony RX10	1440	Y	3.0 / 1229	tilting	n	1/3200s	10.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G3X has a touchscreen, while the D5100 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G3X and the D5100 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G3 X and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G3 X	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon 70D	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Sony RX10 III	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
14.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
16.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX10	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the G3X offers wifi support, while the D5100 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The G3X is a recent model that features in the current product line-up of Canon. In contrast, the D5100 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D5100 was succeeded by the Nikon D5200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon G3 X and the Nikon D5100? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot G3 X:

• More detail: Offers more megapixels (20 vs 16.1MP) with a 11% higher linear resolution.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (5.9 vs 4 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the D5100 requires a separate lens.
• More compact: Is smaller (123x77mm vs 128x97mm) and thus needs less room in the bag.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Reflects 4 years and 2 months of technical progress since the D5100 launch.

Arguments in favor of the Nikon D5100:

• Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.1 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (660 versus 300) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in April 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the G3X emerges as the winner of the contest (14 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G3 X and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the G3X or the D5100 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G3 X	3.5/5	+	..	..	4.5/5	4/5	Jun 2015	999	amazon.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
3.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	1,199	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
6.		Canon 70D	5/5	+ +	..	83/100	4.5/5	5/5	Jul 2013	1,199	ebay.com
7.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
8.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
9.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
10.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	599	ebay.com
11.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	749	ebay.com
12.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	899	ebay.com
13.		Sony RX10 III	5/5	+	..	84/100	4.5/5	4.5/5	Mar 2016	1,499	ebay.com
14.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	999	ebay.com
15.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	1,299	ebay.com
16.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	999	ebay.com
17.		Sony RX10	5/5	+	..	80/100	4.5/5	4.5/5	Oct 2013	1,299	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
