Canon G16 vs Nikon D5300

The Canon PowerShot G16 and the Nikon D5300 are two digital cameras that were revealed to the public, respectively, in August 2013 and October 2013. The G16 is a fixed lens compact, while the D5300 is a DSLR. The cameras are based on a 1/1.7-inch (G16) and an APS-C (D5300) sensor. The Canon has a resolution of 12 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon G16		Nikon D5300
Fixed lens compact camera		Digital single lens reflex
28-140mm f/1.8-2.8		Nikon F mount lenses
12 MP – 1/1.7" sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 80-12,800		ISO 100-12,800 (100 - 25,600)
Optical viewfinder		Optical viewfinder
3.0" LCD – 922k dots		3.2" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
2.2 shutter flaps per second		5 shutter flaps per second
360 shots per battery charge		600 shots per battery charge
109 x 76 x 40 mm, 356 g		125 x 98 x 76 mm, 480 g

Check G16 offers at
ebay.com
Check D5300 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G16 and the Nikon D5300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

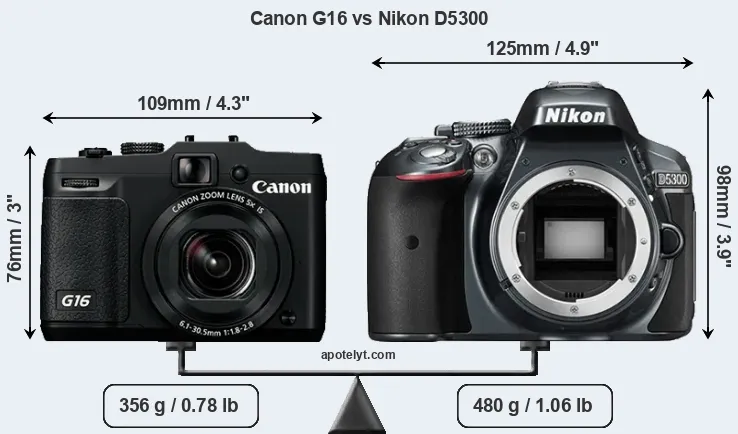

An illustration of the physical size and weight of the Canon G16 and the Nikon D5300 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The D5300 can be obtained in three different colors (black, grey, red), while the G16 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5300 is considerably larger (48 percent) than the Canon G16. In this context, it is worth noting that neither the G16 nor the D5300 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G16 has a lens built in, whereas the D5300 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5300 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the G16 gets 360 shots out of its Canon NB-10L battery, while the D5300 can take 600 images on a single charge of its Nikon EN-EL14a power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
2.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
4.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
5.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
7.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
8.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	499	ebay.com
9.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
10.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
11.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
12.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
13.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	499	ebay.com
14.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	549	ebay.com
15.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
16.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G16 was launched at a lower price than the D5300, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon G16 features a 1/1.7-inch sensor and the Nikon D5300 an APS-C sensor. The sensor area in the D5300 is 774 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.65 and 1.5. The sensor in the G16 has a native 4:3 aspect ratio, while the one in the D5300 offers a 3:2 aspect.

With 24MP, the D5300 offers a higher resolution than the G16 (12MP), but the D5300 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.87μm for the G16) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the D5300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D5300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon G16 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot G16 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Nikon D5300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the G16 is build around a BSI-CMOS sensor, while the D5300 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5300 offers substantially better image quality than the G16 (overall score 29 points higher). The advantage is based on 3 bits higher color depth, 2.2 EV in additional dynamic range, and 2.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
2.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
5.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
8.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
9.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
10.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
11.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
12.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
13.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
14.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
15.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
16.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The G16 and the D5300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon G16 and Nikon D5300 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
2.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
5.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
8.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
9.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
10.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
11.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
14.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
15.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
16.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon G16 and the Nikon D5300 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G16 and the D5300 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G16 and Nikon D5300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
5.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
11.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
13.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
14.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
16.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D5300 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The G16 does not feature such a mic input.

Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the G16 and the D5300 have been discontinued, but can regularly be found used on ebay. The D5300 was replaced by the Nikon D5500, while the G16 does not have a direct successor. Further information on the features and operation of the G16 and D5300 can be found, respectively, in the Canon G16 Manual (free pdf) or the online Nikon D5300 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon G16 or the Nikon D5300 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot G16:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Comes with a built-in lens, while the D5300 requires a separate lens.
• More compact: Is smaller (109x76mm vs 125x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D5300).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Advantages of the Nikon D5300:

• More detail: Has more megapixels (24 vs 12MP), which boosts linear resolution by 44%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (29 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (3 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.5 stops ISO advantage).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5 vs 2.2 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (600 versus 360) out of a single battery charge.
• Easier geotagging: Features an internal GPS sensor to log localization data.

If the count of relative strengths (bullet points above) is taken as a measure, the D5300 is the clear winner of the contest (15 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon G16 and the Nikon D5300 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the G16 and the D5300 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
2.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
4.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
5.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
7.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
8.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	499	ebay.com
9.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
10.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
11.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
12.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
13.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	499	ebay.com
14.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	549	ebay.com
15.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
16.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
