Canon G1 X vs Olympus E-M5 II
The Canon PowerShot G1 X and the Olympus OM-D E-M5 Mark II are two enthusiast cameras that were announced, respectively, in January 2012 and February 2015. The G1X is a fixed lens compact, while the E-M5 II is a mirrorless interchangeable lens camera. The cameras are based on an 1.5-inch (G1X) and a Four Thirds (E-M5 II) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X and the Olympus OM-D E-M5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

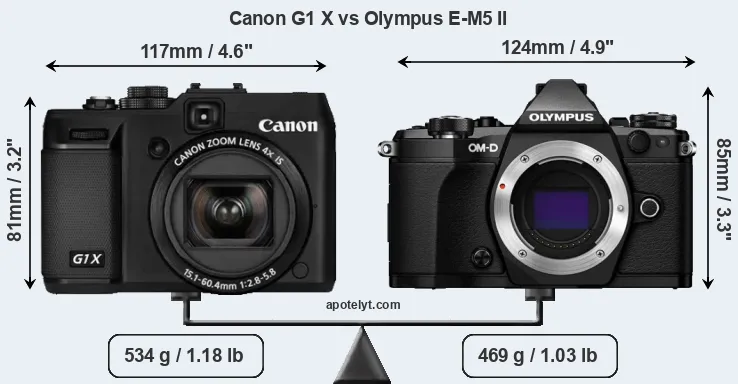

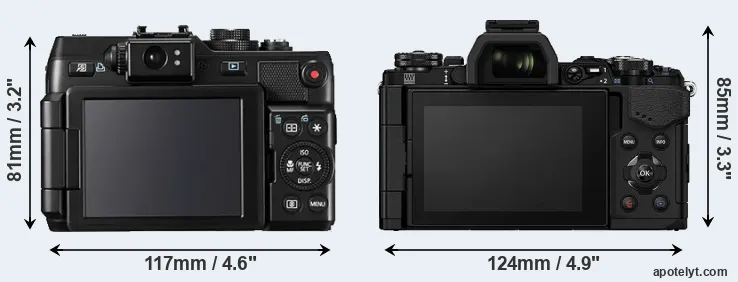

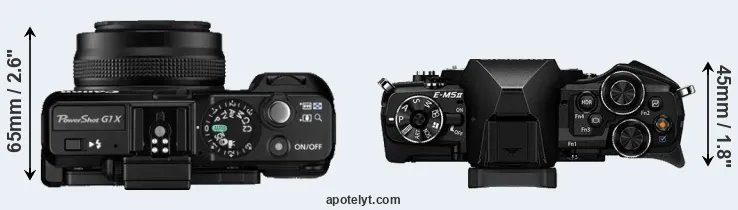

The physical size and weight of the Canon G1 X and the Olympus E-M5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-M5 II can be obtained in two different colors (black, silver), while the G1X is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is notably larger (11 percent) than the Canon G1 X. It is noteworthy in this context that the E-M5 II is splash and dust-proof, while the G1X does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X has a lens built in, whereas the E-M5 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 II and their specifications in the Micro Four Thirds Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon G1 X||117 mm||81 mm||65 mm||534 g||250||n||Jan 2012||799|
|2.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|3.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|4.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|5.||Canon S120||100 mm||59 mm||29 mm||217 g||230||n||Aug 2013||449|
|6.||Canon SX50||123 mm||87 mm||106 mm||595 g||315||n||Sep 2012||429|
|7.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|8.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|11.||Leica V-LUX 4||125 mm||87 mm||110 mm||588 g||540||n||Sep 2012||949|
|12.||Leica V-LUX 3||124 mm||81 mm||95 mm||540 g||410||n||Dec 2011||949|
|13.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|14.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|17.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G1X was launched at a lower price than the E-M5 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

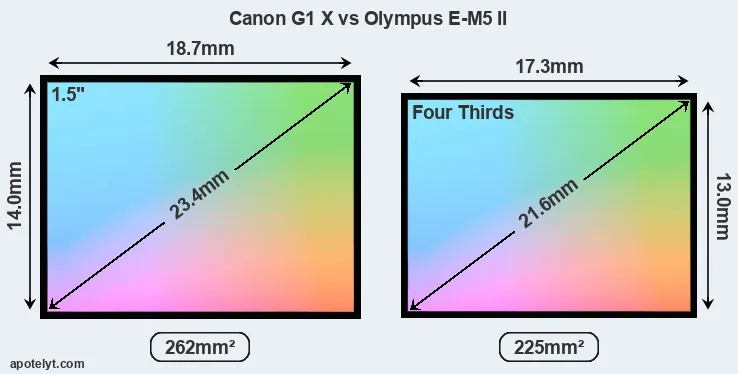

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon G1 X features an 1.5-inch sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 14 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.85 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

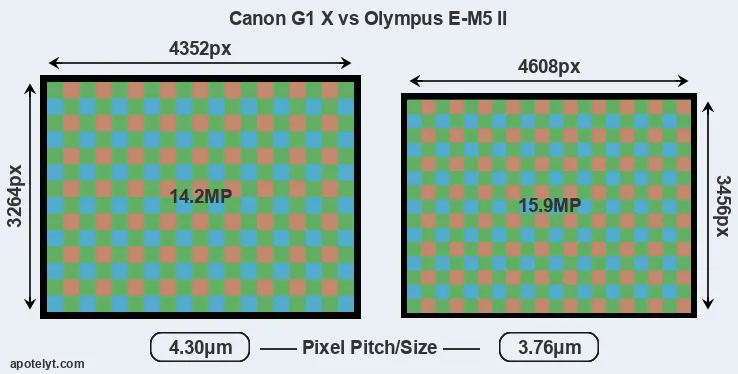

Despite having a smaller sensor, the E-M5 II offers a higher resolution of 15.9 megapixels, compared with 14.2 MP of the G1X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.30μm for the G1X). However, it should be noted that the E-M5 II is much more recent (by 3 years) than the G1X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-M5 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 II for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon G1 X are 21.8 x 16.3 inches or 55.3 x 41.5 cm for good quality, 17.4 x 13.1 inches or 44.2 x 33.2 cm for very good quality, and 14.5 x 10.9 inches or 36.8 x 27.6 cm for excellent quality prints.
Unlike the G1X, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon PowerShot G1 X has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Olympus OM-D E-M5 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-M5 II offers substantially better image quality than the G1X (overall score 13 points higher). The advantage is based on 1.3 bits higher color depth, 1.7 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Canon G1 X||1.5-inch||14.2||4352||3264||1080/24p||21.7||10.8||644||60|
|2.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|3.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|11.||Leica V-LUX 4||1/2.3||12.0||4000||3000||1080/60p||..||..||..||..|
|12.||Leica V-LUX 3||1/2.3||12.0||4000||3000||1080/60p||..||..||..||..|
|13.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|14.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|17.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M5 II provides a faster frame rate than the G1X. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/24p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), while the G1X has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon G1 X and Olympus E-M5 II in connection with corresponding information for a sample of similar cameras.
|1.||Canon G1 X||optical||n||3.0||922||Swivel||n||1/4000s||1.9||Y||Y|
|2.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|3.||Canon G1 X Mark II||optional||n||3.0||1040||tilting||Y||1/4000s||5.2||Y||Y|
|11.||Leica V-LUX 4||1312||n||3.0||460||swivel||n||1/4000s||12.0||Y||Y|
|12.||Leica V-LUX 3||202||n||3.0||460||swivel||n||1/2000s||12.0||Y||Y|
|13.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|14.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The G1X has one, while the E-M5 II does not. While the built-in flash of the G1X is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M5 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G1X and the E-M5 II write their files to SDXC cards. The E-M5 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the G1X cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X and Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Canon G1 X||Y||stereo||mono||-||-||mini||2.0||-||-||-|
|2.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|3.||Canon G1 X Mark II||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|11.||Leica V-LUX 4||Y||stereo||mono||Y||-||mini||2.0||-||-||-|
|12.||Leica V-LUX 3||Y||stereo||-||-||-||mini||2.0||-||-||-|
|13.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|14.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-M5 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the G1X does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-M5 II (unlike the G1X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the G1X and the E-M5 II have been discontinued, but can regularly be found used on eBay. The G1X was replaced by the Canon G1X Mark II, while the E-M5 II was followed by the Olympus E-M5 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon G1 X better than the Olympus E-M5 II or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon PowerShot G1 X:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Ready to shoot: Has a lens built-in, whereas the E-M5 II requires a separate lens.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been available for much longer (launched in January 2012).
Advantages of the Olympus OM-D E-M5 Mark II:
- More detail: Has more megapixels (15.9 vs 14.2MP), which boosts linear resolution by 6%.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (13 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 922k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 1.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (310 versus 250) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
- More modern: Reflects 3 years of technical progress since the G1X launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M5 II is the clear winner of the contest (23 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G1 X and the Olympus E-M5 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G1X or the E-M5 II. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G1 X||5/5||+||76/100||4/5||4.5/5||Jan 2012||799|
|2.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|3.||Canon G1 X Mark II||3/5||+||77/100||4/5||4.5/5||Feb 2014||799|
|4.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|5.||Canon S120||..||+ +||..||4.5/5||4.5/5||Aug 2013||449|
|6.||Canon SX50||3/5||+ +||72/100||4.5/5||4.5/5||Sep 2012||429|
|7.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|8.||Canon T3||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|9.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|10.||Canon XSi||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|11.||Leica V-LUX 4||..||..||..||..||..||Sep 2012||949|
|12.||Leica V-LUX 3||..||..||..||..||..||Dec 2011||949|
|13.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|14.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|17.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon G1 X vs Olympus E-M5 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G1 X||Olympus E-M5 II|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||28-112mm f/2.8-5.8||Micro Four Thirds lenses|
|Launch Date||January 2012||February 2015|
|Launch Price||USD 799||USD 1,099|
|Sensor Specs||Canon G1 X||Olympus E-M5 II|
|Sensor Format||1.5" Sensor||Four Thirds Sensor|
|Sensor Size||18.7 x 14.0 mm||17.3 x 13.0 mm|
|Sensor Area||261.8 mm2||224.9 mm2|
|Sensor Diagonal||23.4 mm||21.6 mm|
|Sensor Resolution||14.2 Megapixels||15.9 Megapixels|
|Image Resolution||4352 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.30 μm||3.76 μm|
|Pixel Density||5.43 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/24p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 5||TruePic VII|
|DXO Sensor Quality (score)||60||73|
|DXO Color Depth (bits)||21.7||23.0|
|DXO Dynamic Range (EV)||10.8||12.5|
|DXO Low Light (ISO)||644||842|
|Screen Specs||Canon G1 X||Olympus E-M5 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||74%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||922k dots||1037k dots|
|LCD Attachment||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon G1 X||Olympus E-M5 II|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||1.9 shutter flaps/s||10 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-II|
|Connectivity Specs||Canon G1 X||Olympus E-M5 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon G1 X||Olympus E-M5 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||250 shots per charge||310 shots per charge|
117 x 81 x 65 mm
(4.6 x 3.2 x 2.6 in)
124 x 85 x 45 mm
(4.9 x 3.3 x 1.8 in)
|Camera Weight||534 g (18.8 oz)||469 g (16.5 oz)|
