Canon G1 X Mark II vs Panasonic G5
The Canon PowerShot G1 X Mark II and the Panasonic Lumix DMC-G5 are two digital cameras that were revealed to the public, respectively, in February 2014 and July 2012. The G1X Mark II is a fixed lens compact, while the G5 is a mirrorless interchangeable lens camera. The cameras are based on an 1.5-inch (G1X Mark II) and a Four Thirds (G5) sensor. The Canon has a resolution of 13 megapixels, whereas the Panasonic provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot G1 X Mark II and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

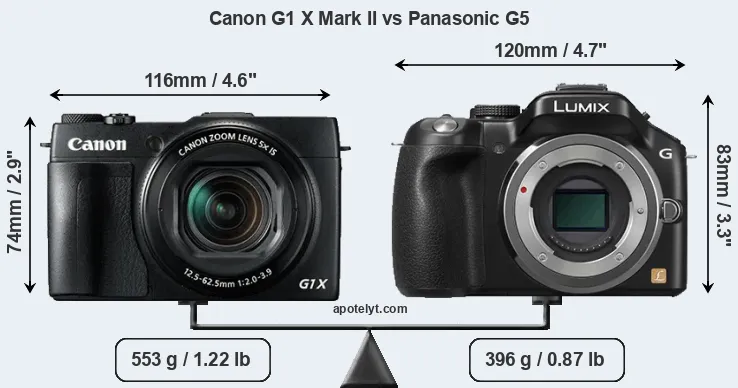

The side-by-side display below illustrates the physical size and weight of the Canon G1 X Mark II and the Panasonic G5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The G5 can be obtained in two different colors (black, silver), while the G1X Mark II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably larger (16 percent) than the Canon G1 X Mark II. In this context, it is worth noting that neither the G1X Mark II nor the G5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the G1X Mark II has a lens built in, whereas the G5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G5 and their specifications in the Micro Four Thirds Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799||ebay.com|
|2.||Panasonic G5||120 mm||83 mm||71 mm||396 g||320||n||Jul 2012||599||ebay.com|
|3.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|4.||Canon XC10||125 mm||102 mm||122 mm||1040 g||370||n||Apr 2015||2,499||ebay.com|
|5.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549||ebay.com|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|7.||Canon S120||100 mm||59 mm||29 mm||217 g||230||n||Aug 2013||449||ebay.com|
|8.||Canon G1 X||117 mm||81 mm||65 mm||534 g||250||n||Jan 2012||799||ebay.com|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799||ebay.com|
|11.||Olympus Stylus 1||116 mm||87 mm||57 mm||402 g||410||n||Oct 2013||699||ebay.com|
|12.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649||ebay.com|
|13.||Panasonic LX100||115 mm||66 mm||55 mm||393 g||300||n||Sep 2014||899||ebay.com|
|14.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599||ebay.com|
|15.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599||ebay.com|
|16.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699||ebay.com|
|17.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon G1 X Mark II features an 1.5-inch sensor and the Panasonic G5 a Four Thirds sensor. The sensor area in the G5 is 14 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.85 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the G5 offers a higher resolution of 15.9 megapixels, compared with 13 MP of the G1X Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.49μm for the G1X Mark II). Moreover, it should be noted that the G1X Mark II is a somewhat more recent model (by 1 year and 6 months) than the G5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Panasonic G5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon G1 X Mark II are 20.8 x 15.6 inches or 52.8 x 39.6 cm for good quality, 16.6 x 12.5 inches or 42.3 x 31.7 cm for very good quality, and 13.9 x 10.4 inches or 35.2 x 26.4 cm for excellent quality prints.
The Canon PowerShot G1 X Mark II has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|2.||Panasonic G5||Four Thirds||15.9||4608||3456||1080/60p||22.3||11.9||643||66|
|8.||Canon G1 X||1.5-inch||14.2||4352||3264||1080/24p||21.7||10.8||644||60|
|11.||Olympus Stylus 1||1/1.7||11.8||3968||2976||1080/30p||20.7||11.6||179||51|
|12.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.4||904||71|
|13.||Panasonic LX100||Four Thirds||12.7||4112||3088||4K/30p||22.3||12.5||553||67|
|14.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|15.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
|16.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|17.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G5 provides a faster frame rate than the G1X Mark II. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the G1X Mark II relies on live view and the rear LCD for framing. That said, the G1X Mark II can be equipped with an optional viewfinder – the EVF-DC1. The table below summarizes some of the other core capabilities of the Canon G1 X Mark II and Panasonic G5 in connection with corresponding information for a sample of similar cameras.
|1.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2/s||Y||Y|
|2.||Panasonic G5||1440||n||3.0 / 920||swivel||Y||1/4000s||6.0/s||Y||n|
|3.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon XC10||none||n||3.0 / 1030||tilting||Y||1/2000s||3.8/s||n||Y|
|5.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4/s||Y||Y|
|6.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|7.||Canon S120||none||n||3.0 / 922||fixed||Y||1/2000s||12.1/s||Y||Y|
|8.||Canon G1 X||optical||n||3.0 / 922||swivel||n||1/4000s||1.9/s||Y||Y|
|9.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|10.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5/s||Y||n|
|11.||Olympus Stylus 1||1440||n||3.0 / 1040||tilting||Y||1/2000s||7.0/s||Y||Y|
|12.||Panasonic G7||2360||n||3.0 / 1040||swivel||Y||1/4000s||7.0/s||Y||n|
|13.||Panasonic LX100||2764||n||3.0 / 921||fixed||n||1/4000s||11.0/s||n||Y|
|14.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0/s||Y||n|
|15.||Panasonic G3||1440||n||3.0 / 460||swivel||Y||1/4000s||4.0/s||Y||n|
|16.||Panasonic GX1||optional||n||3.0 / 460||fixed||Y||1/4000s||4.2/s||Y||n|
|17.||Panasonic G10||202||n||3.0 / 460||fixed||n||1/4000s||2.6/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The Canon G1 X Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the G1X Mark II and the G5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot G1 X Mark II and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|2.||Panasonic G5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon XC10||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Canon S120||-||stereo / mono||-||-||mini||2.0||Y||-||-|
|8.||Canon G1 X||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|10.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Olympus Stylus 1||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|12.||Panasonic G7||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|13.||Panasonic LX100||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|14.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|15.||Panasonic G3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Panasonic GX1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Panasonic G10||Y||mono / -||-||-||mini||2.0||-||-||-|
It is notable that the G1X Mark II offers wifi support, while the G5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the G1X Mark II and the G5 have been discontinued, but can regularly be found used on ebay. The G5 was replaced by the Panasonic G6, while the G1X Mark II was followed by the Canon G1 X Mark III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Is the Canon G1 X Mark II better than the Panasonic G5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon PowerShot G1 X Mark II:
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has a lens built-in, whereas the G5 requires a separate lens.
- More compact: Is smaller (116x74mm vs 120x83mm) and thus needs less room in the bag.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Is somewhat more recent (announced 1 year and 6 months after the G5).
Advantages of the Panasonic Lumix DMC-G5:
- More detail: Has more megapixels (15.9 vs 13MP), which boosts linear resolution by 11%.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster burst: Shoots at higher frequency (6 vs 5.2 flaps/sec) to capture the decisive moment.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (320 versus 240) out of a single battery charge.
- More heavily discounted: Has been on the market for longer (launched in July 2012).
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (8 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon G1 X Mark II and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G1X Mark II and the G5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799||ebay.com|
|2.||Panasonic G5||3/5||+ +||..||..||4.5/5||4.5/5||Jul 2012||599||ebay.com|
|3.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|4.||Canon XC10||..||..||..||80/100||..||..||Apr 2015||2,499||ebay.com|
|5.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549||ebay.com|
|6.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|7.||Canon S120||..||+ +||..||..||4.5/5||4.5/5||Aug 2013||449||ebay.com|
|8.||Canon G1 X||5/5||+||..||76/100||4/5||4.5/5||Jan 2012||799||ebay.com|
|9.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|10.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799||ebay.com|
|11.||Olympus Stylus 1||..||+ +||..||..||4.5/5||4.5/5||Oct 2013||699||ebay.com|
|12.||Panasonic G7||4/5||+ +||..||80/100||5/5||4.5/5||May 2015||649||ebay.com|
|13.||Panasonic LX100||5/5||+ +||..||85/100||5/5||5/5||Sep 2014||899||ebay.com|
|14.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599||ebay.com|
|15.||Panasonic G3||3/5||+ +||..||75/100||4.5/5||5/5||May 2011||599||ebay.com|
|16.||Panasonic GX1||3/5||+||..||77/100||4.5/5||4.5/5||Nov 2011||699||ebay.com|
|17.||Panasonic G10||3/5||..||..||70/100||4/5||4/5||Mar 2010||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 80D vs Panasonic G5
- Canon G1 X Mark II vs Canon G15
- Canon G1 X Mark II vs Canon T100
- Canon G1 X Mark II vs Nikon Df
- Canon G1 X Mark II vs Olympus E-620
- Canon G1 X Mark II vs Panasonic FZ80
- Canon G1 X Mark II vs Ricoh GR II
- Leica V-LUX 1 vs Panasonic G5
- Leica X Vario vs Panasonic G5
- Panasonic G5 vs Panasonic ZS100
- Panasonic G5 vs Ricoh WG-6
- Panasonic G5 vs Sony A6600
Specifications: Canon G1 X Mark II vs Panasonic G5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon G1 X Mark II||Panasonic G5|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-120mm f/2.0-3.9||Micro Four Thirds lenses|
|Launch Date||February 2014||July 2012|
|Launch Price||USD 799||USD 599|
|Sensor Specs||Canon G1 X Mark II||Panasonic G5|
|Sensor Format||1.5" Sensor||Four Thirds Sensor|
|Sensor Size||18.7 x 14.0 mm||17.3 x 13.0 mm|
|Sensor Area||261.8 mm2||224.9 mm2|
|Sensor Diagonal||23.4 mm||21.6 mm|
|Sensor Resolution||13 Megapixels||15.9 Megapixels|
|Image Resolution||4160 x 3120 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.49 μm||3.76 μm|
|Pixel Density||4.96 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||160 - 12,800 ISO|
|Image Processor||DIGIC 6||Venus VII FHD|
|DXO Sensor Quality (score)||58||..|
|DXO Color Depth (bits)||21.5||..|
|DXO Dynamic Range (EV)||10.8||..|
|DXO Low Light (ISO)||581||..|
|Screen Specs||Canon G1 X Mark II||Panasonic G5|
|Viewfinder Type||Viewfinder optional||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||1440k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Canon G1 X Mark II||Panasonic G5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||5.2 shutter flaps/s||6 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon G1 X Mark II||Panasonic G5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon G1 X Mark II||Panasonic G5|
|Battery Life (CIPA)||240 shots per charge||320 shots per charge|
116 x 74 x 66 mm
(4.6 x 2.9 x 2.6 in)
120 x 83 x 71 mm
(4.7 x 3.3 x 2.8 in)
|Camera Weight||553 g (19.5 oz)||396 g (14.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
