Canon D60 vs Olympus E-1

The Canon EOS-D60 and the Olympus E-1 are two digital cameras that were announced, respectively, in February 2002 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D60) and a Four Thirds (E-1) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon D60 versus Olympus E-1
Canon D60 Olympus E-1
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Four Thirds lenses
6.3 MP, APS-C Sensor 4.9 MP, Four Thirds Sensor
no Video no Video
ISO 100-1,000 ISO 100-800 (100 - 3,200)
Optical viewfinder Optical viewfinder
1.8 LCD, 114k dots 1.8 LCD, 134k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 3 shutter flaps per second
not weather sealedWeathersealed body
620 shots per battery charge750 shots per battery charge
150 x 107 x 75 mm, 855 g 141 x 104 x 81 mm, 738 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-D60 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon D60 and the Olympus E-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Size Canon D60 vs Olympus E-1
Compare D60 versus E-1 top
Comparison D60 or E-1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably smaller (9 percent) than the Canon D60. Moreover, the E-1 is markedly lighter (14 percent) than the D60. It is noteworthy in this context that the E-1 is splash and dust-proof, while the D60 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (D60) and the Four Thirds Lens Catalog (E-1).

Concerning battery life, the D60 gets 620 shots out of its BP-511 battery, while the E-1 can take 750 images on a single charge of its BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon D60 5.9 in 4.2 in 3.0 in 30.2 oz 620 n Feb 2002 2,999i

Olympus E-1 5.6 in 4.1 in 3.2 in 26.0 oz 750 Y Jun 2003 1,699i

Canon T7 5.1 in 4.0 in 3.1 in 16.8 oz 500 n Feb 2018 449 i

Canon XC10 4.9 in 4.0 in 4.8 in 36.7 oz .. n Apr 2015 2,499i

Canon 40D 5.7 in 4.3 in 2.9 in 29.0 oz 750 n Aug 2007 1,299i

Canon 30D 5.7 in 4.2 in 2.9 in 27.7 oz 750 n Feb 2006 1,399i

Canon 20D 5.7 in 4.2 in 2.8 in 27.2 oz 700 n Aug 2004 1,499i

Canon 10D 5.9 in 4.2 in 3.0 in 30.0 oz 500 n Feb 2003 1,999i

Canon Rebel 5.6 in 3.9 in 2.8 in 22.9 oz 400 n Aug 2003 899i

Canon D30 5.9 in 4.2 in 3.0 in 26.5 oz 540 n May 2000 2,999i

Contax N Digital 6.0 in 5.4 in 3.1 in 34.9 oz 100 n Feb 2002 7,399i

Leica Digilux 3 5.7 in 3.4 in 3.0 in 21.4 oz 750 n Sep 2006 1,499i

Nikon D100 5.7 in 4.6 in 3.2 in 27.5 oz 370 n Feb 2002 1,999i

Olympus E-5 5.6 in 4.6 in 3.0 in 30.8 oz 750 Y Sep 2010 1,699i

Olympus E-3 5.6 in 4.6 in 3.0 in 30.9 oz 750 Y Oct 2007 1,699i

Olympus E-330 5.5 in 3.4 in 2.8 in 22.5 oz 750 n Jan 2006 999i

Olympus E-300 5.8 in 3.3 in 2.5 in 22.0 oz 750 n Sep 2004 799i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-1 was launched at a markedly lower price (by 43 percent) than the D60, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon D60 features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the D60 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

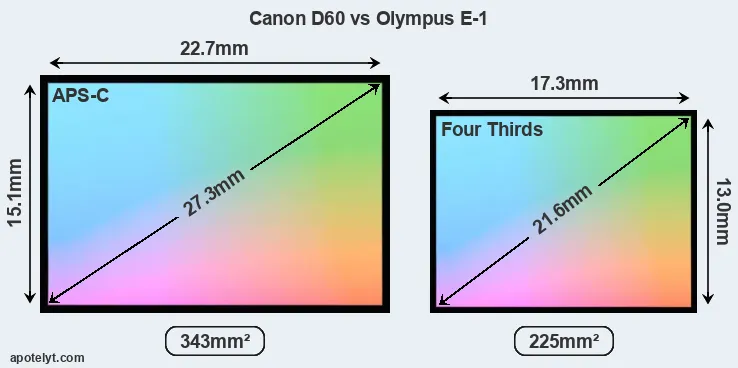

Canon D60 and Olympus E-1 sensor measures

With 6.3MP, the D60 offers a higher resolution than the E-1 (4.9MP), but the D60 nevertheless has larger individual pixels (pixel pitch of 7.38μm versus 6.78μm for the E-1) due to its larger sensor. However, the E-1 is a somewhat more recent model (by 1 year and 4 months) than the D60, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon D60 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D60 for good quality output (200 dots per inch) amounts to 15.4 x 10.2 inches or 39 x 26 cm, for very good quality (250 dpi) 12.3 x 8.2 inches or 31.2 x 20.8 cm, and for excellent quality (300 dpi) 10.2 x 6.8 inches or 26 x 17.3 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Canon EOS-D60 has a native sensitivity range from ISO 100 to ISO 1000. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

D60 versus E-1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon D60 APS-C 6.3 3072 2048none........

Olympus E-1 Four Thirds 4.9 2560 1920none........

Canon T7 APS-C 24.0 6000 40001080/30p........

Canon XC10 1-inch 12.0 4000 30004K/30p........

Canon 40D APS-C 10.1 3888 2592none22.111.370364

Canon 30D APS-C 8.2 3504 2336none21.510.873659

Canon 20D APS-C 8.2 3504 2336none21.911.072162

Canon 10D APS-C 6.3 3072 2048none21.110.957157

Canon Rebel APS-C 6.3 3072 2048none21.010.854455

Canon D30 APS-C 3.1 2160 1440none........

Contax N Digital Full Frame 6.1 3040 2008none........

Leica Digilux 3 Four Thirds 7.4 3136 2352none........

Nikon D100 APS-C 6.0 3008 2000none........

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156

Olympus E-330 Four Thirds 7.4 3136 2352none........

Olympus E-300 Four Thirds 8.0 3264 2448none........
Neither the D60 nor the E-1 offer Live View, so that they cannot project the live image that the sensor receives onto the rear screen. Moreover, both cameras are still-image focused and cannot record videos.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The D60 and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the D60 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the D60 has a higher magnification (0.54x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon D60 and Olympus E-1 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon D60optical Y 1.8 114 fixed n 1/4000s 3.0 Y n

Olympus E-1optical Y 1.8 134 fixed n 1/4000s 3.0 n n

Canon T7optical n 3.0 920 fixed n 1/4000s 3.0 Y n

Canon XC10none n 3.0 1030 tilting Y 1/2000s 3.8 n Y

Canon 40Doptical Y 3.0 230 fixed n 1/8000s 6.5 Y n

Canon 30Doptical Y 2.5 230 fixed n 1/8000s 5.0 Y n

Canon 20Doptical Y 1.8 118 fixed n 1/8000s 5.0 Y n

Canon 10Doptical Y 1.8 118 fixed n 1/4000s 3.0 Y n

Canon Rebeloptical n 1.8 118 fixed n 1/4000s 2.5 Y n

Canon D30optical Y 1.8 114 fixed n 1/4000s 3.0 Y n

Contax N Digitaloptical Y 2.0 200 fixed n 1/8000s 4.0 n n

Leica Digilux 3optical n 2.5 207 fixed n 1/4000s 3.0 Y n

Nikon D100optical Y 1.8 118 fixed n 1/4000s 3.0 Y n

Olympus E-5optical Y 3.0 920 swivel n 1/8000s 5.0 Y Y

Olympus E-3optical Y 2.5 230 swivel n 1/8000s 5.0 Y Y

Olympus E-330optical n 2.5 215 tilting n 1/4000s 3.0 Y n

Olympus E-300optical n 1.8 134 fixed n 1/4000s 2.5 Y n

One difference between the cameras concerns the presence of an on-board flash. The D60 has one, while the E-1 does not. While the built-in flash of the D60 is not very powerful, it can at times be useful as a fill-in light.

The D60 writes its imaging data to Compact Flash cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D60 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-D60 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon D60Y-----1.1---

Olympus E-1Y-----2.0---

Canon T7Ymonomono--mini2.0YY-

Canon XC10YstereomonoYYmini2.0YY-

Canon 40DY-----2.0---

Canon 30DY-----2.0---

Canon 20DY-----1.1---

Canon 10DY-----1.1---

Canon RebelY-----1.1---

Canon D30Y-----1.0---

Contax N DigitalY-----FW---

Leica Digilux 3Ystereomono---2.0---

Nikon D100Y-----1.1---

Olympus E-5Ystereo---mini2.0---

Olympus E-3Y-----2.0---

Olympus E-330Y-----2.0---

Olympus E-300Y-----2.0---

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D60 and the E-1 have been discontinued, but can regularly be found used on eBay. The D60 was replaced by the Canon 10D, while the E-1 was followed by the Olympus E-3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.

Review summary

So what conclusions can be drawn? Is the Canon D60 better than the Olympus E-1 or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Reasons to prefer the Canon EOS-D60:

  • More detail: Offers more megapixels (6.3 vs 4.9MP) with a 15% higher linear resolution.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.48x).
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More heavily discounted: Has been on the market for longer (launched in February 2002).

ilogo

Advantages of the Olympus E-1:

  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • More detailed LCD: Has a higher resolution rear screen (134k vs 114k dots).
  • Less heavy: Has a lower weight (by 117g or 14 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (750 versus 620) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
  • More modern: Was introduced somewhat (1 year and 4 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the E-1 comes out slightly ahead of the D60 (9 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D60 08:09 E-1

How about other alternatives? Do the specifications of the Canon D60 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D60 or the E-1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon D60..+ +o.... Feb 2002 2,999i

Olympus E-1..+oo.. Jun 2003 1,699i

Canon T7o..3.5/5..3.5/5 Feb 2018 449 i

Canon XC10..80/100...... Apr 2015 2,499i

Canon 40D+ ++ +4.5/5o4.5/5 Aug 2007 1,299i

Canon 30D+ ++ +oo.. Feb 2006 1,399i

Canon 20D..+ +..o.. Aug 2004 1,499i

Canon 10D..+ +..o.. Feb 2003 1,999i

Canon Rebel..+ +..o.. Aug 2003 899i

Canon D30..+ +...... May 2000 2,999i

Contax N Digital.......... Feb 2002 7,399i

Leica Digilux 3.......... Sep 2006 1,499i

Nikon D100..+ +oo.. Feb 2002 1,999i

Olympus E-5..75/1004/5..4.5/5 Sep 2010 1,699i

Olympus E-388/100+ +oo4/5 Oct 2007 1,699i

Olympus E-330..+o3.5/5.. Jan 2006 999i

Olympus E-300..+oo4.5/5 Sep 2004 799i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon D60:
Check Ebay offers
Olympus E-1:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon D60 vs Olympus E-1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon D60 Olympus E-1
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Four Thirds lenses
    Launch Date February 2002 June 2003
    Launch Price USD 2,999 USD 1,699
    Sensor Specs Canon D60 Olympus E-1
    Sensor Technology CMOS CCD
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.7 x 15.1 mm 17.3 x 13.0 mm
    Sensor Area 342.77 mm2 224.9 mm2
    Sensor Diagonal 27.3 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 6.3 Megapixels 4.9 Megapixels
    Image Resolution 3072 x 2048 pixels 2560 x 1920 pixels
    Pixel Pitch 7.38 μm 6.78 μm
    Pixel Density 1.84 MP/cm2 2.19 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100 - 1,000 ISO 100 - 800 ISO
    ISO Boost no Enhancement 100 - 3,200 ISO
    Screen Specs Canon D60 Olympus E-1
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.54x 0.48x
    Top-Level Screen Control Panel Control Panel
    Rear LCD Size 1.8inch 1.8inch
    LCD Resolution 114k dots 134k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon D60 Olympus E-1
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 3 shutter flaps/s 3 shutter flaps/s
    Fill Flash Build-in Flash no On-Board Flash
    Storage Medium CF cards CF or XD cards
    Second Storage Option Single card slot Dual card slots
    Connectivity Specs Canon D60 Olympus E-1
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 1.1 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Canon D60 Olympus E-1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type BP-511 BLM-1
    Battery Life (CIPA)620 shots per charge750 shots per charge
    Body Dimensions 150 x 107 x 75 mm
    (5.9 x 4.2 x 3.0 in)
    141 x 104 x 81 mm
    (5.6 x 4.1 x 3.2 in)
    Camera Weight 855 g (30.2 oz) 738 g (26.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon D60 vs Olympus E-1

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
