Canon 850D vs Olympus E-M1X
The Canon EOS 850D (called Canon T8i in some regions) and the Olympus OM-D E-M1X are two digital cameras that were announced, respectively, in February 2020 and January 2019. The 850D is a DSLR, while the E-M1X is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (850D) and a Four Thirds (E-M1X) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 850D and the Olympus OM-D E-M1X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 850D and the Olympus E-M1X are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M1X can be obtained in two different colors (black, silver), while the 850D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1X is considerably larger (57 percent) than the Canon 850D. Moreover, the E-M1X is substantially heavier (94 percent) than the 850D. It is noteworthy in this context that the E-M1X is splash and dust-proof, while the 850D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (850D) and the Micro Four Thirds Lens Catalog (E-M1X). Mirrorless cameras, such as the E-M1X, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 850D gets 800 shots out of its LP-E17 battery, while the E-M1X can take 870 images on a single charge of its BLH-1 power pack. As can be seen in the images above, the E-M1X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the E-M1X can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 850D||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|2.||Olympus E-M1X||144 mm||147 mm||75 mm||997 g||870||Y||Jan 2019||2,999|
|3.||Canon RP||133 mm||85 mm||70 mm||485 g||250||n||Feb 2019||1,299|
|4.||Canon 250D||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|5.||Canon G5 X Mark II||111 mm||61 mm||46 mm||340 g||230||n||Jul 2019||899|
|6.||Canon G7 X Mark III||105 mm||61 mm||41 mm||304 g||235||n||Jul 2019||749|
|7.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|8.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|9.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|10.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|11.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|12.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|13.||Olympus E-M1 III||134 mm||91 mm||69 mm||580 g||420||Y||Feb 2020||1,799|
|14.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|15.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|16.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|17.||Sony A900||156 mm||117 mm||82 mm||895 g||880||Y||Sep 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 850D was launched at a markedly lower price (by 75 percent) than the E-M1X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

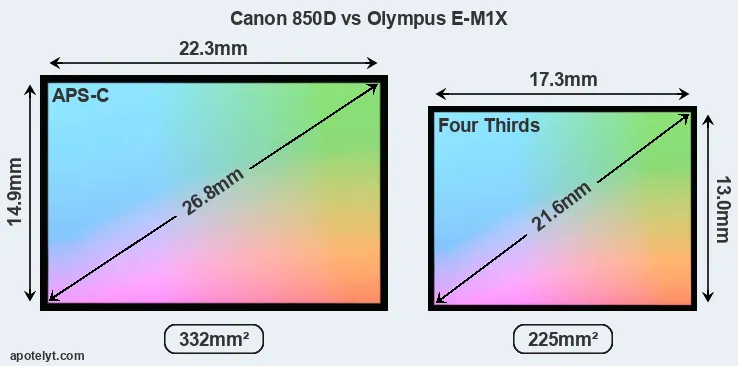

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 850D features an APS-C sensor and the Olympus E-M1X a Four Thirds sensor. The sensor area in the E-M1X is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 850D has a native 3:2 aspect ratio, while the one in the E-M1X offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the 850D offers a higher resolution than the E-M1X (20.2MP), but the 850D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 3.34μm for the E-M1X) due to its larger sensor. Moreover, the 850D is a somewhat more recent model (by 1 year) than the E-M1X, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M1X has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 850D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 850D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M1X are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
Unlike the 850D, the E-M1X has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 850D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus OM-D E-M1X are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-M1X||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|3.||Canon RP||Full Frame||26.2||6240||4160||4K/30p||..||..||..||..|
|5.||Canon G5 X Mark II||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|6.||Canon G7 X Mark III||1-inch||20.0||5472||3648||4K/30p||..||..||..||..|
|13.||Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|14.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|15.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|16.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|17.||Sony A900||Full Frame||24.4||6048||4032||none||23.7||12.3||1431||79|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M1X provides a faster frame rate than the 850D. It can shoot movie footage at 4K/30p, while the Canon is limited to 4K/24p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1X has an electronic viewfinder (2360k dots), while the 850D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1X offers a wider field of view (100%) than the one in the 850D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1X has a higher magnification (0.83x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 850D and Olympus E-M1X along with similar information for a selection of comparators.
|5.||Canon G5 X Mark II||2360||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|6.||Canon G7 X Mark III||none||n||3.0||1040||tilting||Y||1/2000s||30||Y||Y|
|13.||Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|14.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|15.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The 850D has one, while the E-M1X does not. While the built-in flash of the 850D is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1X is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 850D and the Olympus E-M1X both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 850D and the E-M1X write their files to SDXC cards. The E-M1X features dual card slots, which can be very useful in case a memory card fails. In contrast, the 850D only has one slot. The E-M1X supports UHS-II cards (on both slots), while the 850D can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 850D and Olympus OM-D E-M1X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Canon G5 X Mark II||-||stereo||mono||-||-||micro||3.1||Y||-||Y|
|6.||Canon G7 X Mark III||-||stereo||mono||Y||-||micro||3.1||Y||-||Y|
|13.||Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
|14.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|15.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
It is notable that the E-M1X has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 850D lacks such a headphone port.
Studio photographers will appreciate that the Olympus E-M1X (unlike the 850D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the E-M1X has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 850D and the E-M1X are recent models that are part of the current product line-up. The 850D replaced the earlier Canon 800D, while the E-M1X does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is the Canon 850D better than the Olympus E-M1X or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 850D:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More compact: Is smaller (131x103mm vs 144x147mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 482g or 48 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year after the E-M1X).
Arguments in favor of the Olympus OM-D E-M1X:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher movie framerates (4K/30p versus 4K/24p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.83x vs 0.51x).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 7.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in January 2019).
If the count of individual advantages (bullet points above) is taken as a guide, the E-M1X is the clear winner of the contest (21 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 850D and the Olympus E-M1X place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 850D and the E-M1X in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 850D||4/5||+||80/100||4/5||3.5/5||Feb 2020||749|
|2.||Olympus E-M1X||4.5/5||o||..||4.5/5||..||Jan 2019||2,999|
|3.||Canon RP||4/5||+||..||4.5/5||4/5||Feb 2019||1,299|
|4.||Canon 250D||..||o||79/100||4/5||4/5||Apr 2019||599|
|5.||Canon G5 X Mark II||4/5||+||82/100||..||4/5||Jul 2019||899|
|6.||Canon G7 X Mark III||..||+ +||81/100||4/5||..||Jul 2019||749|
|7.||Canon 2000D||..||o||..||3.5/5||3.5/5||Feb 2018||449|
|8.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|9.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|10.||Canon 800D||4.5/5||..||80/100||4.5/5||4/5||Feb 2017||749|
|11.||Canon 750D||5/5||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|12.||Canon 760D||5/5||+||77/100||4.5/5||4.5/5||Feb 2015||649|
|13.||Olympus E-M1 III||5/5||..||83/100||4.5/5||4/5||Feb 2020||1,799|
|14.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|15.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|16.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|17.||Sony A900||..||+ +||+ +||4.5/5||5/5||Sep 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 850D vs Olympus E-M1X
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 850D||Olympus E-M1X|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2020||January 2019|
|Launch Price||USD 749||USD 2,999|
|Sensor Specs||Canon 850D||Olympus E-M1X|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.72 μm||3.34 μm|
|Pixel Density||7.22 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/24p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||64 - 25,600 ISO|
|Image Processor||DIGIC 8||Dual TruePic VIII|
|Screen Specs||Canon 850D||Olympus E-M1X|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Shooting Specs||Canon 850D||Olympus E-M1X|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||7.5 shutter flaps/s||18 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Canon 850D||Olympus E-M1X|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 850D||Olympus E-M1X|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||800 shots per charge||870 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
131 x 103 x 76 mm
(5.2 x 4.1 x 3.0 in)
144 x 147 x 75 mm
(5.7 x 5.8 x 3.0 in)
|Camera Weight||515 g (18.2 oz)||997 g (35.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
