Canon 800D vs Leica V-LUX 4

The Canon EOS 800D (called Canon T7i in some regions) and the Leica V-LUX 4 are two digital cameras that were announced, respectively, in February 2017 and September 2012. The 800D is a DSLR, while the V-LUX 4 is a fixed lens compact. The cameras are based on an APS-C (800D) and a 1/2.3-inch (V-LUX 4) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 800D		Leica V-LUX 4
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		25-600mm f/2.8
24 MP – APS-C sensor		12 MP – 1/2.3" sensor
1080/60p Video		1080/60p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-3,200 (100 - 6,400)
Optical viewfinder		Electronic viewfinder (1312k dots)
3.0" LCD – 1040k dots		3.0" LCD – 460k dots
Swivel touchscreen		Swivel screen (not touch-sensitive)
6 shutter flaps per second		12 shutter flaps per second
600 shots per battery charge		540 shots per battery charge
131 x 100 x 76 mm, 532 g		125 x 87 x 110 mm, 588 g

Check 800D offers at
ebay.com
Check V-LUX 4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 800D and the Leica V-LUX 4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

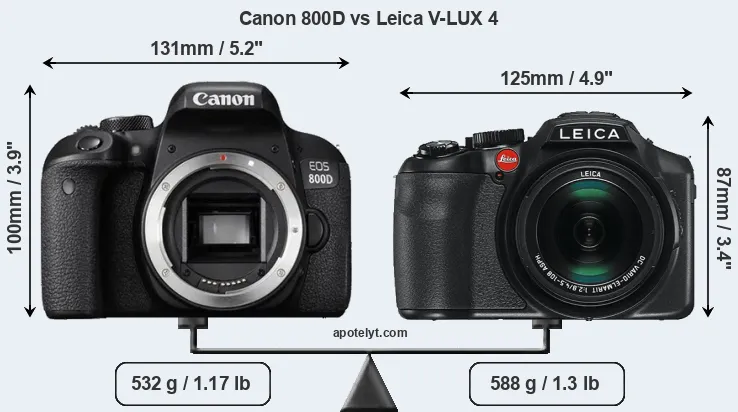

An illustration of the physical size and weight of the Canon 800D and the Leica V-LUX 4 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica V-LUX 4 is notably smaller (17 percent) than the Canon 800D. In this context, it is worth noting that neither the 800D nor the V-LUX 4 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX 4 has a lens built in, whereas the 800D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 800D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 800D gets 600 shots out of its Canon LP-E17 battery, while the V-LUX 4 can take 540 images on a single charge of its Leica BP-DC12 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
2.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	949	ebay.com
3.		Canon 850D	131 mm	103 mm	76 mm	515 g	800	n	Feb 2020	749	ebay.com
4.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
6.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
8.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
10.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
11.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
12.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
13.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
14.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	429	ebay.com
15.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	949	ebay.com
16.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	849	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 800D features an APS-C sensor and the Leica V-LUX 4 a 1/2.3-inch sensor. The sensor area in the V-LUX 4 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 800D has a native 3:2 aspect ratio, while the one in the V-LUX 4 offers a 4:3 aspect.

With 24MP, the 800D offers a higher resolution than the V-LUX 4 (12MP), but the 800D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.53μm for the V-LUX 4) due to its larger sensor. Moreover, the 800D is a much more recent model (by 4 years and 4 months) than the V-LUX 4, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the V-LUX 4 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 800D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 800D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica V-LUX 4 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The 800D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 800D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Leica V-LUX 4 are ISO 100 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

In terms of underlying technology, the 800D is build around a CMOS sensor, while the V-LUX 4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
2.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
3.		Canon 850D	APS-C	24.0	6000	4000	4K/24p	24.0	13.5	1873	83
4.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
10.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
13.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
14.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
15.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
16.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 4 has an electronic viewfinder (1312k dots), while the 800D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the V-LUX 4 offers a wider field of view (100%) than the one in the 800D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 800D has a higher magnification (0.51x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 800D and Leica V-LUX 4 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
2.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
3.		Canon 850D	optical	n	3.0 / 1040	swivel	Y	1/4000s	7.5/s	Y	n
4.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
10.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
13.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
14.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
15.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
16.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 800D has a touchscreen, while the V-LUX 4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the 800D and the V-LUX 4 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 800D and Leica V-LUX 4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon 850D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
4.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
15.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

It is notable that the 800D offers wifi support, while the V-LUX 4 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the 800D and the V-LUX 4 have been discontinued, but can regularly be found used on ebay. The V-LUX 4 was replaced by the Leica V-LUX Typ 114, while the 800D was followed by the Canon 850D. Further information on the features and operation of the 800D and V-LUX 4 can be found, respectively, in the Canon 800D Manual (free pdf) or the online Leica V-LUX 4 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon 800D and the Leica V-LUX 4? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS 800D:

• More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.51x vs 0.46x).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (600 versus 540) on a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 4 years and 4 months of technical progress since the V-LUX 4 launch.

Arguments in favor of the Leica V-LUX 4:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Faster burst: Shoots at higher frequency (12 vs 6 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 800D requires a separate lens.
• More compact: Is smaller (125x87mm vs 131x100mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the 800D is the clear winner of the match-up (17 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 800D and the Leica V-LUX 4 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 800D or the V-LUX 4. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
2.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	949	ebay.com
3.		Canon 850D	4/5	+	3/5	80/100	4/5	3.5/5	Feb 2020	749	ebay.com
4.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
6.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
8.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
9.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
10.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
11.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
12.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
13.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
14.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	429	ebay.com
15.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	949	ebay.com
16.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	849	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
