Canon 7D II versus Olympus E-M5 II

The Canon EOS 7D Mark II and the Olympus OM-D E-M5 Mark II are two enthusiast cameras that were officially introduced, respectively, in September 2014 and February 2015. The 7D Mark II is a DSLR, while the E-M5 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (7D Mark II) and a Four Thirds sensor. The Canon has a resolution of 20 megapixel, whereas the Olympus provides 15.9 MP.

Body comparison

An illustration of the physical size and weight of the Canon 7D II and the Olympus E-M5 II is provided in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter. You can also toggle the display to switch to a percentage comparison if you prefer that the measures are being expressed in relative terms (in this case, the camera on the left side – the 7D Mark II – represents the basis for the calculations across all the size and weight measures).

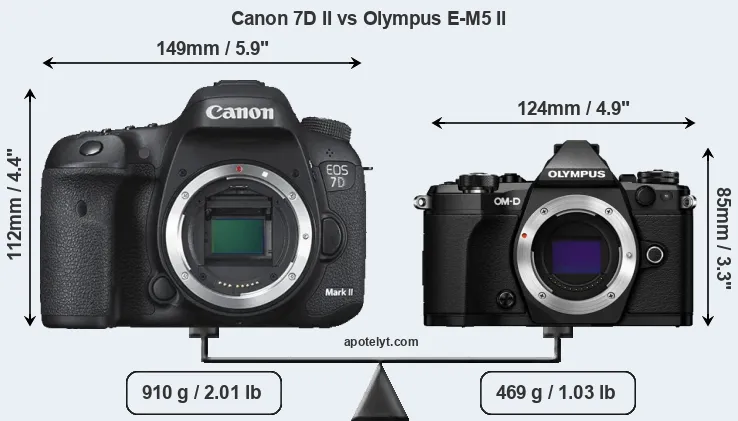

Canon 7D II vs Olympus E-M5 II front
7D Mark II versus E-M5 II top view
7D Mark II and E-M5 II rear side
Body view (7D Mark II on the left)

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is considerably smaller (37 percent) than the Canon 7D II. Moreover, the E-M5 II is substantially lighter (48 percent) than the 7D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can find an overview of optics for the two cameras in the Canon EF Lens Catalog (7D Mark II) and the Micro Four Thirds Lens Catalog (E-M5 II). Mirrorless cameras, such as the E-M5 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
Camera Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(y/n)
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 7D II (⇒ rgt) 149 mm 112 mm 78 mm 910 g 670 YES 2014 1,799 latest check
Olympus E-M5 II (⇒ lft) 124 mm 85 mm 45 mm 469 g 310 YES 2015 1,099 latest check
Canon 80D (⇒ lft | rgt) 139 mm 105 mm 79 mm 730 g 960 YES 2016 1,199 latest check
Canon T6i (⇒ lft | rgt) 132 mm 101 mm 78 mm 555 g 440 no 2015 749discont. check
Canon T6s (⇒ lft | rgt) 132 mm 101 mm 78 mm 565 g 440 no 2015 849discont. check
Canon G3 X (⇒ lft | rgt) 123 mm 77 mm 105 mm 733 g 300 YES 2015 999 latest check
Canon T5i (⇒ lft | rgt) 133 mm 100 mm 79 mm 580 g 440 no 2013 649discont. check
Canon 70D (⇒ lft | rgt) 139 mm 104 mm 79 mm 755 g 920 YES 2013 1,199discont. check
Canon SL1 (⇒ lft | rgt) 117 mm 91 mm 69 mm 407 g 380 no 2013 549discont. check
Canon 6D (⇒ lft | rgt) 145 mm 111 mm 71 mm 770 g 1090 YES 2012 2,099discont. check
Canon 60D (⇒ lft | rgt) 145 mm 106 mm 79 mm 755 g 1100 YES 2010 1,399discont. check
Canon 7D (⇒ lft | rgt) 148 mm 111 mm 74 mm 860 g 800 YES 2009 1,699discont. check
Olympus E-M1 II (⇒ lft | rgt) 134 mm 91 mm 67 mm 574 g 440 YES 2016 1,999 latest check
Olympus E-M10 II (⇒ lft | rgt) 120 mm 83 mm 47 mm 390 g 320 no 2015 799discont. check
Olympus E-M10 (⇒ lft | rgt) 119 mm 82 mm 46 mm 396 g 320 no 2014 699discont. check
Olympus E-M1 (⇒ lft | rgt) 130 mm 94 mm 63 mm 497 g 350 YES 2013 1,399discont. check
Olympus E-M5 (⇒ lft | rgt) 122 mm 89 mm 43 mm 425 g .. YES 2012 1,299discont. check

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M5 II was launched at a markedly lower price (by 39 percent) than the 7D Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 7D II features an APS-C sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 7D Mark II has a native 3:2 aspect ratio, while the one in the E-M5 II offers a 4:3 aspect.

Canon 7D II and Olympus E-M5 II sensor measures
Sensor size

With 20MP, the 7D Mark II offers a higher resolution than the E-M5 II (15.9MP), but the 7D Mark II nevertheless has larger individual pixels (pixel pitch of 4.10μm versus 3.76μm for the E-M5 II) due to its larger sensor. However, the E-M5 II is a somewhat more recent model (by 4 months) than the 7D Mark II, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

Unlike the 7D Mark II, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

7D Mark II versus E-M5 II MP
Sensor resolution

Consistent information on actual sensor performance is available from DXO Mark for most cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar image quality. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
Camera Sensor
Class
Resolution
(Megapixel)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Canon 7D II (⇒ rgt) APS-C 20.0 5472 3648 1080/60p 22.4 11.8 1082 70
Olympus E-M5 II (⇒ lft) Four Thirds 15.9 4608 3456 1080/60p 23.0 12.5 842 73
Canon 80D (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 23.6 13.2 1135 79
Canon T6i (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p 22.7 12.0 919 71
Canon T6s (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/30p 22.6 12.0 915 70
Canon G3 X (⇒ lft | rgt) 1-inch 20.0 5472 3648 1080/60p 21.4 12.3 521 63
Canon T5i (⇒ lft | rgt) APS-C 17.9 5184 3456 1080/30p 21.7 11.2 681 61
Canon 70D (⇒ lft | rgt) APS-C 20.0 5472 3648 1080/30p 22.5 11.6 926 68
Canon SL1 (⇒ lft | rgt) APS-C 17.9 5184 3456 1080/30p 21.8 11.3 843 63
Canon 6D (⇒ lft | rgt) Full Frame 20.0 5472 3648 1080/30p 23.8 12.1 2340 82
Canon 60D (⇒ lft | rgt) APS-C 17.9 5184 3456 1080/30p 22.2 11.5 813 66
Canon 7D (⇒ lft | rgt) APS-C 17.9 5184 3456 1080/30p 22.0 11.7 854 66
Olympus E-M1 II (⇒ lft | rgt) Four Thirds 20.2 5184 3888 4K/30p 23.7 12.8 1312 80
Olympus E-M10 II (⇒ lft | rgt) Four Thirds 15.9 4608 3456 1080/60p 23.1 12.5 842 73
Olympus E-M10 (⇒ lft | rgt) Four Thirds 15.9 4608 3456 1080/30p 22.8 12.3 884 72
Olympus E-M1 (⇒ lft | rgt) Four Thirds 15.9 4608 3456 1080/30p 23.0 12.7 757 73
Olympus E-M5 (⇒ lft | rgt) Four Thirds 15.9 4608 3456 1080/60i 22.8 12.3 826 71

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), while the 7D Mark II has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon 7D II and Olympus E-M5 II in connection with corresponding information for a sample of similar cameras. The full specs-sheets can be found in the camera manual or, for example, in the dpreview camera hub.

Core Features
Camera Viewfinder
(Type or
'000 dots)
Control
Panel
(Y/n)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(Y/n)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(GN)
Build-in
Stab
Canon 7D II (⇒ rgt) optical YES 3.0 1040 fixed no 8000 10.0 11 no
Olympus E-M5 II (⇒ lft) 2360 no 3.0 1037 swivel YES 8000 10.0 no YES
Canon 80D (⇒ lft | rgt) optical YES 3.0 1040 swivel YES 8000 7.0 12 no
Canon T6i (⇒ lft | rgt) optical no 3.0 1040 swivel YES 4000 5.0 12 no
Canon T6s (⇒ lft | rgt) optical YES 3.0 1040 swivel YES 4000 5.0 12 no
Canon G3 X (⇒ lft | rgt) no no 3.2 1620 tilting YES 2000 5.9 6.8 YES
Canon T5i (⇒ lft | rgt) optical no 3.0 1040 swivel YES 4000 5.0 13 no
Canon 70D (⇒ lft | rgt) optical YES 3.0 1040 swivel YES 8000 7.0 12 no
Canon SL1 (⇒ lft | rgt) optical no 3.0 1040 fixed YES 4000 4.9 9.4 no
Canon 6D (⇒ lft | rgt) optical YES 3.0 1040 fixed no 4000 4.5 no no
Canon 60D (⇒ lft | rgt) optical YES 3.0 1040 swivel no 8000 5.3 13 no
Canon 7D (⇒ lft | rgt) optical YES 3.0 920 fixed no 8000 8.0 12 no
Olympus E-M1 II (⇒ lft | rgt) 2360 no 3.0 1037 swivel YES 8000 18.0 no YES
Olympus E-M10 II (⇒ lft | rgt) 2360 no 3.0 1040 tilting YES 4000 8.0 5.8 YES
Olympus E-M10 (⇒ lft | rgt) 1440 no 3.0 1037 tilting YES 4000 8.0 5.8 YES
Olympus E-M1 (⇒ lft | rgt) 2360 no 3.0 1037 tilting YES 8000 10.0 no YES
Olympus E-M5 (⇒ lft | rgt) 1440 no 3.0 610 tilting YES 4000 9.0 no YES

Both the 7D Mark II and the E-M5 II are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The 7D Mark II replaced the earlier Canon 7D, while the E-M5 II followed on from the Olympus E-M5.

Summary

So what conclusions can be drawn? Is the Canon 7D II better than the Olympus E-M5 II or vice versa? Below is a summary of the relative strengths of each of the two contestants.


logo checkmark

Advantages of the Canon EOS 7D Mark II:

  • More detail: Offers more megapixels (20 vs 15.9MP) with a 14% higher linear resolution.
  • Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Has an LCD display on top to control shooting parameters.
  • Longer lasting: Can take more shots (670 versus 310) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More heavily discounted: Has been on the market for longer (launched in September 2014).

logo checkmark

Arguments in favor of the Olympus OM-D E-M5 Mark II:

  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • More dynamic range: Captures a broader range of light and dark details (0.7 EV of extra DR).
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More compact: Is smaller (124x85mm vs 149x112mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 441g or 48 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Sharper images: Has stabilization technology build-in to reduce the impact of hand-shake.
  • More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
  • More modern: Was introduced somewhat (4 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the E-M5 II is the clear winner of the contest (11 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs.

7D Mark II 07:11 E-M5 II

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the 7D Mark II and the E-M5 II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is why hands-on reviews by experts are important. The table below summarizes the assessments of some of the best known camera review sites. The full reviews are available, respectively, at cameralabs.com, dpreview.com, ephotozine.com, imaging-resource.com, and photographyblog.com.

Review scores
Camera camera
labs
dp
review
ephoto
zine
imaging
resource
photography
blog
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Canon 7D II (⇒ rgt) Rec 84/100 Silver 4/5 5/5 4.5/5 2014 1,799 latest check
Olympus E-M5 II (⇒ lft) HiRec 81/100 Silver 5/5 4.5/5 5/5 2015 1,099 latest check
Canon 80D (⇒ lft | rgt) HiRec 84/100 Silver 4.5/5 4.5/5 4.5/5 2016 1,199 latest check
Canon T6i (⇒ lft | rgt) - 75/100 4.5/5 4.5/5 4.5/5 2015 749discont. check
Canon T6s (⇒ lft | rgt) Rec 77/100 Silver 4.5/5 4.5/5 4.5/5 2015 849discont. check
Canon G3 X (⇒ lft | rgt) Rec - 4.5/5 3.5/5 4/5 2015 999 latest check
Canon T5i (⇒ lft | rgt) - 76/100 Silver 4.5/5 4.5/5 4.5/5 2013 649discont. check
Canon 70D (⇒ lft | rgt) HiRec 83/100 Gold 4.5/5 4.5/5 5/5 2013 1,199discont. check
Canon SL1 (⇒ lft | rgt) Rec 78/100 Gold 4/5 4/5 4/5 2013 549discont. check
Canon 6D (⇒ lft | rgt) HiRec 83/100 Silver 4.5/5 4.5/5 4.5/5 2012 2,099discont. check
Canon 60D (⇒ lft | rgt) 87/100 Rec 79/100 Silver 4/5 5/5 4.5/5 2010 1,399discont. check
Canon 7D (⇒ lft | rgt) 93/100 HiRec 84/100 4.5/5 5/5 4.5/5 2009 1,699discont. check
Olympus E-M1 II (⇒ lft | rgt) HiRec 85/100 Gold 4.5/5 5/5 4.5/5 2016 1,999 latest check
Olympus E-M10 II (⇒ lft | rgt) HiRec 80/100 Silver 5/5 5/5 5/5 2015 799discont. check
Olympus E-M10 (⇒ lft | rgt) - 80/100 Gold 5/5 4.5/5 5/5 2014 699discont. check
Olympus E-M1 (⇒ lft | rgt) HiRec 84/100 Gold 4.5/5 4.5/5 4.5/5 2013 1,399discont. check
Olympus E-M5 (⇒ lft | rgt) HiRec 80/100 Gold 4.5/5 5/5 5/5 2012 1,299discont. check

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
