Canon 7D II vs XS

The Canon EOS 7D Mark II and the Canon EOS Rebel XS (labelled Canon 1000D in some countries) are two digital cameras that were announced, respectively, in September 2014 and June 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The 7D Mark II has a resolution of 20 megapixels, whereas the XS provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 7D II
versus
Canon XS
Canon 7D II   Canon XS
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
20 MP – APS-C sensor 10.1 MP – APS-C sensor
1080/60p Video no Video
ISO 100-16,000 (100 - 51,200) ISO 100-800 (100 - 1,600)
Optical viewfinder Optical viewfinder
3.0" LCD – 1040k dots 2.5" LCD – 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
10 shutter flaps per second 3 shutter flaps per second
Weathersealed bodynot weather sealed
670 shots per battery charge500 shots per battery charge
149 x 112 x 78 mm, 910 g 126 x 98 x 65 mm, 502 g
logo
Check 7D Mark II offers at
ebay.com
logo
Check XS offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 7D Mark II and the Canon EOS Rebel XS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon 7D II and the Canon XS is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

Size Canon 7D II vs Canon XS

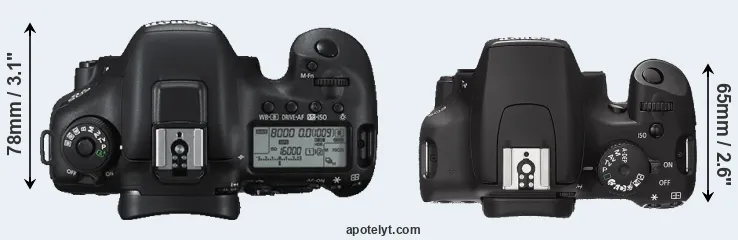

Compare 7D Mark II versus XS top
Comparison 7D Mark II or XS rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XS is notably smaller (26 percent) than the Canon 7D II. Moreover, the XS is substantially lighter (45 percent) than the 7D Mark II. It is worth mentioning in this context that the 7D Mark II is splash and dust resistant, while the XS does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 7D Mark II gets 670 shots out of its LP-E6N battery, while the XS can take 500 images on a single charge of its LP-E5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 7D II 149 mm 112 mm 78 mm 910 g 670 Y Sep 2014 1,799ebay.com
2.

Canon XS 126 mm 98 mm 65 mm 502 g 500 n Jun 2008 449ebay.com
3.

Canon 6D Mark II 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 amazon.com
4.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
5.

Canon G3 X 123 mm 77 mm 105 mm 733 g 300 Y Jun 2015 999 amazon.com
6.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
7.

Canon 70D 139 mm 104 mm 79 mm 755 g 920 Y Jul 2013 1,199ebay.com
8.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
9.

Canon T3 130 mm 100 mm 78 mm 495 g 700 n Feb 2011 449ebay.com
10.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399ebay.com
11.

Canon 7D 148 mm 111 mm 74 mm 860 g 800 Y Sep 2009 1,699ebay.com
12.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799ebay.com
13.

Canon XSi 129 mm 98 mm 62 mm 524 g 500 n Jan 2008 799ebay.com
14.

Canon 40D 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 1,299ebay.com
15.

Nikon D500 147 mm 115 mm 81 mm 860 g 1240 Y Jan 2016 1,999 amazon.com
16.

Nikon D7100 136 mm 107 mm 76 mm 765 g 950 Y Feb 2013 1,199ebay.com
17.

Sony RX10 II 129 mm 88 mm 102 mm 813 g 400 Y Jun 2015 1,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XS was launched at a markedly lower price (by 75 percent) than the 7D Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the XS is 2 percent smaller. They nevertheless have the same format factor of 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 7D II and Canon XS sensor measures

With 20MP, the 7D Mark II offers a higher resolution than the XS (10.1MP), but the 7D Mark II has smaller individual pixels (pixel pitch of 4.10μm versus 5.71μm for the XS). However, the 7D Mark II is a much more recent model (by 6 years and 3 months) than the XS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 7D II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 7D Mark II for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The 7D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 7D Mark II has a native sensitivity range from ISO 100 to ISO 16000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon EOS Rebel XS are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-1600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

7D Mark II versus XS MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 7D Mark II has a notably higher overall DXO score than the XS (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.4 bits higher color depth, 0.9 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270
2.

Canon XS APS-C 10.1 3888 2592none22.010.971962
3.

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285
4.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
5.

Canon G3 X 1-inch 20.0 5472 36481080/60p21.412.352163
6.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
7.

Canon 70D APS-C 20.0 5472 36481080/30p22.511.692668
8.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
9.

Canon T3 APS-C 12.2 4272 2848720/30p21.911.075562
10.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
11.

Canon 7D APS-C 17.9 5184 34561080/30p22.011.785466
12.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.566363
13.

Canon XSi APS-C 12.2 4272 2848none21.910.869261
14.

Canon 40D APS-C 10.1 3888 2592none22.111.370364
15.

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483
16.

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.7125683
17.

Sony RX10 II 1-inch 20.0 5472 36484K/30p23.012.653170

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 7D Mark II indeed provides movie recording capabilities, while the XS does not. The highest resolution format that the 7D Mark II can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 7D Mark II and the XS are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 7D Mark II offers a wider field of view (100%) than the one in the XS (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 7D Mark II has a higher magnification (0.63x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 7D II, the Canon XS, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 7D IIoptical Y3.0 / 1040 fixed n 1/8000s 10.0/s Y n
2.

Canon XSoptical n2.5 / 230 fixed n 1/4000s 3.0/s Y n
3.

Canon 6D Mark IIoptical Y3.0 / 1040 swivel Y 1/4000s 6.5/s n n
4.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
5.

Canon G3 Xoptional n3.2 / 1620 tilting Y 1/2000s 5.9/s Y Y
6.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
7.

Canon 70Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
8.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
9.

Canon T3optical n2.7 / 230 fixed n 1/4000s 3.0/s Y n
10.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
11.

Canon 7Doptical Y3.0 / 920 fixed n 1/8000s 8.0/s Y n
12.

Canon T1ioptical n3.0 / 920 fixed n 1/4000s 3.4/s Y n
13.

Canon XSioptical n3.0 / 230 fixed n 1/4000s 3.5/s Y n
14.

Canon 40Doptical Y3.0 / 230 fixed n 1/8000s 6.5/s Y n
15.

Nikon D500optical Y3.2 / 2359 tilting Y 1/8000s 10.0/s n n
16.

Nikon D7100optical Y3.2 / 1229 fixed n 1/8000s 6.0/s Y n
17.

Sony RX10 II2359 Y3.0 / 1229 tilting n 1/3200s 14.0/s Y Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 7D Mark II, but is missing on the XS is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 7D II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 7D Mark II writes its imaging data to Compact Flash or SDXC cards, while the XS uses SDHC cards. The 7D Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the XS only has one slot. The 7D Mark II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 7D Mark II and Canon EOS Rebel XS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 7D IIYstereo / monoYYmini3.0---
2.

Canon XSY- / ----2.0---
3.

Canon 6D Mark IIYstereo / monoY-mini2.0YYY
4.

Canon 80DYstereo / monoYYmini2.0YY-
5.

Canon G3 XYstereo / monoYYmini2.0YY-
6.

Canon T5Ymono / mono--mini2.0---
7.

Canon 70DYstereo / monoY-mini2.0Y--
8.

Canon 6DYmono / monoY-mini2.0Y--
9.

Canon T3Ystereo / mono--mini2.0---
10.

Canon 60DYmono / monoY-mini2.0---
11.

Canon 7DYmono / -Y-mini2.0---
12.

Canon T1iYmono / mono--mini2.0---
13.

Canon XSiY- / ---mini2.0---
14.

Canon 40DY- / ----2.0---
15.

Nikon D500Ystereo / monoYYmini3.0YYY
16.

Nikon D7100Ystereo / monoYYmini2.0---
17.

Sony RX10 IIYstereo / monoYYmicro2.0YY-

Studio photographers will appreciate that the Canon 7D II (unlike the XS) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 7D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the 7D Mark II and the XS have been discontinued, but can regularly be found used on ebay. The XS was replaced by the Canon T3, while the 7D Mark II does not have a direct successor. Further information on the features and operation of the 7D Mark II and XS can be found, respectively, in the Canon 7D II Manual (free pdf) or the online Canon XS Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 7D II or the Canon XS – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Canon EOS 7D Mark II:

  • More detail: Offers more megapixels (20 vs 10.1MP) with a 41% higher linear resolution.
  • Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
  • More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
  • Broader imaging potential: Can record not only still images but also 1080/60p movies.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.51x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (670 versus 500) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Reflects 6 years and 3 months of technical progress since the XS launch.


Reasons to prefer the Canon EOS Rebel XS:

  • More compact: Is smaller (126x98mm vs 149x112mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 408g or 45 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (75 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in June 2008).

If the count of relative strengths (bullet points above) is taken as a measure, the 7D Mark II is the clear winner of the match-up (22 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

7D Mark II 22:04 XS

How about other alternatives? Do the specifications of the Canon 7D II and the Canon XS place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 7D Mark II or the XS perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 7D II4.5/5+3.5/584/1004/54.5/5 Sep 2014 1,799ebay.com
2.

Canon XS..82/100..+ +3.5/54.5/5 Jun 2008 449ebay.com
3.

Canon 6D Mark II4/5+4/580/1004.5/54/5 Jun 2017 1,999 amazon.com
4.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
5.

Canon G3 X3.5/5+....4.5/54/5 Jun 2015 999 amazon.com
6.

Canon T53/5+....4/54.5/5 Feb 2014 449ebay.com
7.

Canon 70D5/5+ +..83/1004.5/55/5 Jul 2013 1,199ebay.com
8.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
9.

Canon T3..80/100..69/1004/54.5/5 Feb 2011 449ebay.com
10.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 1,399ebay.com
11.

Canon 7D5/5+ +..84/1004.5/54.5/5 Sep 2009 1,699ebay.com
12.

Canon T1i..+ +..74/1004.5/54.5/5 Mar 2009 799ebay.com
13.

Canon XSi..+ +..+ +4/54.5/5 Jan 2008 799ebay.com
14.

Canon 40D..+ +..+ +4.5/54.5/5 Aug 2007 1,299ebay.com
15.

Nikon D5005/5+ +4.7/591/1004.5/55/5 Jan 2016 1,999 amazon.com
16.

Nikon D71005/5+ +..85/1004.5/54.5/5 Feb 2013 1,199ebay.com
17.

Sony RX10 II5/5+ +..82/1004.5/54/5 Jun 2015 1,299ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 7D Mark II offers at
ebay.com
logo
Check XS offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Canon 7D II vs Canon XS

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 7D II Canon XS
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date September 2014 June 2008
    Launch Price USD 1,799 USD 449
    Sensor Specs Canon 7D II Canon XS
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.4 x 15.0 mm 22.2 x 14.8 mm
    Sensor Area 336 mm2 328.56 mm2
    Sensor Diagonal 27 mm 26.7 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 20 Megapixels 10.1 Megapixels
    Image Resolution 5472 x 3648 pixels 3888 x 2592 pixels
    Pixel Pitch 4.10 μm 5.71 μm
    Pixel Density 5.94 MP/cm2 3.07 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video no Video
    ISO Setting 100 - 16,000 ISO 100 - 800 ISO
    ISO Boost 100 - 51,200 ISO 100 - 1,600 ISO
    Image Processor DIGIC 6 (Dual) DIGIC 3
    DXO Sensor Quality (score) 70 62
    DXO Color Depth (bits) 22.4 22
    DXO Dynamic Range (EV) 11.8 10.9
    DXO Low Light (ISO) 1082 719
    Screen Specs Canon 7D II Canon XS
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 95%
    Viewfinder Magnification 0.63x 0.51x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 2.5inch
    LCD Resolution 1040k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon 7D II Canon XS
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 10 shutter flaps/s 3 shutter flaps/s
    Shutter Life Expectancy200 000 actuations100 000 actuations
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF or SDXC cards SDHC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support UHS-I no
    Connectivity Specs Canon 7D II Canon XS
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI no HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support no Wifi no Wifi
    Geotagging GPS built-in no internal GPS
    Body Specs Canon 7D II Canon XS
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type LP-E6N LP-E5
    Battery Life (CIPA)670 shots per charge500 shots per charge
    Body Dimensions 149 x 112 x 78 mm
    (5.9 x 4.4 x 3.1 in)
    126 x 98 x 65 mm
    (5.0 x 3.9 x 2.6 in)
    Camera Weight 910 g (32.1 oz) 502 g (17.7 oz)
    logo
    Check 7D Mark II offers at
    ebay.com
    logo
    Check XS offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 7D II vs Canon XS
