Canon 77D vs SX70
The Canon EOS 77D and the Canon PowerShot SX70 HS are two digital cameras that were announced, respectively, in February 2017 and September 2018. The 77D is a DSLR, while the SX70 is a fixed lens compact. The cameras are based on an APS-C (77D) and a 1/2.3-inch (SX70) sensor. The 77D has a resolution of 24 megapixels, whereas the SX70 provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 77D and the Canon PowerShot SX70 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

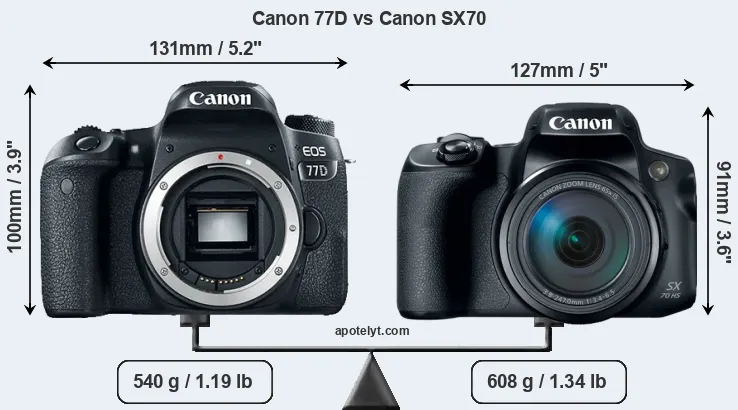

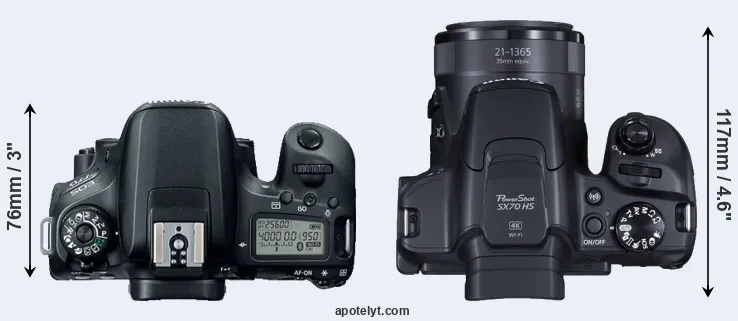

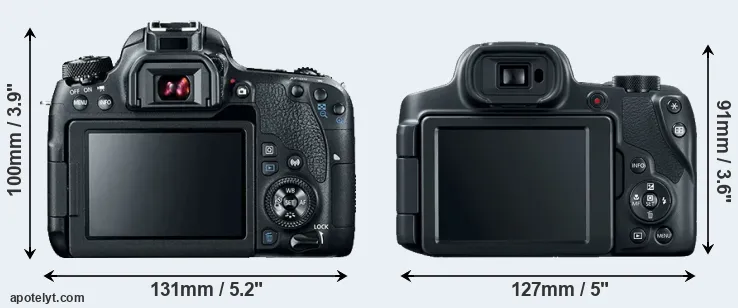

The side-by-side display below illustrates the physical size and weight of the Canon 77D and the Canon SX70. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX70 is notably smaller (12 percent) than the Canon 77D. In this context, it is worth noting that neither the 77D nor the SX70 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX70 has a lens built in, whereas the 77D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 77D and their specifications in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|2.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549||amazon.com|
|3.||Canon 850D||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749||amazon.com|
|4.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|5.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||ebay.com|
|6.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|7.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||amazon.com|
|8.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|9.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|10.||Canon 1300D||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||ebay.com|
|11.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979||ebay.com|
|12.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|13.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX70 was launched at a lower price than the 77D, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 77D features an APS-C sensor and the Canon SX70 a 1/2.3-inch sensor. The sensor area in the SX70 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 77D has a native 3:2 aspect ratio, while the one in the SX70 offers a 4:3 aspect.
Technology-wise, the SX70 uses a more advanced image processing engine (DIGIC 8) than the 77D (DIGIC 7), with benefits for noise reduction, color accuracy, and processing speed.

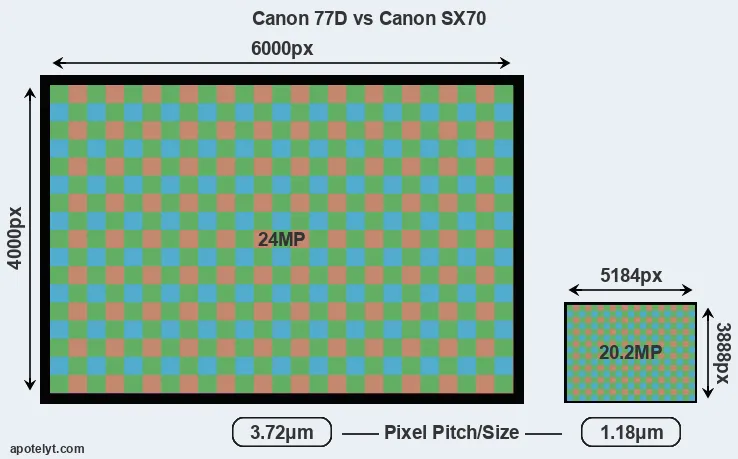

With 24MP, the 77D offers a higher resolution than the SX70 (20.2MP), but the 77D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 1.18μm for the SX70) due to its larger sensor. However, the SX70 is a somewhat more recent model (by 1 year and 7 months) than the 77D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX70 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 77D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 77D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX70 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The 77D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 77D has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Canon PowerShot SX70 HS are ISO 100 to ISO 3200 (no boost).
In terms of underlying technology, the 77D is build around a CMOS sensor, while the SX70 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|7.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX70 provides a better video resolution than the 77D. It can shoot movie footage at 4K/30p, while the 77D is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX70 has an electronic viewfinder (2360k dots), while the 77D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 77D and Canon SX70 along with similar information for a selection of comparators.
|1.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|2.||Canon SX70||2360||n||3.0 / 922||swivel||n||1/2000s||10.0/s||Y||Y|
|3.||Canon 850D||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|4.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon 200D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|7.||Canon G9 X Mark II||none||n||3.0 / 1040||fixed||Y||1/2000s||8.2/s||Y||Y|
|8.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|9.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|10.||Canon 1300D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|11.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0/s||Y||n|
|12.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|13.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 77D, but is missing on the SX70 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Canon 77D has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 77D and the SX70 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 77D and Canon PowerShot SX70 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|2.||Canon SX70||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|3.||Canon 850D||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 200D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon G9 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|8.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|9.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|10.||Canon 1300D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|11.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|13.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
It is notable that the 77D has a hotshoe, while the SX70 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The SX70 is a recent model that features in the current product line-up of Canon. In contrast, the 77D has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 77D from Canon. Further information on the features and operation of the 77D and SX70 can be found, respectively, in the Canon 77D Manual (free pdf) or the online Canon SX70 Manual.
So how do things add up? Which of the two cameras – the Canon 77D or the Canon SX70 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 77D:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (600 versus 325) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been on the market for longer (launched in February 2017).
Advantages of the Canon PowerShot SX70 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better jpgs: Has a more modern image processing engine (DIGIC 8 vs DIGIC 7).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the 77D requires a separate lens.
- More compact: Is smaller (127x91mm vs 131x100mm) and will fit more readily into a bag.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (1 year and 7 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the 77D is the clear winner of the match-up (18 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 77D and the Canon SX70 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 77D and the SX70 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|2.||Canon SX70||..||+ +||3.5/5||..||3.5/5||3.5/5||Sep 2018||549||amazon.com|
|3.||Canon 850D||4/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749||amazon.com|
|4.||Canon 2000D||3/5||o||3.5/5||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|5.||Canon 200D||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549||ebay.com|
|6.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|7.||Canon G9 X Mark II||4/5||..||4/5||75/100||4.5/5||4.5/5||Jan 2017||529||amazon.com|
|8.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|9.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|10.||Canon 1300D||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449||ebay.com|
|11.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979||ebay.com|
|12.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|13.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 77D vs Canon 7D
- Canon 77D vs Canon T2i
- Canon 77D vs Contax N Digital
- Canon 77D vs Fujifilm X-T20
- Canon 77D vs Olympus E-620
- Canon 77D vs Panasonic FZ330
- Canon SX530 vs Canon SX70
- Canon SX70 vs Fujifilm X-T3
- Canon SX70 vs Leica D-LUX 7
- Canon SX70 vs Nikon Coolpix A
- Canon SX70 vs Olympus E-450
- Canon SX70 vs Olympus E-PL5
Specifications: Canon 77D vs Canon SX70
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 77D||Canon SX70|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||21-1365mm f/3.4-6.5|
|Launch Date||February 2017||September 2018|
|Launch Price||USD 899||USD 549|
|Sensor Specs||Canon 77D||Canon SX70|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||22.3 x 14.9 mm||6.17 x 4.55 mm|
|Sensor Area||332.27 mm2||28.0735 mm2|
|Sensor Diagonal||26.8 mm||7.7 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.72 μm||1.18 μm|
|Pixel Density||7.22 MP/cm2||71.80 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 3,200 ISO|
|ISO Boost||100 - 51,200 ISO||no Enhancement|
|Image Processor||DIGIC 7||DIGIC 8|
|DXO Sensor Quality (score)||78||..|
|DXO Color Depth (bits)||23.6||..|
|DXO Dynamic Range (EV)||13.3||..|
|DXO Low Light (ISO)||971||..|
|Screen Specs||Canon 77D||Canon SX70|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||922k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 77D||Canon SX70|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||6 shutter flaps/s||10 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 77D||Canon SX70|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Canon 77D||Canon SX70|
|Battery Life (CIPA)||600 shots per charge||325 shots per charge|
131 x 100 x 76 mm
(5.2 x 3.9 x 3.0 in)
127 x 91 x 117 mm
(5.0 x 3.6 x 4.6 in)
|Camera Weight||540 g (19.0 oz)||608 g (21.4 oz)|
