Canon 760D vs Panasonic GM1

The Canon EOS 760D (called Canon T6s in some regions) and the Panasonic Lumix DMC-GM1 are two digital cameras that were announced, respectively, in February 2015 and October 2013. The 760D is a DSLR, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (760D) and a Four Thirds (GM1) sensor. The Canon has a resolution of 24 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 760D		Panasonic GM1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		15.8 MP – Four Thirds sensor
1080/30p Video		1080/60i Video
ISO 100-12,800 (100 - 25,600)		ISO 200-25,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1036k dots
Swivel touchscreen		Fixed touchscreen
5 shutter flaps per second		5 shutter flaps per second
440 shots per battery charge		230 shots per battery charge
132 x 101 x 78 mm, 565 g		99 x 55 x 30 mm, 204 g

Check 760D offers at
ebay.com
Check GM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

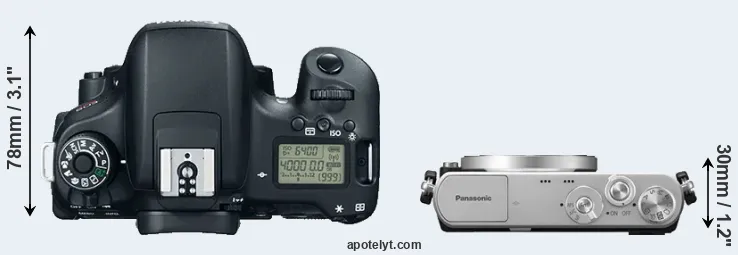

An illustration of the physical size and weight of the Canon 760D and the Panasonic GM1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The GM1 can be obtained in three different colors (black, silver, red), while the 760D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is considerably smaller (59 percent) than the Canon 760D. Moreover, the GM1 is substantially lighter (64 percent) than the 760D. In this context, it is worth noting that neither the 760D nor the GM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (760D) and the Micro Four Thirds Lens Catalog (GM1). Mirrorless cameras, such as the GM1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 760D gets 440 shots out of its Canon LP-E17 battery, while the GM1 can take 230 images on a single charge of its Panasonic DMW-BLH7 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
2.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	749	ebay.com
3.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
4.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
5.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
6.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
8.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
10.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
11.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
13.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	749	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	599	ebay.com
15.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
16.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
17.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 760D was launched at a somewhat lower price (by 13 percent) than the GM1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 760D features an APS-C sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 760D has a native 3:2 aspect ratio, while the one in the GM1 offers a 4:3 aspect.

With 24MP, the 760D offers a higher resolution than the GM1 (15.8MP), but the 760D has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.77μm for the GM1). However, the 760D is a somewhat more recent model (by 1 year and 3 months) than the GM1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 760D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 760D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GM1 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The 760D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 760D has a notably higher overall DXO score than the GM1 (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.3 bits higher color depth, 0.3 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
2.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
3.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
4.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
5.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
6.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
10.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
11.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
16.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
17.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GM1 provides a faster frame rate than the 760D. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 760D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GM1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 760D, the Panasonic GM1, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
3.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
5.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
10.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
11.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
16.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
17.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 760D, but is missing on the GM1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GM1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 760D and the GM1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the 760D has a hotshoe, while the GM1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the 760D and the GM1 have been discontinued, but can regularly be found used on ebay. The GM1 was replaced by the Panasonic GM5, while the 760D was followed by the Canon 77D. Further information on the features and operation of the 760D and GM1 can be found, respectively, in the Canon 760D Manual (free pdf) or the online Panasonic GM1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 760D or the Panasonic GM1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS 760D:

• More detail: Offers more megapixels (24 vs 15.8MP) with a 26% higher linear resolution.
• Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/500s) to freeze action.
• Longer lasting: Can take more shots (440 versus 230) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 3 months after the GM1).

Arguments in favor of the Panasonic Lumix DMC-GM1:

• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (99x55mm vs 132x101mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 361g or 64 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More heavily discounted: Has been on the market for longer (launched in October 2013).

If the count of individual advantages (bullet points above) is taken as a guide, the 760D is the clear winner of the match-up (15 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 760D and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 760D and the GM1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
2.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	749	ebay.com
3.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
4.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
5.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
6.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
8.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
10.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
11.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
13.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	749	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	599	ebay.com
15.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
16.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
17.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
