Canon 760D vs Leica S-E Typ 006
The Canon EOS 760D (called Canon T6s in some regions) and the Leica S-E (Typ 006) are two digital cameras that were revealed to the public, respectively, in February 2015 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (760D) and a medium format (S-E Typ 006) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 37.5 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Leica S-E (Typ 006)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

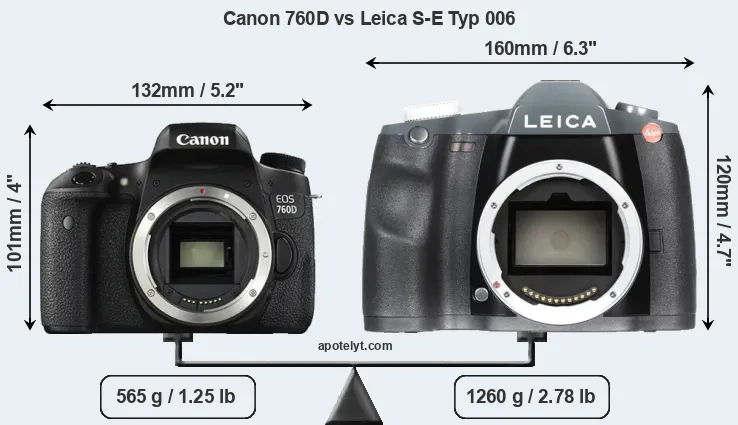

The side-by-side display below illustrates the physical size and weight of the Canon 760D and the Leica S-E Typ 006. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica S-E Typ 006 is considerably larger (44 percent) than the Canon 760D. Moreover, the S-E Typ 006 is substantially heavier (123 percent) than the 760D. It is noteworthy in this context that the S-E Typ 006 is splash and dust-proof, while the 760D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|2.||Leica S-E Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||16,900|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|6.||Canon M5||116 mm||89 mm||61 mm||427 g||295||n||Sep 2016||979|
|7.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|9.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799|
|10.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Leica S3||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2018||18,995|
|13.||Leica SL||147 mm||104 mm||39 mm||847 g||400||Y||Oct 2015||7,450|
|14.||Leica S Typ 007||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2014||24,490|
|15.||Leica S Typ 006||160 mm||120 mm||80 mm||1260 g||..||Y||Sep 2012||21,950|
|16.||Leica S2||160 mm||120 mm||80 mm||1410 g||..||Y||Sep 2008||22,995|
|17.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 760D was launched at a markedly lower price (by 96 percent) than the S-E Typ 006, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 760D features an APS-C sensor and the Leica S-E Typ 006 a medium format sensor. The sensor area in the S-E Typ 006 is 307 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 0.8. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 37.5MP, the S-E Typ 006 offers a higher resolution than the 760D (24MP), but the S-E Typ 006 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 3.72μm for the 760D) due to its larger sensor. However, the 760D is a somewhat more recent model (by 4 months) than the S-E Typ 006, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S-E Typ 006 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica S-E Typ 006 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S-E Typ 006 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Canon 760D are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
The 760D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica S-E (Typ 006) are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Leica S-E Typ 006||Medium Format||37.5||7500||5000||none||25.1||13.7||2763||93|
|9.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|10.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|12.||Leica S3||Medium Format||64.0||9800||6533||4K/24p||25.6||14.4||3143||98|
|13.||Leica SL||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88|
|14.||Leica S Typ 007||Medium Format||37.5||7500||5000||4K/24p||25.1||13.7||2763||93|
|15.||Leica S Typ 006||Medium Format||37.5||7500||5000||none||23.9||12.2||824||76|
|16.||Leica S2||Medium Format||37.5||7500||5000||none||23.9||12.5||2224||82|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The 760D indeed provides movie recording capabilities, while the S-E Typ 006 does not. The highest resolution format that the 760D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 760D and the S-E Typ 006 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the S-E Typ 006 offers a wider field of view (98%) than the one in the 760D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S-E Typ 006 has a higher magnification (0.87x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 760D and Leica S-E Typ 006 along with similar information for a selection of comparators.
|1.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|2.||Leica S-E Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5||n||n|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|6.||Canon M5||2360||n||3.2 / 1620||tilting||Y||1/4000s||9.0||Y||n|
|7.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2||Y||Y|
|10.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Leica S3||optical||Y||3.0 / 922||fixed||n||1/4000s||3.0||n||n|
|13.||Leica SL||4400||Y||3.0 / 1040||fixed||Y||1/8000s||11.0||n||n|
|14.||Leica S Typ 007||optical||Y||3.0 / 922||fixed||n||1/4000s||3.5||n||n|
|15.||Leica S Typ 006||optical||Y||3.0 / 922||fixed||n||1/4000s||1.5||n||n|
|16.||Leica S2||optical||Y||3.0 / 460||fixed||n||1/4000s||1.5||n||n|
|17.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 760D has one, while the S-E Typ 006 does not. While the built-in flash of the 760D is not very powerful, it can at times be useful as a fill-in light.The 760D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the S-E Typ 006 does not have a selfie-screen.
The 760D writes its imaging data to SDXC cards, while the S-E Typ 006 uses Compact Flash or SDXC cards. The S-E Typ 006 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 760D only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Leica S-E (Typ 006) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Leica S-E Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon M5||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Leica S3||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|13.||Leica SL||Y||stereo / mono||Y||Y||full||3.0||Y||-||-|
|14.||Leica S Typ 007||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|15.||Leica S Typ 006||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Leica S2||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
It is notable that the 760D offers wifi support, while the S-E Typ 006 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Leica S-E Typ 006 (unlike the 760D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 760D and the S-E Typ 006 have been discontinued, but can regularly be found used on eBay. The S-E Typ 006 was replaced by the Leica S Typ 007, while the 760D was followed by the Canon 77D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what conclusions can be drawn? Is the Canon 760D better than the Leica S-E Typ 006 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 760D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 1.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (132x101mm vs 160x120mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 695g or 55 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (96 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 4 months after the S-E Typ 006).
Advantages of the Leica S-E (Typ 006):
- More detail: Has more megapixels (37.5 vs 24MP), which boosts linear resolution by 25%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More complete view: Has a viewfinder with a larger field of view (98% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.87x vs 0.51x).
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More heavily discounted: Has been on the market for longer (launched in September 2014).
If the count of individual advantages (bullet points above) is taken as a guide, the 760D emerges as the winner of the contest (15 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 760D and the Leica S-E Typ 006 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 760D or the S-E Typ 006. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|2.||Leica S-E Typ 006||..||..||..||..||..||..||Sep 2014||16,900|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|6.||Canon M5||4/5||+||4/5||82/100||4/5||4/5||Sep 2016||979|
|7.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|9.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799|
|10.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Leica S3||..||..||..||..||..||..||Sep 2018||18,995|
|13.||Leica SL||4/5||..||4/5||84/100||4.5/5||4/5||Oct 2015||7,450|
|14.||Leica S Typ 007||4/5||..||..||..||..||..||Sep 2014||24,490|
|15.||Leica S Typ 006||..||..||..||..||..||..||Sep 2012||21,950|
|16.||Leica S2||..||..||..||..||..||..||Sep 2008||22,995|
|17.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 40D vs Canon 760D
- Canon 760D vs Canon SX740
- Canon 760D vs Nikon 1 V3
- Canon 760D vs Panasonic G2
- Canon 760D vs Sony A7R
- Canon 760D vs Sony H300
- Canon SL1 vs Leica S-E Typ 006
- Canon SX60 vs Leica S-E Typ 006
- Fujifilm X-T100 vs Leica S-E Typ 006
- Leica S-E Typ 006 vs Olympus E-PM1
- Leica S-E Typ 006 vs Sony A6500
- Leica S-E Typ 006 vs Sony H400
Specifications: Canon 760D vs Leica S-E Typ 006
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 760D||Leica S-E Typ 006|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Leica S mount lenses|
|Launch Date||February 2015||September 2014|
|Launch Price||USD 649||USD 16,900|
|Sensor Specs||Canon 760D||Leica S-E Typ 006|
|Sensor Format||APS-C Sensor||Medium Format Sensor|
|Sensor Size||22.3 x 14.9 mm||45.0 x 30.0 mm|
|Sensor Area||332.27 mm2||1350 mm2|
|Sensor Diagonal||26.8 mm||54.1 mm|
|Sensor Resolution||24 Megapixels||37.5 Megapixels|
|Image Resolution||6000 x 4000 pixels||7500 x 5000 pixels|
|Pixel Pitch||3.72 μm||6.00 μm|
|Pixel Density||7.22 MP/cm2||2.78 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||70||..|
|DXO Color Depth (bits)||22.6||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||915||..|
|Screen Specs||Canon 760D||Leica S-E Typ 006|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||922k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 760D||Leica S-E Typ 006|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||1.5 shutter flaps/s|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 760D||Leica S-E Typ 006|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 760D||Leica S-E Typ 006|
|Environmental Sealing||not weather sealed||Weathersealed body|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
160 x 120 x 80 mm
(6.3 x 4.7 x 3.1 in)
|Camera Weight||565 g (19.9 oz)||1260 g (44.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
