Canon 760D vs Leica M10-P

The Canon EOS 760D (called Canon T6s in some regions) and the Leica M10-P are two digital cameras that were officially introduced, respectively, in February 2015 and August 2018. The 760D is a DSLR, while the M10-P is a rangefinder-focusing mirrorless camera. The cameras are based on an APS-C (760D) and a full frame (M10-P) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 23.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 760D		Leica M10-P
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
24 MP – APS-C sensor		23.8 MP – Full Frame sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 100-50,000
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 1037k dots
Swivel touchscreen		Fixed touchscreen
5 shutter flaps per second		5 shutter flaps per second
not weather sealed		Weathersealed body
440 shots per battery charge		210 shots per battery charge
132 x 101 x 78 mm, 565 g		139 x 80 x 39 mm, 660 g

Check 760D offers at
ebay.com
Check M10-P offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 760D and the Leica M10-P? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

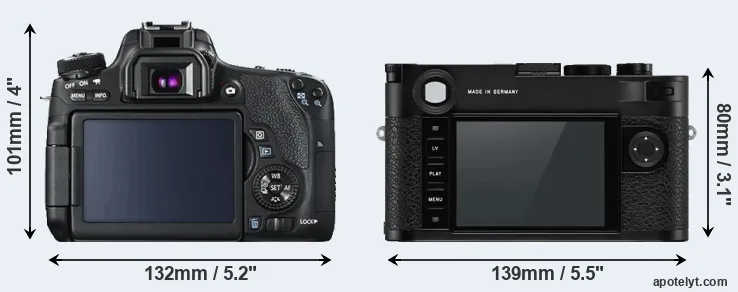

An illustration of the physical size and weight of the Canon 760D and the Leica M10-P is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M10-P can be obtained in two different colors (black, silver), while the 760D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10-P is notably smaller (17 percent) than the Canon 760D. However, the M10-P is markedly heavier (17 percent) than the 760D. It is noteworthy in this context that the M10-P is splash and dust-proof, while the 760D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (760D) and the Leica M Lens Catalog (M10-P).

Concerning battery life, the 760D gets 440 shots out of its Canon LP-E17 battery, while the M10-P can take 210 images on a single charge of its Leica BP-SCL5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
2.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	7,995	ebay.com
3.		Canon 2000D	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
4.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
5.		Canon 800D	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	749	ebay.com
6.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
7.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
8.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
10.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
11.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
12.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	8,995	amazon.com
13.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	8,295	ebay.com
14.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	3,999	ebay.com
15.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
16.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	5,195	ebay.com
17.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 760D was launched at a markedly lower price (by 92 percent) than the M10-P, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 760D features an APS-C sensor and the Leica M10-P a full frame sensor. The sensor area in the M10-P is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon 760D offers a higher resolution of 24 megapixels, compared with 23.8 MP of the Leica M10-P. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 6.00μm for the M10-P). Moreover, it should be noted that the M10-P is much more recent (by 3 years and 6 months) than the 760D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M10-P has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The 760D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 760D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M10-P are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
2.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
3.		Canon 2000D	APS-C	24.0	6000	4000	1080/30p	22.6	11.9	1009	71
4.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
5.		Canon 800D	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
6.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
7.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
8.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
10.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
11.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
12.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
13.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
14.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
15.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
16.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
17.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 760D indeed provides movie recording capabilities, while the M10-P does not. The highest resolution format that the 760D can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The 760D and the M10-P are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10-P offers a wider field of view (100%) than the one in the 760D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10-P has a higher magnification (0.73x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 760D and Leica M10-P in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
3.		Canon 2000D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
5.		Canon 800D	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
10.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
11.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
13.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
14.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
15.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
16.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
17.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 760D has one, while the M10-P does not. While the built-in flash of the 760D is not very powerful, it can at times be useful as a fill-in light.

The Leica M10-P has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 760D and the M10-P write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 760D and Leica M10-P and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
3.		Canon 2000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon 800D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
13.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
14.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
15.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
16.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
17.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

Both the 760D and the M10-P have been discontinued, but can regularly be found used on ebay. The 760D was replaced by the Canon 77D, while the M10-P does not have a direct successor. Further information on the features and operation of the 760D and M10-P can be found, respectively, in the Canon 760D Manual (free pdf) or the online Leica M10-P Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon 760D or the Leica M10-P – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS 760D:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Less heavy: Is lighter (by 95g or 14 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (440 versus 210) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (92 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in February 2015).

Advantages of the Leica M10-P:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.51x).
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (139x80mm vs 132x101mm) and will fit more readily into a bag.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 3 years and 6 months of technical progress since the 760D launch.

If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (12 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 760D and the M10-P in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
2.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	7,995	ebay.com
3.		Canon 2000D	3/5	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
4.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
5.		Canon 800D	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	749	ebay.com
6.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
7.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
8.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
10.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
11.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
12.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	8,995	amazon.com
13.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	8,295	ebay.com
14.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	3,999	ebay.com
15.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
16.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	5,195	ebay.com
17.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
