Canon 750D vs Olympus E-PL2
The Canon EOS 750D (called Canon T6i in some regions) and the Olympus PEN E-PL2 are two digital cameras that were revealed to the public, respectively, in February 2015 and January 2011. The 750D is a DSLR, while the E-PL2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (750D) and a Four Thirds (E-PL2) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 750D and the Olympus PEN E-PL2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon 750D and the Olympus E-PL2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The E-PL2 can be obtained in four different colors (black, silver, red, white), while the 750D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL2 is considerably smaller (38 percent) than the Canon 750D. Moreover, the E-PL2 is substantially lighter (35 percent) than the 750D. In this context, it is worth noting that neither the 750D nor the E-PL2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (750D) and the Micro Four Thirds Lens Catalog (E-PL2). Mirrorless cameras, such as the E-PL2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|2.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|6.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|7.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|9.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699|
|10.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|13.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|14.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|15.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|16.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|17.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL2 was launched at a somewhat lower price (by 20 percent) than the 750D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

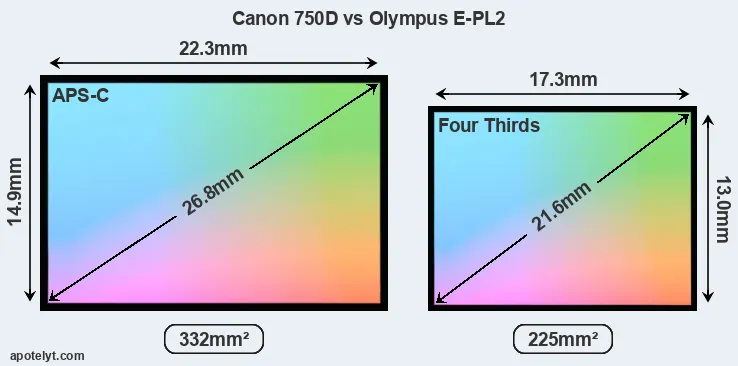

Of the two cameras under consideration, the Canon 750D features an APS-C sensor and the Olympus E-PL2 a Four Thirds sensor. The sensor area in the E-PL2 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 750D has a native 3:2 aspect ratio, while the one in the E-PL2 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the 750D offers a higher resolution than the E-PL2 (12.2MP), but the 750D has smaller individual pixels (pixel pitch of 3.72μm versus 4.29μm for the E-PL2). However, the 750D is a much more recent model (by 4 years and 1 month) than the E-PL2, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 750D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 750D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL2 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 750D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL2 are ISO 200 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 750D provides substantially higher image quality than the E-PL2, with an overall score that is 16 points higher. This advantage is based on 1.3 bits higher color depth, 1.8 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|9.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|14.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|15.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|16.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|17.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 750D provides a higher video resolution than the E-PL2. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 750D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL2 relies on live view and the rear LCD for framing. That said, the E-PL2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon 750D and Olympus E-PL2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|2.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||Y|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0||Y||n|
|6.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|7.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5||Y||Y|
|10.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|12.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|13.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0||Y||Y|
|14.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5||n||Y|
|15.||Olympus E-PL1||optional||n||2.7 / 230||fixed||n||1/2000s||3.0||Y||Y|
|16.||Olympus E-P2||optional||n||3.0 / 230||fixed||n||1/4000s||3.0||n||Y|
|17.||Panasonic G10||202||n||3.0 / 460||fixed||n||1/4000s||2.6||Y||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 750D has a touchscreen, while the E-PL2 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 750D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-PL2 does not have a selfie-screen.
The 750D writes its imaging data to SDXC cards, while the E-PL2 uses SDHC cards. The 750D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL2 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 750D and Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|7.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|13.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-P2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic G10||Y||mono / -||-||-||mini||2.0||-||-||-|
It is notable that the 750D has a microphone port, which is missing on the E-PL2. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 750D and the E-PL2 have been discontinued, but can regularly be found used on eBay. The E-PL2 was replaced by the Olympus E-PL3, while the 750D was followed by the Canon 800D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon 750D and the Olympus E-PL2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS 750D:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
- Better image quality: Scores substantially higher (16 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (440 versus 280) on a single battery charge.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 1 month of technical progress since the E-PL2 launch.
Reasons to prefer the Olympus PEN E-PL2:
- More compact: Is smaller (114x72mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 193g or 35 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in January 2011).
If the count of relative strengths (bullet points above) is taken as a measure, the 750D is the clear winner of the match-up (19 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 750D and the Olympus E-PL2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 750D and the E-PL2 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|2.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|6.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|7.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|9.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699|
|10.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|13.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|14.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|15.||Olympus E-PL1||..||86/100||..||69/100||4/5||4.5/5||Feb 2010||599|
|16.||Olympus E-P2||3/5||+||..||69/100||4/5||4.5/5||Nov 2009||799|
|17.||Panasonic G10||3/5||..||..||70/100||4/5||4/5||Mar 2010||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 400D vs Olympus E-PL2
- Canon 750D vs Canon G1 X Mark III
- Canon 750D vs Fujifilm GFX 100
- Canon 750D vs Leica SL
- Canon 750D vs Nikon D3S
- Canon 750D vs Pentax 645Z
- Canon 750D vs Pentax K-3 III
- Canon D60 vs Olympus E-PL2
- Canon M6 vs Olympus E-PL2
- Canon T3 vs Olympus E-PL2
- Kodak S-1 vs Olympus E-PL2
- Olympus E-PL2 vs Panasonic TS7
Specifications: Canon 750D vs Olympus E-PL2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 750D||Olympus E-PL2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2015||January 2011|
|Launch Price||USD 749||USD 599|
|Sensor Specs||Canon 750D||Olympus E-PL2|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.72 μm||4.29 μm|
|Pixel Density||7.22 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||100 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||Truepic V|
|DXO Sensor Quality (score)||71||55|
|DXO Color Depth (bits)||22.7||21.4|
|DXO Dynamic Range (EV)||12.0||10.2|
|DXO Low Light (ISO)||919||573|
|Screen Specs||Canon 750D||Olympus E-PL2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 750D||Olympus E-PL2|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 750D||Olympus E-PL2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 750D||Olympus E-PL2|
|Battery Life (CIPA)||440 shots per charge||280 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
114 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
|Camera Weight||555 g (19.6 oz)||362 g (12.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
