Canon 750D vs Leica D-LUX 5
The Canon EOS 750D (called Canon T6i in some regions) and the Leica D-LUX 5 are two digital cameras that were revealed to the public, respectively, in February 2015 and September 2010. The 750D is a DSLR, while the D-LUX 5 is a fixed lens compact. The cameras are based on an APS-C (750D) and a 1/1.7-inch (D-LUX 5) sensor. The Canon has a resolution of 24 megapixels, whereas the Leica provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 750D and the Leica D-LUX 5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

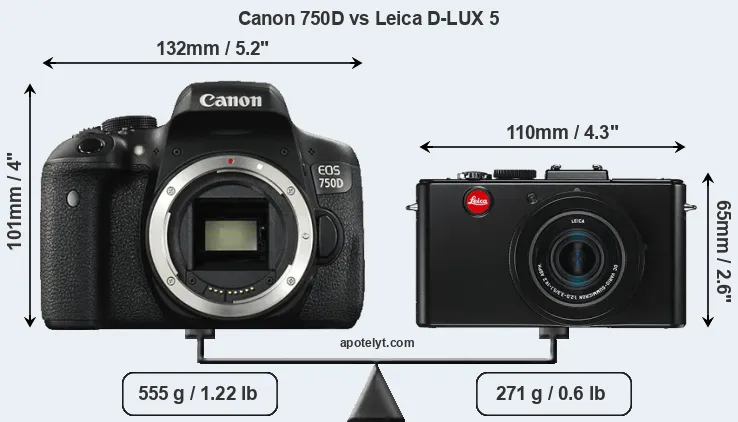

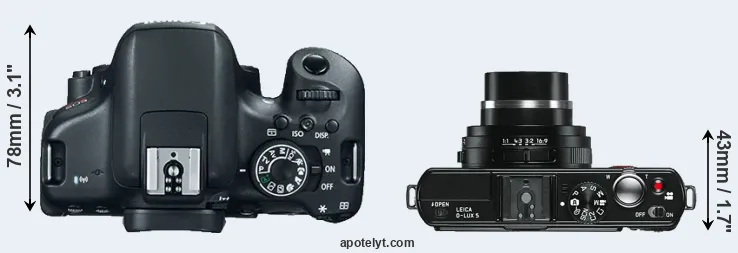

An illustration of the physical size and weight of the Canon 750D and the Leica D-LUX 5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX 5 is considerably smaller (46 percent) than the Canon 750D. In this context, it is worth noting that neither the 750D nor the D-LUX 5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX 5 has a lens built in, whereas the 750D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 750D and their specifications in the Canon EF Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|2.||Leica D-LUX 5||110 mm||65 mm||43 mm||271 g||400||n||Sep 2010||699||ebay.com|
|3.||Canon 2000D||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||amazon.com|
|4.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||ebay.com|
|5.||Canon 800D||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749||ebay.com|
|6.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|7.||Canon M3||111 mm||68 mm||44 mm||366 g||250||n||Feb 2015||679||ebay.com|
|8.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|9.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|10.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|11.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|12.||Fujifilm X10||117 mm||70 mm||57 mm||350 g||270||n||Sep 2011||599||ebay.com|
|13.||Leica D-LUX 6||111 mm||68 mm||46 mm||298 g||330||n||Sep 2012||699||ebay.com|
|14.||Leica V-LUX 3||124 mm||81 mm||95 mm||540 g||410||n||Dec 2011||949||ebay.com|
|15.||Leica X1||124 mm||60 mm||32 mm||306 g||260||n||Sep 2009||1,995||ebay.com|
|16.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|17.||Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D-LUX 5 was launched at a lower price than the 750D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

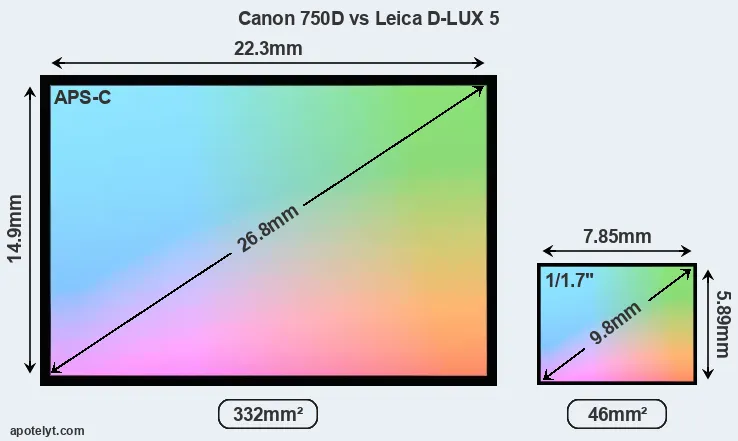

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 750D features an APS-C sensor and the Leica D-LUX 5 a 1/1.7-inch sensor. The sensor area in the D-LUX 5 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the 750D has a native 3:2 aspect ratio, while the one in the D-LUX 5 offers a 4:3 aspect. The D-LUX 5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

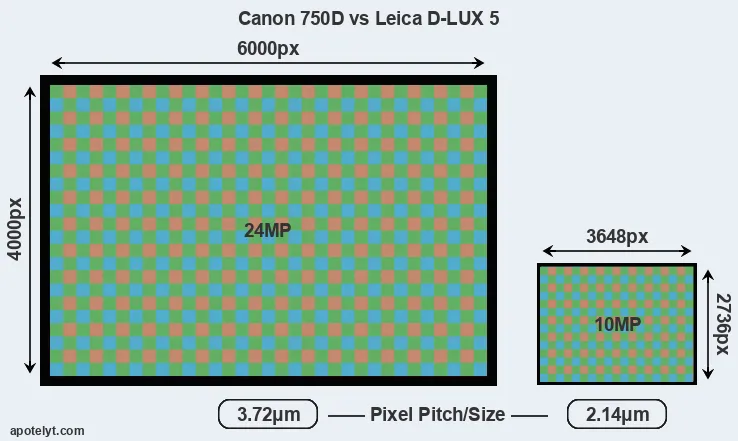

With 24MP, the 750D offers a higher resolution than the D-LUX 5 (10MP), but the 750D nevertheless has larger individual pixels (pixel pitch of 3.72μm versus 2.14μm for the D-LUX 5) due to its larger sensor. Moreover, the 750D is a much more recent model (by 4 years and 4 months) than the D-LUX 5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 750D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 750D for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Leica D-LUX 5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The 750D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 750D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica D-LUX 5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
In terms of underlying technology, the 750D is build around a CMOS sensor, while the D-LUX 5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Leica D-LUX 5||1/1.7||10.0||3648||2736||720/60p||19.5||10.4||-583||39|
|9.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Leica D-LUX 6||1/1.7||10.0||3648||2736||1080/60p||19.8||10.8||-303||43|
|14.||Leica V-LUX 3||1/2.3||12.0||4000||3000||1080/60p||19.7||11.0||430||42|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the 750D provides a higher video resolution than the D-LUX 5. It can shoot video footage at 1080/30p, while the Leica is limited to 720/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 750D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the D-LUX 5 relies on live view and the rear LCD for framing. That said, the D-LUX 5 can be equipped with an optional viewfinder – the EVF1. The adjacent table lists some of the other core features of the Canon 750D and Leica D-LUX 5 along with similar information for a selection of comparators.
|1.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Leica D-LUX 5||optional||n||3.0 / 460||fixed||n||1/4000s||2.5/s||Y||Y|
|3.||Canon 2000D||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Canon 800D||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon M3||optional||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|8.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|9.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|10.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Fujifilm X10||optical||n||2.8 / 460||fixed||n||1/4000s||10.0/s||Y||Y|
|13.||Leica D-LUX 6||optional||n||3.0 / 920||fixed||n||1/4000s||11.0/s||Y||Y|
|14.||Leica V-LUX 3||202||n||3.0 / 460||swivel||n||1/2000s||12.0/s||Y||Y|
|15.||Leica X1||none||n||2.7 / 230||fixed||n||1/2000s||3.0/s||Y||n|
|16.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|17.||Panasonic LX5||optional||n||3.0 / 460||fixed||n||1/4000s||2.5/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 750D has a touchscreen, while the D-LUX 5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 750D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D-LUX 5 does not have a selfie-screen.
Concerning the storage of imaging data, both the 750D and the D-LUX 5 write their files to SDXC cards. The 750D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D-LUX 5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 750D and Leica D-LUX 5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Leica D-LUX 5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|3.||Canon 2000D||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Canon 800D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|7.||Canon M3||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|8.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|10.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Fujifilm X10||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|13.||Leica D-LUX 6||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|14.||Leica V-LUX 3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Leica X1||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|17.||Panasonic LX5||Y||mono / mono||-||-||mini||2.0||-||-||-|
It is notable that the 750D has a microphone port, which is missing on the D-LUX 5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the 750D and the D-LUX 5 have been discontinued, but can regularly be found used on ebay. The D-LUX 5 was replaced by the Leica D-LUX 6, while the 750D was followed by the Canon 800D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is the Canon 750D better than the Leica D-LUX 5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 750D:
- More detail: Offers more megapixels (24 vs 10MP) with a 58% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (1080/30p vs 720/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 4 years and 4 months of technical progress since the D-LUX 5 launch.
Advantages of the Leica D-LUX 5:
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Ready to shoot: Comes with an integrated lens, while the 750D requires a separate lens.
- More compact: Is smaller (110x65mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the 750D).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in September 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the 750D is the clear winner of the match-up (19 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 750D and the Leica D-LUX 5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 750D or the D-LUX 5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|2.||Leica D-LUX 5||..||..||..||..||4.5/5||4/5||Sep 2010||699||ebay.com|
|3.||Canon 2000D||..||o||..||..||3.5/5||3.5/5||Feb 2018||449||amazon.com|
|4.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899||ebay.com|
|5.||Canon 800D||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749||ebay.com|
|6.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|7.||Canon M3||4/5||o||..||75/100||4.5/5||4/5||Feb 2015||679||ebay.com|
|8.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|9.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|10.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|11.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|12.||Fujifilm X10||..||..||..||76/100||4/5||4.5/5||Sep 2011||599||ebay.com|
|13.||Leica D-LUX 6||..||..||..||..||4/5||4/5||Sep 2012||699||ebay.com|
|14.||Leica V-LUX 3||..||..||..||..||..||..||Dec 2011||949||ebay.com|
|15.||Leica X1||3/5||..||..||+||..||4/5||Sep 2009||1,995||ebay.com|
|16.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|17.||Panasonic LX5||4/5||+||..||73/100||4.5/5||4.5/5||Jul 2010||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 300D vs Canon 750D
- Canon 750D vs Canon Rebel
- Canon 750D vs Canon T1i
- Canon 750D vs Leica M9
- Canon 750D vs Olympus E-PL9
- Canon 750D vs Sony A99 II
- Canon 90D vs Leica D-LUX 5
- Canon G1 X Mark III vs Leica D-LUX 5
- Canon M100 vs Leica D-LUX 5
- Canon SX50 vs Leica D-LUX 5
- Leica D-LUX 5 vs Panasonic FZ80
- Leica D-LUX 5 vs Pentax 645D
Specifications: Canon 750D vs Leica D-LUX 5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 750D||Leica D-LUX 5|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-90mm f/2.0-3.3|
|Launch Date||February 2015||September 2010|
|Launch Price||USD 749||USD 699|
|Sensor Specs||Canon 750D||Leica D-LUX 5|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||22.3 x 14.9 mm||7.85 x 5.89 mm|
|Sensor Area||332.27 mm2||46.2365 mm2|
|Sensor Diagonal||26.8 mm||9.8 mm|
|Sensor Resolution||24 Megapixels||10 Megapixels|
|Image Resolution||6000 x 4000 pixels||3648 x 2736 pixels|
|Pixel Pitch||3.72 μm||2.14 μm|
|Pixel Density||7.22 MP/cm2||21.59 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/60p Video|
|ISO Setting||100 - 12,800 ISO||80 - 3,200 ISO|
|ISO Boost||100 - 25,600 ISO||80 - 12,800 ISO|
|DXO Sensor Quality (score)||71||..|
|DXO Color Depth (bits)||22.7||..|
|DXO Dynamic Range (EV)||12.0||..|
|DXO Low Light (ISO)||919||..|
|Screen Specs||Canon 750D||Leica D-LUX 5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 750D||Leica D-LUX 5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||2.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon 750D||Leica D-LUX 5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon 750D||Leica D-LUX 5|
|Battery Life (CIPA)||440 shots per charge||400 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
110 x 65 x 43 mm
(4.3 x 2.6 x 1.7 in)
|Camera Weight||555 g (19.6 oz)||271 g (9.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
