Canon 700D vs Olympus E-420
The Canon EOS 700D (called Canon T5i in some regions) and the Olympus E-420 are two digital cameras that were officially introduced, respectively, in March 2013 and March 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (700D) and a Four Thirds (E-420) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 700D and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

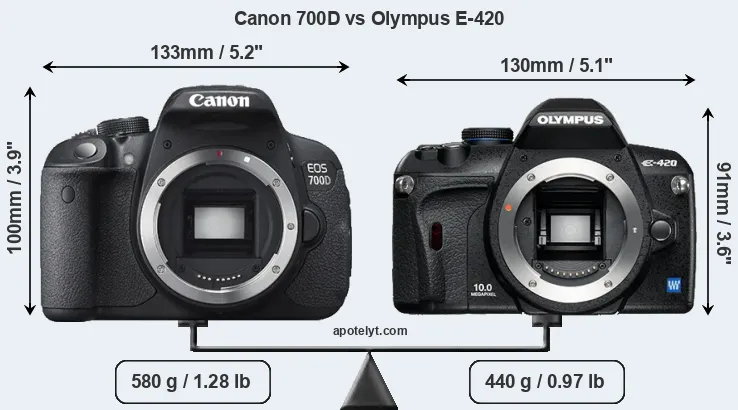

The physical size and weight of the Canon 700D and the Olympus E-420 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is notably smaller (11 percent) than the Canon 700D. Moreover, the E-420 is markedly lighter (24 percent) than the 700D. In this context, it is worth noting that neither the 700D nor the E-420 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (700D) and the Four Thirds Lens Catalog (E-420).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599||ebay.com|
|3.||Canon 750D||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|4.||Canon 760D||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|5.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|6.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|7.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|9.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|10.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon 550D||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Olympus E-450||130 mm||91 mm||53 mm||440 g||500||n||Mar 2009||499||ebay.com|
|14.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699||ebay.com|
|15.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|16.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699||ebay.com|
|17.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-420 was somewhat cheaper (by 8 percent) than the 700D at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

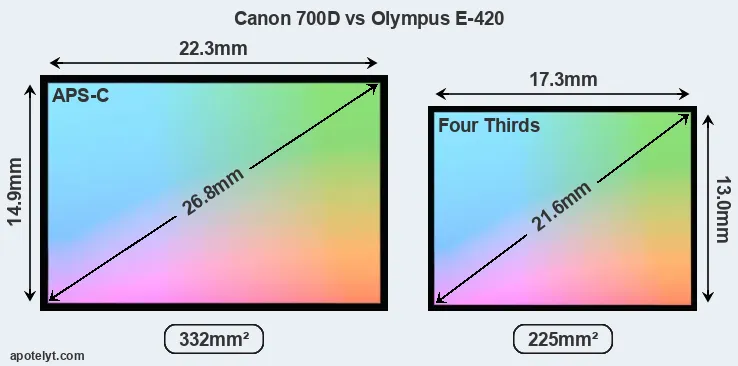

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 700D features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 700D has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.

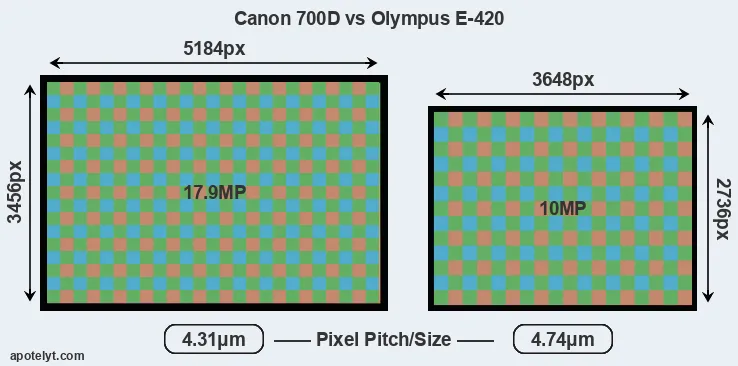

With 17.9MP, the 700D offers a higher resolution than the E-420 (10MP), but the 700D has smaller individual pixels (pixel pitch of 4.31μm versus 4.74μm for the E-420). However, the 700D is a much more recent model (by 5 years) than the E-420, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 700D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 700D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The 700D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 700D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-420 are ISO 100 to ISO 1600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the 700D has a notably higher overall DXO score than the E-420 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.2 bits higher color depth, 0.8 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|6.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|13.||Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|14.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|15.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|16.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|17.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 700D indeed provides movie recording capabilities, while the E-420 does not. The highest resolution format that the 700D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 700D and the E-420 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the 700D has a higher magnification than the one of the E-420 (0.53x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 700D and Olympus E-420 in connection with corresponding information for a sample of similar cameras.
|1.||Canon 700D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Olympus E-420||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||n|
|3.||Canon 750D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon 760D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|6.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|7.||Canon 100D||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon 650D||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|10.||Canon 600D||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon 550D||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon 500D||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Olympus E-450||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||n|
|14.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|15.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|16.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|17.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|

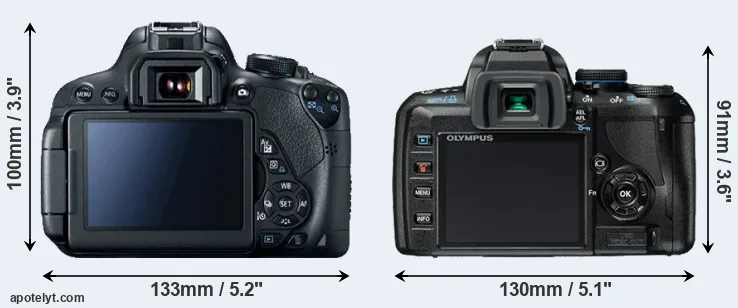

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 700D has a touchscreen, while the E-420 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 700D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-420 does not have a selfie-screen.
The 700D writes its imaging data to SDXC cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 700D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 700D and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 700D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-420||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 750D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon 760D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon 100D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon 650D||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon 600D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon 550D||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon 500D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-450||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
Both the 700D and the E-420 have been discontinued, but can regularly be found used on ebay. The 700D was replaced by the Canon 750D, while the E-420 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Canon 700D or the Olympus E-420 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 700D:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
- Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3.5 flaps/sec) to capture the decisive moment.
- More modern: Reflects 5 years of technical progress since the E-420 launch.
Advantages of the Olympus E-420:
- More compact: Is smaller (130x91mm vs 133x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 140g or 24 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (500 versus 440) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in March 2008).
If the count of relative strengths (bullet points above) is taken as a measure, the 700D is the clear winner of the match-up (14 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 700D and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 700D and the E-420 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 700D||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Olympus E-420||..||85/100||..||+ +||4/5||4.5/5||Mar 2008||599||ebay.com|
|3.||Canon 750D||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|4.||Canon 760D||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|5.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|6.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|7.||Canon 100D||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon 650D||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|9.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|10.||Canon 600D||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon 550D||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon 500D||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Olympus E-450||..||..||..||..||4/5||4/5||Mar 2009||499||ebay.com|
|14.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699||ebay.com|
|15.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|16.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699||ebay.com|
|17.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1Ds vs Olympus E-420
- Canon 700D vs Canon 80D
- Canon 700D vs Canon SX70
- Canon 700D vs Leica M Typ 262
- Canon 700D vs Nikon D40
- Canon 700D vs Panasonic G3
- Canon 700D vs Samsung NX1
- Canon G1 X Mark III vs Olympus E-420
- Canon SX50 vs Olympus E-420
- Nikon 1 V2 vs Olympus E-420
- Olympus E-420 vs Pentax MX-1
- Olympus E-420 vs Sony H300
Specifications: Canon 700D vs Olympus E-420
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 700D||Olympus E-420|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||March 2013||March 2008|
|Launch Price||USD 649||USD 599|
|Sensor Specs||Canon 700D||Olympus E-420|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||10 Megapixels|
|Image Resolution||5184 x 3456 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.31 μm||4.74 μm|
|Pixel Density||5.39 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 5||TruePic III|
|DXO Sensor Quality (score)||61||56|
|DXO Color Depth (bits)||21.7||21.5|
|DXO Dynamic Range (EV)||11.2||10.4|
|DXO Low Light (ISO)||681||527|
|Screen Specs||Canon 700D||Olympus E-420|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 700D||Olympus E-420|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 700D||Olympus E-420|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 700D||Olympus E-420|
|Battery Life (CIPA)||440 shots per charge||500 shots per charge|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
130 x 91 x 53 mm
(5.1 x 3.6 x 2.1 in)
|Camera Weight||580 g (20.5 oz)||440 g (15.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
