Canon 6D Mark II vs Nikon D800E
The Canon EOS 6D Mark II and the Nikon D800E are two digital cameras that were officially introduced, respectively, in June 2017 and February 2012. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with a full frame sensor. The Canon has a resolution of 26 megapixels, whereas the Nikon provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 6D Mark II and the Nikon D800E? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

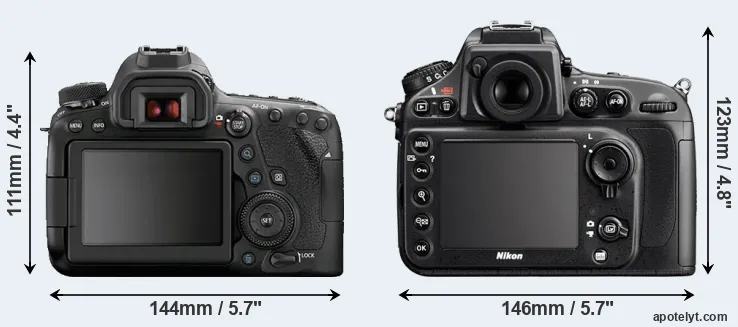

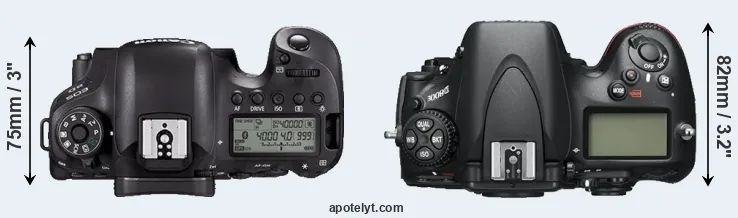

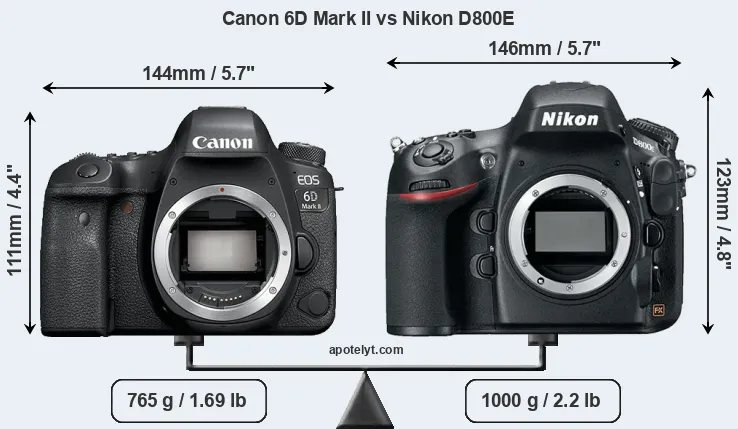

An illustration of the physical size and weight of the Canon 6D Mark II and the Nikon D800E is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D800E is notably larger (12 percent) than the Canon 6D Mark II. Moreover, the D800E is markedly heavier (31 percent) than the 6D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around a full frame sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (6D Mark II) and the Nikon Lens Catalog (D800E).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|Canon 6D Mark II||5.7 in||4.4 in||3.0 in||27.0 oz||1200||Y||Jun 2017||1,999|
|Nikon D800E||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||3,299|
|Canon R||5.5 in||3.9 in||3.3 in||23.3 oz||370||Y||Sep 2018||2,299|
|Canon 5D Mark IV||5.9 in||4.6 in||3.0 in||31.4 oz||900||Y||Aug 2016||3,499|
|Canon 80D||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199|
|Canon 5D Mark III||6.0 in||4.6 in||3.0 in||33.5 oz||950||Y||Mar 2012||3,499|
|Canon 6D||5.7 in||4.4 in||2.8 in||27.2 oz||1090||Y||Sep 2012||2,099|
|Canon 5D Mark II||6.0 in||4.5 in||3.0 in||30.0 oz||850||Y||Sep 2008||3,499|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D750||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299|
|Nikon D810||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299|
|Nikon D610||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999|
|Nikon D600||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Sep 2012||2,099|
|Nikon D800||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||2,999|
|Nikon D700||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999|
|Sony A7 III||5.0 in||3.8 in||2.9 in||22.9 oz||610||Y||Feb 2018||1,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The 6D Mark II was launched at a markedly lower price (by 39 percent) than the D800E, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

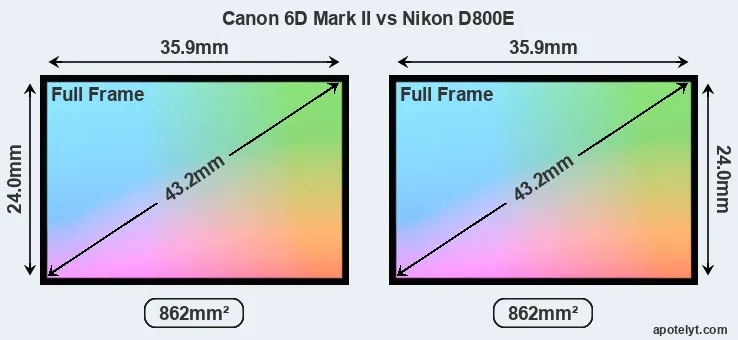

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

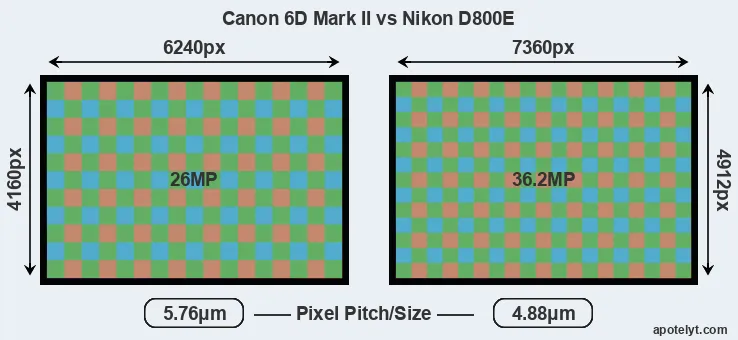

While the two cameras under review share the same sensor size, the D800E offers a higher resolution of 36.2 megapixels, compared with 26 MP of the 6D Mark II. This megapixels advantage translates into a 18 percent gain in linear resolution. On the other hand, these sensor specs imply that the D800E has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.88μm versus 5.76μm for the 6D Mark II). Moreover, it should be noted, that the 6D Mark II is much more recent (by 5 years and 4 months) than the D800E, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the D800E has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D800E implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D800E for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon 6D Mark II are 31.2 x 20.8 inches or 79.2 x 52.8 cm for good quality, 25 x 16.6 inches or 63.4 x 42.3 cm for very good quality, and 20.8 x 13.9 inches or 52.8 x 35.2 cm for excellent quality prints.
The 6D Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 6D Mark II has a native sensitivity range from ISO 100 to ISO 40000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Nikon D800E are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D800E offers substantially better image quality than the 6D Mark II (overall score 11 points higher). The advantage is based on 1.2 bits higher color depth, 2.4 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|Canon 6D Mark II||Full Frame||26.0||6240||4160||1080/60p||24.4||11.9||2862||85|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|Canon R||Full Frame||30.1||6720||4480||4K/30p||24.5||13.5||2742||89|
|Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|Sony A7 III||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 6D Mark II provides a higher frame rate than the D800E. It can shoot video footage at 1080/60p, while the Nikon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The 6D Mark II and the D800E are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D800E offers a wider field of view (100%) than the one in the 6D Mark II (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 6D Mark II has a higher magnification (0.72x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 6D Mark II, the Nikon D800E, and comparable cameras.
|Canon 6D Mark II||optical||Y||3.0||1040||swivel||Y||1/4000s||6.5||n||n|
|Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|Sony A7 III||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 6D Mark II has a touchscreen, while the D800E has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The 6D Mark II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D800E does not have a selfie-screen.
The Canon 6D Mark II and the Nikon D800E both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 6D Mark II writes its imaging data to SDXC cards, while the D800E uses Compact Flash or SDXC cards. The D800E features dual card slots, which can be very useful in case a memory card fails. In contrast, the 6D Mark II only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 6D Mark II and Nikon D800E and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon 6D Mark II||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y|
|Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|Sony A7 III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
It is notable that the 6D Mark II offers wifi support, while the D800E does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D800E (unlike the 6D Mark II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 6D Mark II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The 6D Mark II is a recent model that features in the current product line-up of Canon. In contrast, the D800E has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D800E was succeeded by the Nikon D810. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is there a clear favorite between the Canon 6D Mark II and the Nikon D800E? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS 6D Mark II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.70x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (6.5 vs 4 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (144x111mm vs 146x123mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 235g or 23 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (1200 versus 900) on a single battery charge.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (39 percent cheaper at launch).
- More modern: Reflects 5 years and 4 months of technical progress since the D800E launch.
Arguments in favor of the Nikon D800E:
- More detail: Has more megapixels (36.2 vs 26MP), which boosts linear resolution by 18%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in February 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the 6D Mark II is the clear winner of the match-up (18 : 14 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 6D Mark II and the Nikon D800E place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 6D Mark II and the D800E in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 6D Mark II||+||80/100||4.5/5||4/5||4/5||Jun 2017||1,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Canon R||o||79/100||4.5/5||4/5||4/5||Sep 2018||2,299|
|Canon 5D Mark IV||+ +||87/100||4.5/5||5/5||4.5/5||Aug 2016||3,499|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 5D Mark III||+ +||82/100||4.5/5||5/5||4.5/5||Mar 2012||3,499|
|Canon 6D||+ +||83/100||4.5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Canon 5D Mark II||91/100||79/100||4/5||5/5||..||Sep 2008||3,499|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D600||+ +||87/100||5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D700||89/100||+ +||4.5/5||5/5||4.5/5||Jul 2008||2,999|
|Sony A7 III||+ +||89/100||5/5||5/5||5/5||Feb 2018||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 6D Mark II vs Nikon D800E
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 6D Mark II||Nikon D800E|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||June 2017||February 2012|
|Launch Price||USD 1,999||USD 3,299|
|Sensor Specs||Canon 6D Mark II||Nikon D800E|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||35.9 x 24.0 mm||35.9 x 24.0 mm|
|Sensor Area||861.6 mm2||861.6 mm2|
|Sensor Diagonal||43.2 mm||43.2 mm|
|Sensor Resolution||26 Megapixels||36.2 Megapixels|
|Image Resolution||6240 x 4160 pixels||7360 x 4912 pixels|
|Pixel Pitch||5.76 μm||4.88 μm|
|Pixel Density||3.01 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 40,000 ISO||100 - 6,400 ISO|
|ISO Boost||50 - 102,400 ISO||50 - 25,600 ISO|
|Image Processor||DIGIC 7||EXPEED 3|
|DXO Sensor Quality (score)||85||96|
|DXO Color Depth (bits)||24.4||25.6|
|DXO Dynamic Range (EV)||11.9||14.3|
|DXO Low Light (ISO)||2862||2979|
|Screen Specs||Canon 6D Mark II||Nikon D800E|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||98%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 6D Mark II||Nikon D800E|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||4 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||CF or SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 6D Mark II||Nikon D800E|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Canon 6D Mark II||Nikon D800E|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||1200 shots per charge||900 shots per charge|
144 x 111 x 75 mm
(5.7 x 4.4 x 3.0 in)
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
|Camera Weight||765 g (27.0 oz)||1000 g (35.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
