Canon 650D vs Panasonic GF1

The Canon EOS 650D (called Canon T4i in some regions) and the Panasonic Lumix DMC-GF1 are two digital cameras that were announced, respectively, in June 2012 and September 2009. The 650D is a DSLR, while the GF1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (650D) and a Four Thirds (GF1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 650D		Panasonic GF1
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
17.9 MP – APS-C sensor		12 MP – Four Thirds sensor
1080/30p Video		720/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-3,200
Optical viewfinder		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 460k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
440 shots per battery charge		380 shots per battery charge
133 x 100 x 79 mm, 575 g		119 x 71 x 36 mm, 385 g

Check 650D offers at
ebay.com
Check GF1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 650D and the Panasonic Lumix DMC-GF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

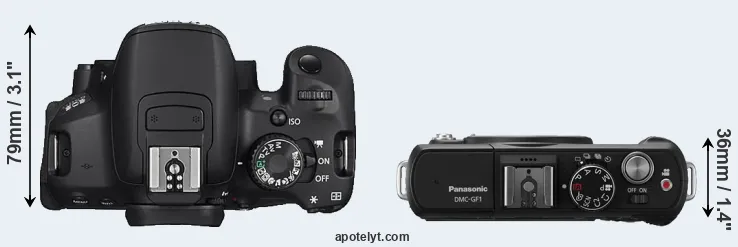

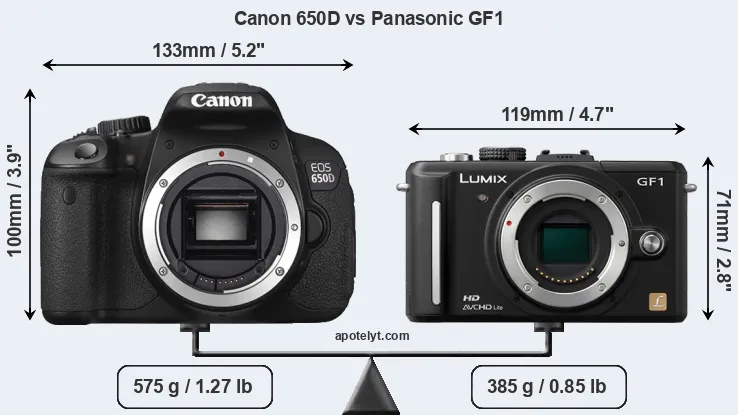

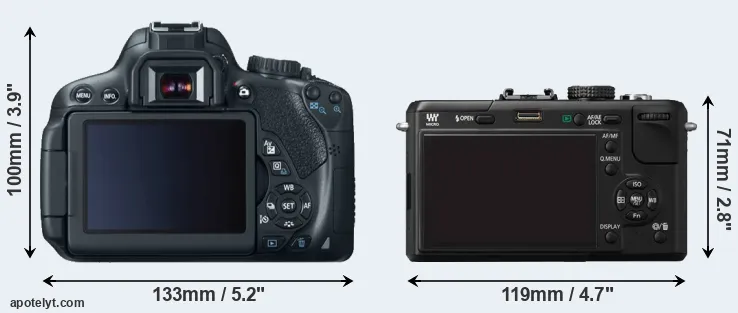

The side-by-side display below illustrates the physical size and weight of the Canon 650D and the Panasonic GF1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF1 is considerably smaller (36 percent) than the Canon 650D. Moreover, the GF1 is markedly lighter (33 percent) than the 650D. In this context, it is worth noting that neither the 650D nor the GF1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (650D) and the Micro Four Thirds Lens Catalog (GF1). Mirrorless cameras, such as the GF1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 650D gets 440 shots out of its Canon LP-E8 battery, while the GF1 can take 380 images on a single charge of its Panasonic DMW-BLB13 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
2.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	749	ebay.com
3.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
5.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
6.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
8.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
9.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
10.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
11.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
12.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
13.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
14.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	499	ebay.com
15.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	599	ebay.com
16.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	899	ebay.com
17.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GF1 was launched at a somewhat lower price (by 12 percent) than the 650D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 650D features an APS-C sensor and the Panasonic GF1 a Four Thirds sensor. The sensor area in the GF1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 650D has a native 3:2 aspect ratio, while the one in the GF1 offers a 4:3 aspect.

With 17.9MP, the 650D offers a higher resolution than the GF1 (12MP), but the 650D has marginally smaller individual pixels (pixel pitch of 4.31μm versus 4.33μm for the GF1). However, the 650D is a much more recent model (by 2 years and 9 months) than the GF1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 650D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 650D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic GF1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The 650D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 650D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-GF1 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 650D has a notably higher overall DXO score than the GF1 (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.5 bits higher color depth, 0.9 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
2.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
3.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
5.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
6.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
9.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
10.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
11.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
12.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
13.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
14.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
15.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
16.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
17.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 650D provides a higher video resolution than the GF1. It can shoot video footage at 1080/30p, while the Panasonic is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 650D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GF1 relies on live view and the rear LCD for framing. That said, the GF1 can be equipped with an optional viewfinder – the DMW-LVF1. The adjacent table lists some of the other core features of the Canon 650D and Panasonic GF1 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
9.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
10.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
12.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
13.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
14.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
15.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
16.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 650D has a touchscreen, while the GF1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The 650D writes its imaging data to SDXC cards, while the GF1 uses SDHC cards. The 650D supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GF1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 650D and Panasonic Lumix DMC-GF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
12.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
17.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-

It is notable that the 650D has a microphone port, which is missing on the GF1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 650D and the GF1 have been discontinued, but can regularly be found used on ebay. The GF1 was replaced by the Panasonic DMC-GF2, while the 650D was followed by the Canon 700D. Further information on the features and operation of the 650D and GF1 can be found, respectively, in the Canon 650D Manual (free pdf) or the online Panasonic GF1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 650D or the Panasonic GF1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS 650D:

• More detail: Offers more megapixels (17.9 vs 12MP) with a 25% higher linear resolution.
• Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.9 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (440 versus 380) on a single battery charge.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 2 years and 9 months of technical progress since the GF1 launch.

Advantages of the Panasonic Lumix DMC-GF1:

• More compact: Is smaller (119x71mm vs 133x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 190g or 33 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was released into a lower priced segment (12 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of individual advantages (bullet points above) is taken as a guide, the 650D is the clear winner of the match-up (16 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 650D and the Panasonic GF1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 650D and the GF1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
2.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	749	ebay.com
3.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
5.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
6.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
8.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
9.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
10.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
11.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
12.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
13.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
14.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	499	ebay.com
15.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	599	ebay.com
16.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	899	ebay.com
17.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
