Canon 650D vs Olympus E-3

The Canon EOS 650D (called Canon T4i in some regions) and the Olympus E-3 are two digital cameras that were officially introduced, respectively, in June 2012 and October 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (650D) and a Four Thirds (E-3) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 650D		Olympus E-3
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Four Thirds lenses
17.9 MP – APS-C sensor		10 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 100-3,200
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		2.5" LCD – 230k dots
Swivel touchscreen		Swivel screen (not touch-sensitive)
5 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
440 shots per battery charge		750 shots per battery charge
133 x 100 x 79 mm, 575 g		142 x 116 x 75 mm, 876 g

Check 650D offers at
ebay.com
Check E-3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 650D and the Olympus E-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

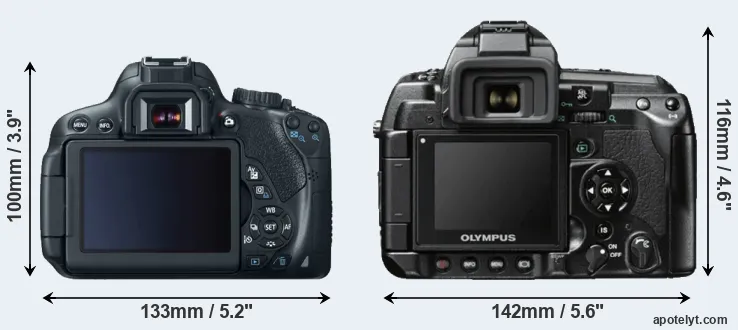

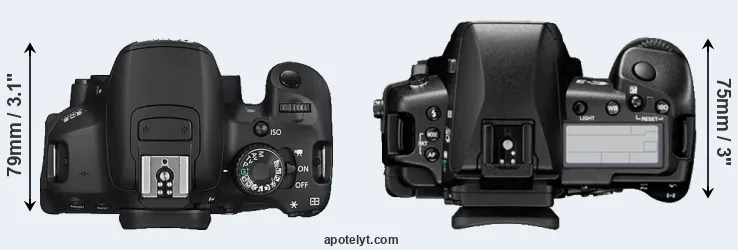

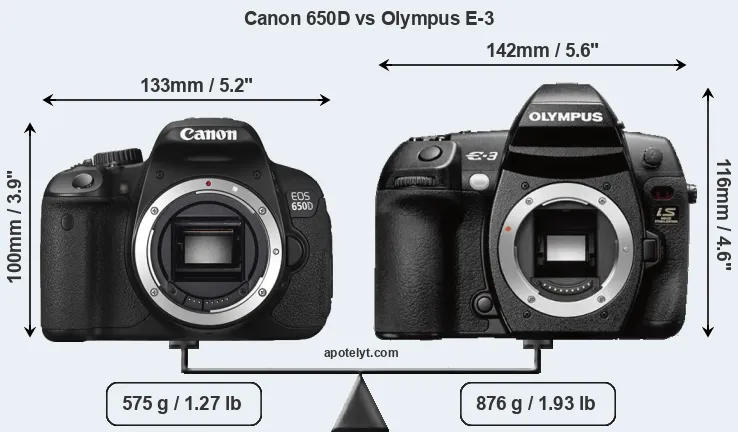

The physical size and weight of the Canon 650D and the Olympus E-3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-3 is notably larger (24 percent) than the Canon 650D. Moreover, the E-3 is substantially heavier (52 percent) than the 650D. It is noteworthy in this context that the E-3 is splash and dust-proof, while the 650D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (650D) and the Four Thirds Lens Catalog (E-3).

Concerning battery life, the 650D gets 440 shots out of its LP-E8 battery, while the E-3 can take 750 images on a single charge of its BLM-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
2.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
3.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
5.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
6.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
8.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
9.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
10.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
11.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
12.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
13.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
14.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
15.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
16.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
17.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The 650D was launched at a markedly lower price (by 50 percent) than the E-3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

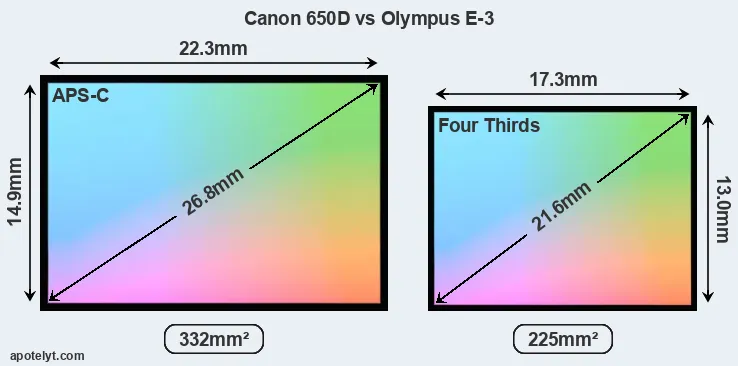

Of the two cameras under consideration, the Canon 650D features an APS-C sensor and the Olympus E-3 a Four Thirds sensor. The sensor area in the E-3 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 650D has a native 3:2 aspect ratio, while the one in the E-3 offers a 4:3 aspect.

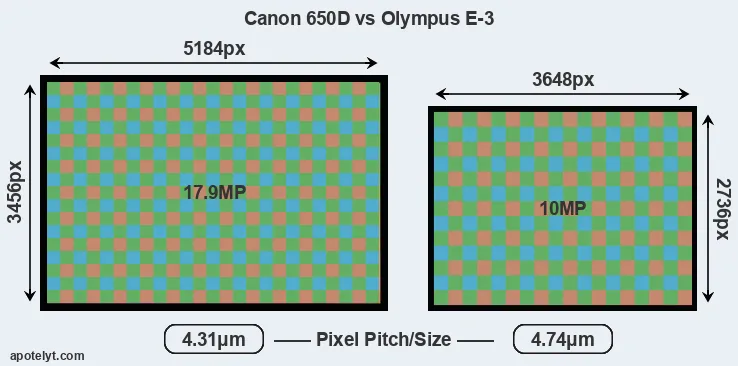

With 17.9MP, the 650D offers a higher resolution than the E-3 (10MP), but the 650D has smaller individual pixels (pixel pitch of 4.31μm versus 4.74μm for the E-3). However, the 650D is a much more recent model (by 4 years and 7 months) than the E-3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 650D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 650D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-3 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The 650D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 650D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-3 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the 650D has a notably higher overall DXO score than the E-3 (overall score 6 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.099999999999998 bits higher color depth, 0.7 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
2.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
3.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
5.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
6.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
9.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
10.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
11.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
12.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
13.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
14.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
15.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
16.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
17.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The 650D indeed provides movie recording capabilities, while the E-3 does not. The highest resolution format that the 650D can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The 650D and the E-3 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-3 offers a wider field of view (100%) than the one in the 650D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-3 has a higher magnification (0.58x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 650D and Olympus E-3 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
3.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
9.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
10.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
12.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
13.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
14.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
16.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
17.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The 650D has a touchscreen, while the E-3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The 650D writes its imaging data to SDXC cards, while the E-3 uses Compact Flash or xD Picture cards. The E-3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 650D only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 650D and Olympus E-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
12.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Olympus E-3 (unlike the 650D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 650D and the E-3 have been discontinued, but can regularly be found used on ebay. The E-3 was replaced by the Olympus E-5, while the 650D was followed by the Canon 700D. Further information on the features and operation of the 650D and E-3 can be found, respectively, in the Canon 650D Manual (free pdf) or the online Olympus E-3 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 650D and the Olympus E-3? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Canon EOS 650D:

• More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
• Better image quality: Scores markedly higher (6 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.3 stops ISO advantage).
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More compact: Is smaller (133x100mm vs 142x116mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 301g or 34 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More modern: Reflects 4 years and 7 months of technical progress since the E-3 launch.

Reasons to prefer the Olympus E-3:

• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.53x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Gets more shots (750 versus 440) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in October 2007).

If the count of individual advantages (bullet points above) is taken as a guide, the 650D emerges as the winner of the contest (13 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 650D and the Olympus E-3 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 650D or the E-3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
2.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
3.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
5.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
6.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
8.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
9.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
10.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
11.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
12.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
13.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
14.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
15.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
16.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
17.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
