Canon 60D vs Olympus E-510
The Canon EOS 60D and the Olympus E-510 are two digital cameras that were announced, respectively, in August 2010 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (60D) and a Four Thirds (E-510) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon 60D and the Olympus E-510. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is notably smaller (19 percent) than the Canon 60D. Moreover, the E-510 is markedly lighter (29 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Four Thirds Lens Catalog (E-510).
Concerning battery life, the 60D gets 1100 shots out of its LP-E6 battery, while the E-510 can take 750 images on a single charge of its BLM-1 power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399||ebay.com|
|2.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799||ebay.com|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199||ebay.com|
|4.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799||ebay.com|
|5.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199||ebay.com|
|6.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699||ebay.com|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|10.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299||ebay.com|
|11.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299||ebay.com|
|12.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499||ebay.com|
|13.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699||ebay.com|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|15.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699||ebay.com|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699||ebay.com|
|17.||Olympus E-500||130 mm||95 mm||66 mm||479 g||750||n||Sep 2005||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-510 was launched at a markedly lower price (by 43 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 60D features an APS-C sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 60D has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.

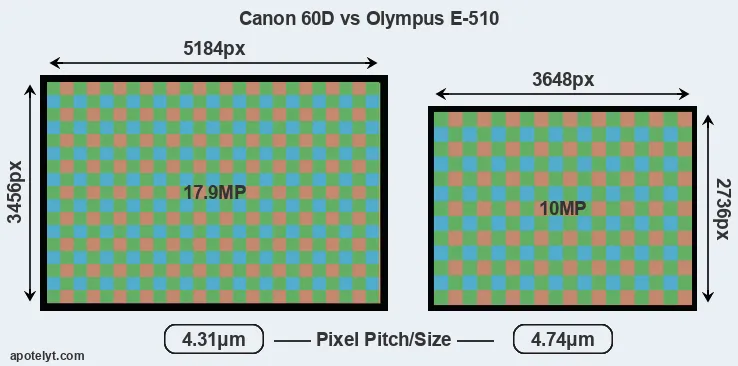

With 17.9MP, the 60D offers a higher resolution than the E-510 (10MP), but the 60D has smaller individual pixels (pixel pitch of 4.31μm versus 4.74μm for the E-510). However, the 60D is a much more recent model (by 3 years and 5 months) than the E-510, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon 60D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 60D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 60D provides substantially higher image quality than the E-510, with an overall score that is 14 points higher. This advantage is based on 1 bits higher color depth, 1.5 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|4.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|13.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|17.||Olympus E-500||Four Thirds||8.0||3264||2448||none||20.7||10.3||45||51|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The 60D indeed provides movie recording capabilities, while the E-510 does not. The highest resolution format that the 60D can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The 60D and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 60D offers a wider field of view (96%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 60D has a higher magnification (0.59x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 60D and Olympus E-510 along with similar information for a selection of comparators.
|1.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3/s||Y||n|
|2.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||Y|
|3.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|4.||Canon 7D II||optical||Y||3.0 / 1040||fixed||n||1/8000s||10.0/s||Y||n|
|5.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0/s||Y||n|
|6.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|7.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|8.||Canon 7D||optical||Y||3.0 / 920||fixed||n||1/8000s||8.0/s||Y||n|
|9.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|10.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3/s||Y||n|
|11.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5/s||Y||n|
|12.||Nikon D7000||optical||Y||3.0 / 921||fixed||n||1/8000s||6.0/s||Y||n|
|13.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|15.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|17.||Olympus E-500||optical||n||2.5 / 215||fixed||n||1/4000s||2.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the 60D, but is missing on the E-510 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-510 does not have a selfie-screen.
The 60D writes its imaging data to SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 60D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|4.||Canon 7D II||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|6.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|8.||Canon 7D||Y||mono / -||Y||-||mini||2.0||-||-||-|
|9.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|10.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Nikon D7000||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|13.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-500||Y||- / -||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Canon 60D (unlike the E-510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the E-510 have been discontinued, but can regularly be found used on ebay. The E-510 was replaced by the Olympus E-520, while the 60D was followed by the Canon 70D. Further information on the features and operation of the 60D and E-510 can be found, respectively, in the Canon 60D Manual (free pdf) or the online Olympus E-510 Manual.
So how do things add up? Is there a clear favorite between the Canon 60D and the Olympus E-510? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 60D:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
- Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (1.5 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5.3 vs 3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (1100 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 3 years and 5 months of technical progress since the E-510 launch.
Arguments in favor of the Olympus E-510:
- More compact: Is smaller (136x92mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 217g or 29 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the number of relative strengths (bullet points above) is taken as a guide, the 60D is the clear winner of the match-up (18 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 60D and the E-510 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399||ebay.com|
|2.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799||ebay.com|
|3.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199||ebay.com|
|4.||Canon 7D II||4.5/5||+||3.5/5||84/100||4/5||4.5/5||Sep 2014||1,799||ebay.com|
|5.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199||ebay.com|
|6.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|7.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|8.||Canon 7D||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2009||1,699||ebay.com|
|9.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|10.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299||ebay.com|
|11.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299||ebay.com|
|12.||Nikon D7000||4/5||..||..||80/100||4.5/5||4.5/5||Sep 2010||1,499||ebay.com|
|13.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699||ebay.com|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|15.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699||ebay.com|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699||ebay.com|
|17.||Olympus E-500||..||76/100||..||+ +||..||..||Sep 2005||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 200D vs Olympus E-510
- Canon 5DS R vs Olympus E-510
- Canon 60D vs Nikon D5
- Canon 60D vs Nikon D70
- Canon 60D vs Nikon D70s
- Canon 60D vs Panasonic LX5
- Canon 60D vs Sony A7 IV
- Canon 60D vs Sony A99
- Canon Rebel vs Olympus E-510
- Leica S Typ 006 vs Olympus E-510
- Nikon D5100 vs Olympus E-510
- Olympus E-510 vs Sony A6500
Specifications: Canon 60D vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Olympus E-510|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||August 2010||March 2007|
|Launch Price||USD 1,399||USD 799|
|Sensor Specs||Canon 60D||Olympus E-510|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||10 Megapixels|
|Image Resolution||5184 x 3456 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.31 μm||4.74 μm|
|Pixel Density||5.39 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||TruePic III|
|DXO Sensor Quality (score)||66||52|
|DXO Color Depth (bits)||22.2||21.2|
|DXO Dynamic Range (EV)||11.5||10.0|
|DXO Low Light (ISO)||813||442|
|Screen Specs||Canon 60D||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon 60D||Olympus E-510|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5.3 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|Connectivity Specs||Canon 60D||Olympus E-510|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 60D||Olympus E-510|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||750 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||755 g (26.6 oz)||538 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
