Canon 60D vs Nikon D3400
The Canon EOS 60D and the Nikon D3400 are two digital cameras that were officially introduced, respectively, in August 2010 and August 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Nikon D3400? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 60D and the Nikon D3400 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The D3400 can be obtained in two different colors (black, red), while the 60D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3400 is notably smaller (21 percent) than the Canon 60D. Moreover, the D3400 is substantially lighter (41 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the D3400 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (60D) and the Nikon Lens Catalog (D3400).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|2.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|3.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|5.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|6.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|7.||Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|9.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|10.||Nikon D3500||124 mm||97 mm||70 mm||365 g||1550||n||Aug 2018||429|
|11.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|12.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|13.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|14.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|15.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|16.||Sony RX10 II||129 mm||88 mm||102 mm||813 g||400||Y||Jun 2015||1,299|
|17.||Sony RX10||129 mm||88 mm||102 mm||813 g||420||Y||Oct 2013||1,299|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D3400 was launched at a markedly lower price (by 64 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3400 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (60D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

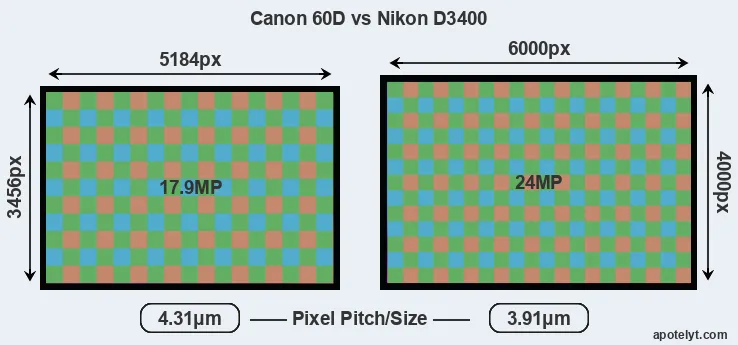

With 24MP, the D3400 offers a higher resolution than the 60D (17.9MP), but the D3400 has smaller individual pixels (pixel pitch of 3.91μm versus 4.31μm for the 60D). Yet, the D3400 is a much more recent model (by 5 years and 11 months) than the 60D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon 60D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Nikon D3400 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D3400 offers substantially better image quality than the 60D (overall score 20 points higher). The advantage is based on 2.6 bits higher color depth, 2.4 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|5.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|7.||Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|16.||Sony RX10 II||1-inch||20.0||5472||3648||4K/30p||23.0||12.6||531||70|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D3400 provides a faster frame rate than the 60D. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 60D and the D3400 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 60D offers a wider field of view (96%) than the one in the D3400 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 60D has a higher magnification (0.59x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 60D and Nikon D3400 along with similar information for a selection of comparators.
|1.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3||Y||n|
|2.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|3.||Canon 80D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0||Y||n|
|4.||Canon G3 X||optional||n||3.2 / 1620||tilting||Y||1/2000s||5.9||Y||Y|
|5.||Canon 7D II||optical||Y||3.0 / 1040||fixed||n||1/8000s||10.0||Y||n|
|6.||Canon 70D||optical||Y||3.0 / 1040||swivel||Y||1/8000s||7.0||Y||n|
|7.||Canon 1D Mark IV||optical||Y||3.0 / 920||fixed||n||1/8000s||10.0||n||n|
|8.||Canon 7D||optical||Y||3.0 / 920||fixed||n||1/8000s||8.0||Y||n|
|9.||Canon 50D||optical||Y||3.0 / 920||fixed||n||1/8000s||6.3||Y||n|
|10.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|11.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|12.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|13.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|14.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|15.||Nikon D7000||optical||Y||3.0 / 921||fixed||n||1/8000s||6.0||Y||n|
|16.||Sony RX10 II||2359||Y||3.0 / 1229||tilting||n||1/3200s||14.0||Y||Y|
|17.||Sony RX10||1440||Y||3.0 / 1229||tilting||n||1/3200s||10.0||Y||Y|
One feature that is present on the 60D, but is missing on the D3400 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the D3400 does not have a selfie-screen.
Concerning the storage of imaging data, both the 60D and the D3400 write their files to SDXC cards. The D3400 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Nikon D3400 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|2.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|3.||Canon 80D||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|4.||Canon G3 X||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon 7D II||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon 70D||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|7.||Canon 1D Mark IV||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|8.||Canon 7D||Y||mono / -||Y||-||mini||2.0||-||-||-|
|9.||Canon 50D||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|11.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|12.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|14.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|15.||Nikon D7000||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|16.||Sony RX10 II||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||-|
|17.||Sony RX10||Y||stereo / mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the 60D has a microphone port, which is missing on the D3400. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Canon 60D (unlike the D3400) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the D3400 have been discontinued, but can regularly be found used on eBay. The 60D was replaced by the Canon 70D, while the D3400 was followed by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So how do things add up? Which of the two cameras – the Canon 60D or the Nikon D3400 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 60D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More complete view: Has a viewfinder with a larger field of view (96% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.57x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2010).
Arguments in favor of the Nikon D3400:
- More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (20 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More compact: Is smaller (124x98mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 310g or 41 percent) and is thus easier to take along.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (64 percent cheaper at launch).
- More modern: Reflects 5 years and 11 months of technical progress since the 60D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the D3400 comes out slightly ahead of the 60D (13 : 12 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Nikon D3400 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the 60D or the D3400 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399|
|2.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|3.||Canon 80D||4/5||+ +||4.5/5||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|4.||Canon G3 X||3.5/5||+||..||..||4.5/5||4/5||Jun 2015||999|
|5.||Canon 7D II||4.5/5||+||3.5/5||84/100||4/5||4.5/5||Sep 2014||1,799|
|6.||Canon 70D||5/5||+ +||..||83/100||4.5/5||5/5||Jul 2013||1,199|
|7.||Canon 1D Mark IV||5/5||..||..||89/100||..||..||Oct 2009||4,999|
|8.||Canon 7D||5/5||+ +||..||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|9.||Canon 50D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|10.||Nikon D3500||..||..||4/5||75/100||4/5||4.5/5||Aug 2018||429|
|11.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|12.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|13.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|14.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|15.||Nikon D7000||4/5||..||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|16.||Sony RX10 II||5/5||+ +||..||82/100||4.5/5||4/5||Jun 2015||1,299|
|17.||Sony RX10||5/5||+||..||80/100||4.5/5||4.5/5||Oct 2013||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D X Mark III vs Nikon D3400
- Canon 60D vs Fujifilm X-A3
- Canon 60D vs Fujifilm X-E3
- Canon 60D vs Nikon D7000
- Canon 60D vs Olympus E-PM2
- Canon 60D vs Panasonic GH3
- Canon 60D vs Panasonic GX7
- Leica T vs Nikon D3400
- Nikon D3400 vs Nikon D850
- Nikon D3400 vs Olympus E-300
- Nikon D3400 vs Panasonic GX80
- Nikon D3400 vs Panasonic LX5
Specifications: Canon 60D vs Nikon D3400
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Nikon D3400|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2010||August 2016|
|Launch Price||USD 1,399||USD 499|
|Sensor Specs||Canon 60D||Nikon D3400|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||17.9 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3456 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.91 μm|
|Pixel Density||5.39 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||EXPEED 4|
|DXO Sensor Quality (score)||66||86|
|DXO Color Depth (bits)||22.2||24.8|
|DXO Dynamic Range (EV)||11.5||13.9|
|DXO Low Light (ISO)||813||1192|
|Screen Specs||Canon 60D||Nikon D3400|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon 60D||Nikon D3400|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5.3 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 60D||Nikon D3400|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 60D||Nikon D3400|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1100 shots per charge||1200 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
124 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
|Camera Weight||755 g (26.6 oz)||445 g (15.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
