Canon 60D vs Canon M
The Canon EOS 60D and the Canon EOS M are two digital cameras that were officially introduced, respectively, in August 2010 and July 2012. The 60D is a DSLR, while the Canon M is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 17.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 60D||Canon M|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Canon EF-M mount lenses|
|17.9 MP, APS-C Sensor||17.9 MP, APS-C Sensor|
|1080/30p Video||1080/30p Video|
|ISO 100-6400 (100-12800)||ISO 100-12800 (100-25600)|
|Optical viewfinder||No viewfinder, LCD framing|
|3.0" LCD, 1040k dots||3.0" LCD, 1040k dots|
|Swivel screen (not touch-sensitive)||Fixed touchscreen|
|5.3 shutter flaps per second||4.3 shutter flaps per second|
|Weathersealed body||Not weather sealed|
|1100 shots per battery charge||230 shots per battery charge|
|145 x 106 x 79 mm, 755 g||109 x 66 x 32 mm, 298 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 60D and the Canon EOS M? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Canon 60D vs Canon M

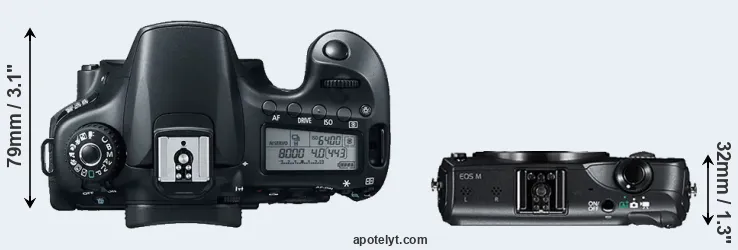

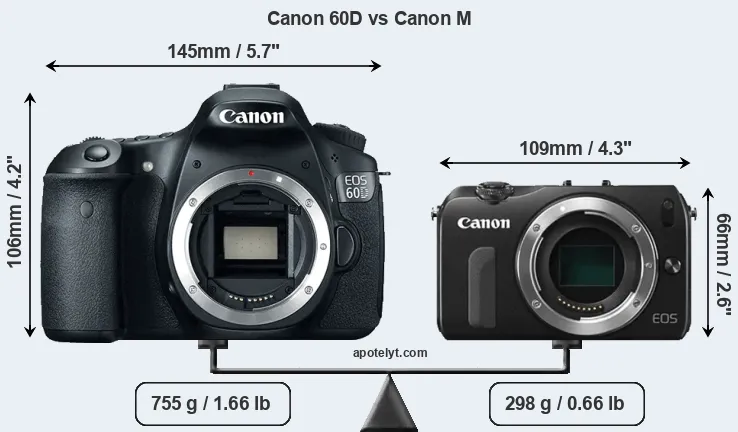

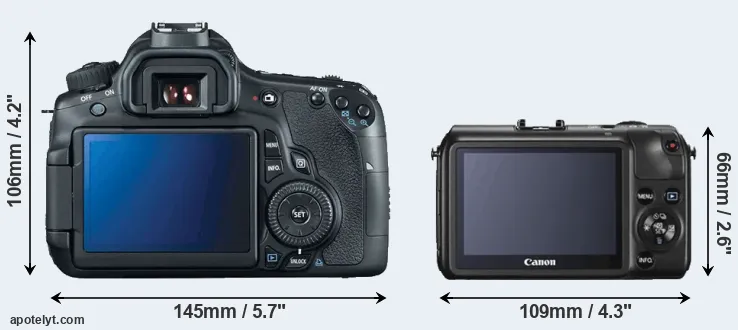

The physical size and weight of the Canon 60D and the Canon M are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The Canon M can be obtained in two different colors (black, white), while the 60D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon M is considerably smaller (53 percent) than the Canon 60D. Moreover, the Canon M is substantially lighter (61 percent) than the 60D. It is worth mentioning in this context that the 60D is splash and dust resistant, while the Canon M does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Canon 60D»||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399||-||Canon 60D|
|Canon M«||4.3 in||2.6 in||1.3 in||10.5 oz||230||n||Jul 2012||599||-||Canon M|
|Canon M100« »||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499||Canon M100|
|Canon 80D« »||5.5 in||4.1 in||3.1 in||25.8 oz||960||Y||Feb 2016||1,199||Canon 80D|
|Canon M10« »||4.3 in||2.6 in||1.4 in||10.6 oz||255||n||Oct 2015||499||-||Canon M10|
|Canon 7D II« »||5.9 in||4.4 in||3.1 in||32.1 oz||670||Y||Sep 2014||1,799||Canon 7D II|
|Canon 70D« »||5.5 in||4.1 in||3.1 in||26.6 oz||920||Y||Jul 2013||1,199||-||Canon 70D|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||-||Canon SL1|
|Canon T5i« »||5.2 in||3.9 in||3.1 in||20.5 oz||440||n||Mar 2013||649||-||Canon T5i|
|Canon T3i« »||5.2 in||3.9 in||3.1 in||20.1 oz||440||n||Feb 2011||599||-||Canon T3i|
|Canon T2i« »||5.1 in||3.9 in||2.4 in||18.7 oz||440||n||Feb 2010||699||-||Canon T2i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||-||Canon 7D|
|Canon T1i« »||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799||-||Canon T1i|
|Canon 50D« »||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299||-||Canon 50D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||-||Canon 40D|
|Nikon D7000« »||5.2 in||4.1 in||3.0 in||27.5 oz||1050||Y||Sep 2010||1,499||-||Nikon D7000|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 57 percent) than the 60D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Canon 60D vs Canon M

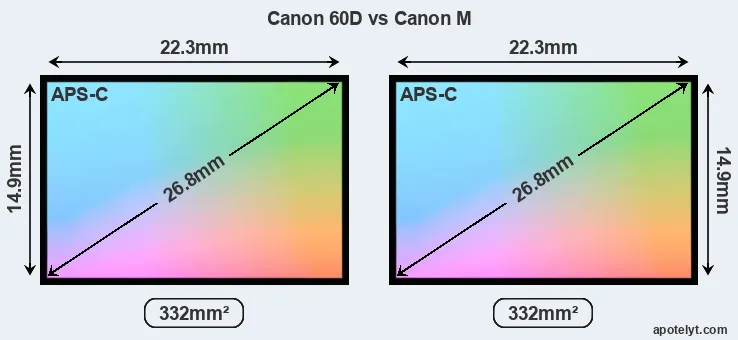

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, the Canon M uses a more advanced image processing engine (DIGIC V) than the 60D (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

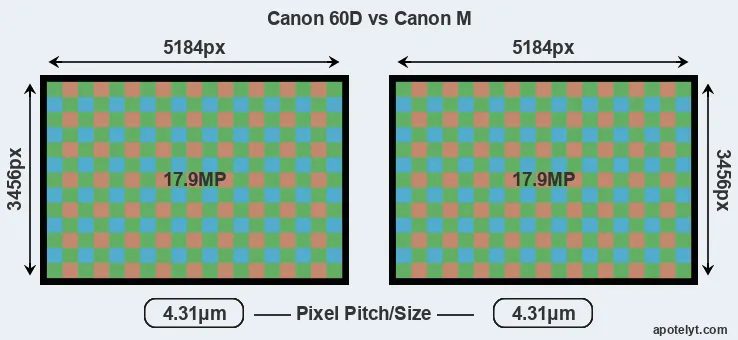

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 17.9 megapixels. This similarity in sensor specs implies that both the 60D and the Canon M have the same pixel density, as well as the same pixel size. It should, however, be noted that the Canon M is a somewhat more recent model (by 1 year and 10 months) than the 60D, and its sensor might have benefitted from technological advances during this time.
The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 60D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon EOS M are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Canon 60D»||APS-C||17.9||5184||3456||1080/30p||22.2||11.5||813||66||Canon 60D|
|Canon M«||APS-C||17.9||5184||3456||1080/30p||22.1||11.2||827||65||Canon M|
|Canon M100« »||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon 80D« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.2||1135||79||Canon 80D|
|Canon M10« »||APS-C||17.9||5184||3456||1080/30p||22.2||11.4||753||65||Canon M10|
|Canon 7D II« »||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70||Canon 7D II|
|Canon 70D« »||APS-C||20.0||5472||3648||1080/30p||22.5||11.6||926||68||Canon 70D|
|Canon SL1« »||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T5i« »||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||681||61||Canon T5i|
|Canon T3i« »||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||793||65||Canon T3i|
|Canon T2i« »||APS-C||17.9||5184||3456||1080/30p||22.1||11.5||784||66||Canon T2i|
|Canon 7D« »||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon T1i« »||APS-C||15.1||4752||3168||1080/20p||21.7||11.5||663||63||Canon T1i|
|Canon 50D« »||APS-C||15.1||4752||3168||-||21.8||11.4||696||63||Canon 50D|
|Canon 40D« »||APS-C||10.1||3888||2592||-||22.1||11.3||703||64||Canon 40D|
|Nikon D7000« »||APS-C||16.1||4928||3264||10800/24p||23.5||13.9||1167||80||Nikon D7000|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Feature comparison: Canon 60D vs Canon M
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 60D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 60D, the Canon M, and comparable cameras.
|Canon 60D»||optical||Y||3.0||1040||swivel||n||1/8000s||5.3||Y||n||Canon 60D|
|Canon M«||-||n||3.0||1040||fixed||Y||1/4000s||4.3||n||n||Canon M|
|Canon M100« »||-||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon 80D« »||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 80D|
|Canon M10« »||-||n||3.0||1040||tilting||Y||1/4000s||4.6||Y||n||Canon M10|
|Canon 7D II« »||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n||Canon 7D II|
|Canon 70D« »||optical||Y||3.0||1040||swivel||Y||1/8000s||7.0||Y||n||Canon 70D|
|Canon SL1« »||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T5i« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T5i|
|Canon T3i« »||optical||n||3.0||1040||swivel||n||1/4000s||3.7||Y||n||Canon T3i|
|Canon T2i« »||optical||n||3.0||1040||fixed||n||1/4000s||3.7||Y||n||Canon T2i|
|Canon 7D« »||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon T1i« »||optical||n||3.0||920||fixed||n||1/4000s||3.4||Y||n||Canon T1i|
|Canon 50D« »||optical||Y||3.0||920||fixed||n||1/8000s||6.3||Y||n||Canon 50D|
|Canon 40D« »||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Nikon D7000« »||optical||Y||3.0||921||fixed||n||1/8000s||6.0||Y||n||Nikon D7000|
One difference between the cameras concerns the presence of an on-board flash. The 60D has one, while the Canon M does not. While the built-in flash of the 60D is not very powerful, it can at times be useful as a fill-in light.The 60D has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the Canon M does not have a selfie-screen.
Concerning the storage of imaging data, both the 60D and the Canon M write their files to SDXC cards. The Canon M supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 60D cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison: Canon 60D vs Canon M
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 60D and Canon EOS M and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 60D»||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon 60D|
|Canon M«||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon M|
|Canon M100« »||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon 80D« »||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-||Canon 80D|
|Canon M10« »||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon M10|
|Canon 7D II« »||Y||stereo||mono||Y||Y||mini||3.0||-||-||-||Canon 7D II|
|Canon 70D« »||Y||stereo||mono||Y||-||mini||2.0||Y||-||-||Canon 70D|
|Canon SL1« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T5i« »||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T5i|
|Canon T3i« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon T3i|
|Canon T2i« »||Y||stereo||-||Y||-||mini||2.0||-||-||-||Canon T2i|
|Canon 7D« »||Y||mono||-||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon T1i« »||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T1i|
|Canon 50D« »||Y||-||-||-||-||mini||2.0||-||-||-||Canon 50D|
|Canon 40D« »||Y||-||-||-||-||-||2.0||-||-||-||Canon 40D|
|Nikon D7000« »||Y||mono||mono||Y||-||mini||2.0||-||-||-||Nikon D7000|
Studio photographers will appreciate that the Canon 60D (unlike the Canon M) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 60D and the Canon M have been discontinued, but can regularly be found used on eBay. The 60D was replaced by the Canon 70D, while the Canon M was followed by the Canon EOS M3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.
Review summary: Canon 60D vs Canon M
So what is the bottom line? Is the Canon 60D better than the Canon M or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 60D:
- Easier framing: Has an optical viewfinder for image framing and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More flexible LCD: Has swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5.3 vs 4.3 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (1100 versus 230) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in August 2010).
Advantages of the Canon EOS M:
- Better jpgs: Has a more modern image processing engine (DIGIC V vs DIGIC 4).
- Better live-view autofocus: Features on-sensor phase-detection for quicker and more confident autofocus.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More compact: Is smaller (109x66mm vs 145x106mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 457g or 61 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (57 percent cheaper at launch).
- More modern: Was introduced somewhat (1 year and 10 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the 60D emerges as the winner of the contest (11 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 60D and the Canon M place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 60D or the Canon M perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Canon 60D vs Canon M
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 60D»||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399||-||Canon 60D|
|Canon M«||+||-||4/5||3.5/5||4/5||Jul 2012||599||-||Canon M|
|Canon M100« »||+||-||4/5||-||3.5/5||Aug 2017||499||Canon M100|
|Canon 80D« »||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199||Canon 80D|
|Canon M10« »||-||-||-||o||4/5||Oct 2015||499||-||Canon M10|
|Canon 7D II« »||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799||Canon 7D II|
|Canon 70D« »||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199||-||Canon 70D|
|Canon SL1« »||+||78/100||4/5||4/5||4/5||Mar 2013||549||-||Canon SL1|
|Canon T5i« »||-||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649||-||Canon T5i|
|Canon T3i« »||o||77/100||4.5/5||5/5||4.5/5||Feb 2011||599||-||Canon T3i|
|Canon T2i« »||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699||-||Canon T2i|
|Canon 7D« »||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699||-||Canon 7D|
|Canon T1i« »||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799||-||Canon T1i|
|Canon 50D« »||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299||-||Canon 50D|
|Canon 40D« »||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299||-||Canon 40D|
|Nikon D7000« »||-||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499||-||Nikon D7000|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 60D vs Canon M
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 60D||Canon M|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Canon EF-M mount lenses|
|Launch Date||August 2010||July 2012|
|Launch Price||USD 1399||USD 599|
|Sensor Specs||Canon 60D||Canon M|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||22.3 x 14.9 mm|
|Sensor Area||332.27 mm2||332.27 mm2|
|Sensor Diagonal||26.8 mm||26.8 mm|
|Sensor Resolution||17.9 Megapixels||17.9 Megapixels|
|Image Resolution||5184 x 3456 pixels||5184 x 3456 pixels|
|Pixel Pitch||4.31 μm||4.31 μm|
|Pixel Density||5.39 MP/cm2||5.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100-6400 ISO||100-12800 ISO|
|ISO Boost||100-12800 ISO||100-25600 ISO|
|Image Processor||DIGIC 4||DIGIC V|
|DXO Sensor Quality (score)||66||65|
|DXO Color Depth (bits)||22.2||22.1|
|DXO Dynamic Range (EV)||11.5||11.2|
|DXO Low Light (ISO)||813||827|
|Screen Specs||Canon 60D||Canon M|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 60D||Canon M|
|Autofocus System||Phase-detect AF||On-Sensor Phase-detect|
|Continuous Shooting||5.3 shutter flaps/s||4.3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||100 000 actuations|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon 60D||Canon M|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 60D||Canon M|
|Environmental Sealing||Weathersealed body||Not weather sealed|
|Battery Type||LP-E6 power pack||LP-E12 power pack|
|Battery Life (CIPA)||1100 shots per charge||230 shots per charge|
145 x 106 x 79 mm
(5.7 x 4.2 x 3.1 in)
109 x 66 x 32 mm
(4.3 x 2.6 x 1.3 in)
|Camera Weight||755 g (26.6 oz)||298 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
