Canon 600D vs SX40

The Canon EOS 600D (called Canon T3i in some regions) and the Canon PowerShot SX40 HS are two digital cameras that were revealed to the public, respectively, in February 2011 and September 2011. The 600D is a DSLR, while the SX40 is a fixed lens compact. The cameras are based on an APS-C (600D) and a 1/2.3-inch (SX40) sensor. The 600D has a resolution of 17.9 megapixels, whereas the SX40 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 600D		Canon SX40
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		24-840mm f/2.7-5.8
17.9 MP – APS-C sensor		12 MP – 1/2.3" sensor
1080/30p Video		1080/24p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-3,200
Optical viewfinder		Electronic viewfinder (202k dots)
3.0" LCD – 1040k dots		2.7" LCD – 230k dots
Swivel screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
3.7 shutter flaps per second		10.3 shutter flaps per second
440 shots per battery charge		380 shots per battery charge
133 x 100 x 80 mm, 570 g		123 x 92 x 108 mm, 600 g

Check 600D offers at
ebay.com
Check SX40 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 600D and the Canon PowerShot SX40 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

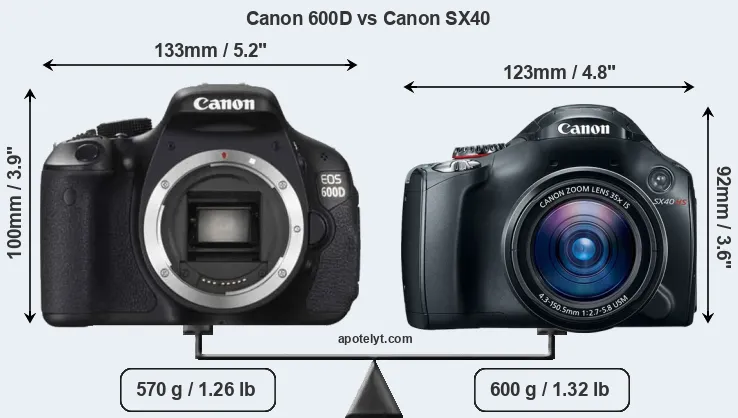

Body comparison

The physical size and weight of the Canon 600D and the Canon SX40 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX40 is notably smaller (15 percent) than the Canon 600D. In this context, it is worth noting that neither the 600D nor the SX40 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX40 has a lens built in, whereas the 600D is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 600D and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 600D gets 440 shots out of its Canon LP-E8 battery, while the SX40 can take 380 images on a single charge of its Canon NB-10L power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 600D	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
2.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	429	ebay.com
3.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
4.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
5.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
6.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
7.		Canon 700D	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
8.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
9.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
10.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	429	ebay.com
11.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
12.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	429	ebay.com
13.		Canon 550D	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
14.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	399	ebay.com
15.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
16.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	499	ebay.com
17.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX40 was launched at a lower price than the 600D, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 600D features an APS-C sensor and the Canon SX40 a 1/2.3-inch sensor. The sensor area in the SX40 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 5.6. The sensor in the 600D has a native 3:2 aspect ratio, while the one in the SX40 offers a 4:3 aspect.

With 17.9MP, the 600D offers a higher resolution than the SX40 (12MP), but the 600D nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 1.53μm for the SX40) due to its larger sensor. However, the SX40 is a somewhat more recent model (by 7 months) than the 600D, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX40 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon 600D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 600D for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Canon SX40 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon EOS 600D has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Canon PowerShot SX40 HS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the 600D is build around a CMOS sensor, while the SX40 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 600D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
2.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
3.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
4.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
5.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
6.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
7.		Canon 700D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
8.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
9.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
10.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
11.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
12.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
13.		Canon 550D	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
14.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
15.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
16.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
17.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the 600D provides a higher frame rate than the SX40. It can shoot video footage at 1080/30p, while the SX40 is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX40 has an electronic viewfinder (202k dots), while the 600D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon 600D and Canon SX40 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 600D	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
2.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
3.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
7.		Canon 700D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
10.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
11.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
13.		Canon 550D	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
14.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
15.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
16.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
17.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the 600D and the SX40 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 600D and Canon PowerShot SX40 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 600D	Y	mono / mono	Y	-	mini	2.0	-	-	-
2.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon 700D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
13.		Canon 550D	Y	stereo / -	Y	-	mini	2.0	-	-	-
14.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
15.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the 600D has a microphone port, which is missing on the SX40. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the 600D and the SX40 have been discontinued, but can regularly be found used on ebay. The 600D was replaced by the Canon 650D, while the SX40 was followed by the Canon SX50. Further information on the features and operation of the 600D and SX40 can be found, respectively, in the Canon 600D Manual (free pdf) or the online Canon SX40 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon 600D and the Canon SX40? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS 600D:

• More detail: Offers more megapixels (17.9 vs 12MP) with a 25% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (440 versus 380) on a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in February 2011).

Advantages of the Canon PowerShot SX40 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10.3 vs 3.7 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 600D requires a separate lens.
• More compact: Is smaller (123x92mm vs 133x100mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (7 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the 600D is the clear winner of the match-up (16 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 600D and the Canon SX40 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 600D or the SX40 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon 600D	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
2.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	429	ebay.com
3.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
4.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
5.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
6.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
7.		Canon 700D	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
8.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
9.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
10.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	429	ebay.com
11.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
12.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	429	ebay.com
13.		Canon 550D	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
14.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	399	ebay.com
15.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
16.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	499	ebay.com
17.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
