Canon 5DS vs Panasonic S5
The Canon EOS 5DS and the Panasonic Lumix DC-S5 are two digital cameras that were revealed to the public, respectively, in February 2015 and September 2020. The 5DS is a DSLR, while the S5 is a mirrorless interchangeable lens camera. Both cameras are equipped with a full frame sensor. The Canon has a resolution of 50.3 megapixels, whereas the Panasonic provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5DS and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

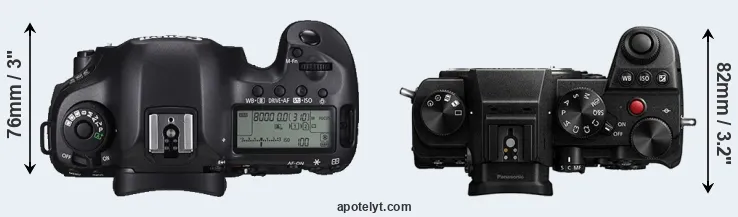

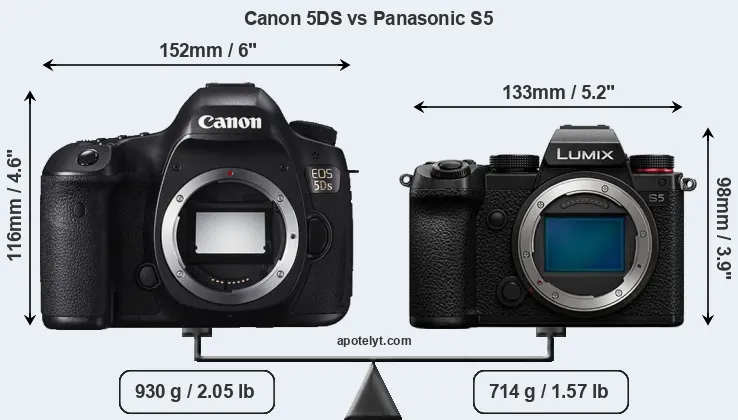

An illustration of the physical size and weight of the Canon 5DS and the Panasonic S5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is notably smaller (26 percent) than the Canon 5DS. Moreover, the S5 is markedly lighter (23 percent) than the 5DS. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the 5DS gets 700 shots out of its LP-E6 battery, while the S5 can take 440 images on a single charge of its DMW-BLK22 power pack. The power pack in the S5 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon 5DS||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|2.||Panasonic S5||133 mm||98 mm||82 mm||714 g||440||Y||Sep 2020||1,999|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|5.||Canon 5DS R||152 mm||116 mm||76 mm||930 g||700||Y||Feb 2015||3,699|
|6.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|7.||Canon 6D||145 mm||111 mm||71 mm||770 g||1090||Y||Sep 2012||2,099|
|8.||Canon 5D Mark II||152 mm||114 mm||75 mm||850 g||850||Y||Sep 2008||3,499|
|9.||Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|10.||Nikon Z6 II||134 mm||101 mm||70 mm||705 g||410||Y||Oct 2020||1,999|
|11.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|12.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|13.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|14.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|15.||Panasonic S1H||151 mm||114 mm||110 mm||1052 g||400||Y||May 2019||3,999|
|16.||Sony A7 III||127 mm||96 mm||74 mm||650 g||610||Y||Feb 2018||1,999|
|17.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The S5 was launched at a markedly lower price (by 46 percent) than the 5DS, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

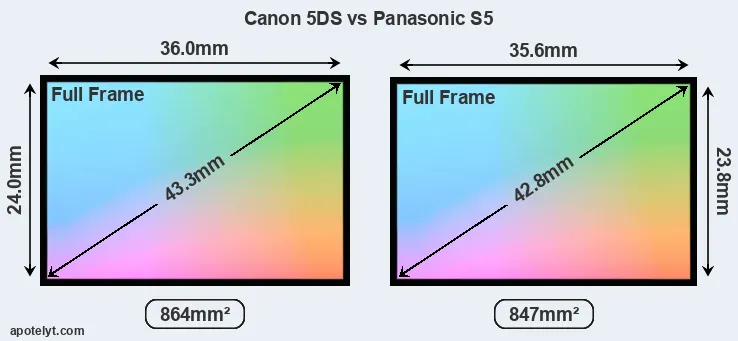

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the S5 is 2 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

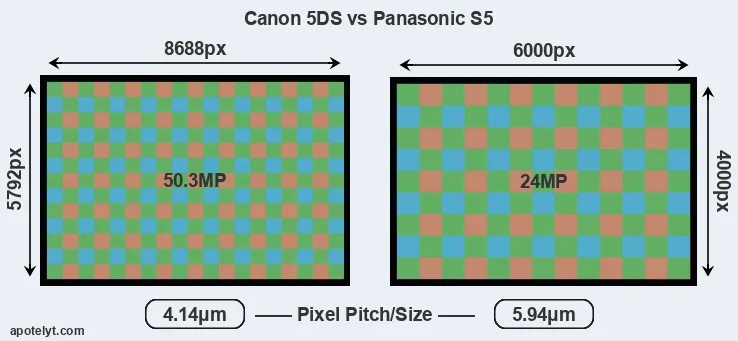

With 50.3MP, the 5DS offers a higher resolution than the S5 (24MP), but the 5DS has smaller individual pixels (pixel pitch of 4.14μm versus 5.94μm for the S5). Moreover, the S5 is a much more recent model (by 5 years and 6 months) than the 5DS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5DS implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5DS for good quality output (200 dots per inch) amounts to 43.4 x 29 inches or 110.3 x 73.6 cm, for very good quality (250 dpi) 34.8 x 23.2 inches or 88.3 x 58.8 cm, and for excellent quality (300 dpi) 29 x 19.3 inches or 73.6 x 49 cm. The corresponding values for the Panasonic S5 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.
Unlike the 5DS, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 5DS has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-12800. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|2.||Panasonic S5||Full Frame||24.0||6000||4000||4K/60p||..||..||..||..|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Canon 5DS R||Full Frame||50.3||8688||5792||1080/30p||24.6||12.4||2308||86|
|6.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|7.||Canon 6D||Full Frame||20.0||5472||3648||1080/30p||23.8||12.1||2340||82|
|8.||Canon 5D Mark II||Full Frame||21.0||5616||3744||1080/30p||23.7||11.9||1815||79|
|9.||Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|10.||Nikon Z6 II||Full Frame||24.3||6048||4024||4K/60p||..||..||..||..|
|11.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|12.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|13.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|14.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|15.||Panasonic S1H||Full Frame||24.0||6000||4000||6K/30p||..||..||..||..|
|16.||Sony A7 III||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96|
|17.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S5 provides a better video resolution than the 5DS. It can shoot movie footage at 4K/60p, while the Canon is limited to 1080/30p.

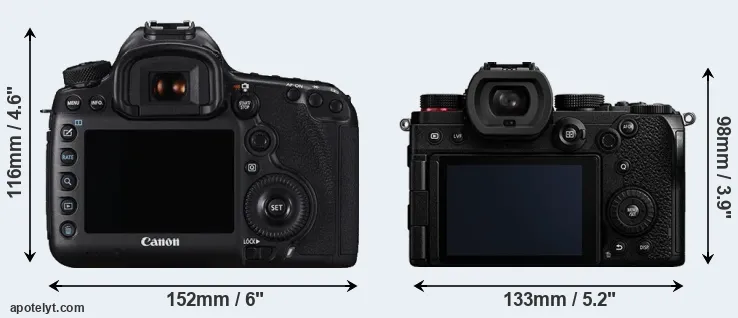

Apart from body and sensor, cameras can and do differ across a range of features. For example, the S5 has an electronic viewfinder (2360k dots), while the 5DS has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the S5 has a higher magnification than the one of the 5DS (0.74x vs 0.71x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5DS and Panasonic S5 in connection with corresponding information for a sample of similar cameras.
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|5.||Canon 5DS R||optical||Y||3.2||1040||fixed||n||1/8000s||5.0||n||n|
|6.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|8.||Canon 5D Mark II||optical||Y||3.0||920||fixed||n||1/8000s||3.9||n||n|
|10.||Nikon Z6 II||3690||Y||3.2||2100||tilting||Y||1/8000s||14.0||n||Y|
|16.||Sony A7 III||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y|
|17.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that is present on the 5DS, but is missing on the S5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The S5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5DS does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 5DS and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5DS writes its imaging data to Compact Flash or SDXC cards, while the S5 uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The S5 supports UHS-II cards (on its first slot), while the 5DS can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5DS and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|5.||Canon 5DS R||Y||mono||mono||Y||-||mini||3.0||-||-||-|
|6.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|8.||Canon 5D Mark II||Y||mono||mono||Y||-||mini||2.0||-||-||-|
|10.||Nikon Z6 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|16.||Sony A7 III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|17.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the S5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 5DS does not provide wifi capability.
Studio photographers will appreciate that the Canon 5DS (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 5DS and the S5 are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon and Panasonic. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Canon 5DS or the Panasonic S5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 5DS:
- More detail: Offers more megapixels (50.3 vs 24MP) with a 45% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Longer lasting: Can take more shots (700 versus 440) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2015).
Advantages of the Panasonic Lumix DC-S5:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.71x).
- More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (133x98mm vs 152x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 216g or 23 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Reflects 5 years and 6 months of technical progress since the 5DS launch.
If the count of relative strengths (bullet points above) is taken as a measure, the S5 is the clear winner of the contest (22 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5DS and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 5DS and the S5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 5DS||..||+||83/100||4.5/5||4.5/5||Feb 2015||3,699|
|2.||Panasonic S5||4.5/5||+ +||88/100||4.5/5||4.5/5||Sep 2020||1,999|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|5.||Canon 5DS R||5/5||+||83/100||5/5||4.5/5||Feb 2015||3,699|
|6.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|7.||Canon 6D||5/5||+ +||83/100||4.5/5||4.5/5||Sep 2012||2,099|
|8.||Canon 5D Mark II||4/5||91/100||79/100||4/5||..||Sep 2008||3,499|
|9.||Canon 5D||..||88/100||+ +||o||..||Aug 2005||3,299|
|10.||Nikon Z6 II||4.5/5||..||89/100||4.5/5||4.5/5||Oct 2020||1,999|
|11.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|12.||Nikon D810||5/5||..||86/100||5/5||4.5/5||Jun 2014||3,299|
|13.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|14.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|15.||Panasonic S1H||..||..||90/100||..||..||May 2019||3,999|
|16.||Sony A7 III||..||+ +||89/100||5/5||5/5||Feb 2018||1,999|
|17.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 5DS vs Panasonic S5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 5DS||Panasonic S5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Leica L mount lenses|
|Launch Date||February 2015||September 2020|
|Launch Price||USD 3,699||USD 1,999|
|Sensor Specs||Canon 5DS||Panasonic S5|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||36.0 x 24.0 mm||35.6 x 23.8 mm|
|Sensor Area||864 mm2||847.28 mm2|
|Sensor Diagonal||43.3 mm||42.8 mm|
|Sensor Resolution||50.3 Megapixels||24 Megapixels|
|Image Resolution||8688 x 5792 pixels||6000 x 4000 pixels|
|Pixel Pitch||4.14 μm||5.94 μm|
|Pixel Density||5.82 MP/cm2||2.83 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/60p Video|
|ISO Setting||100 - 6,400 ISO||100 - 51,200 ISO|
|ISO Boost||50 - 12,800 ISO||50 - 204,800 ISO|
|Image Processor||DIGIC 6 (Dual)||Venus|
|DXO Sensor Quality (score)||87||..|
|DXO Color Depth (bits)||24.7||..|
|DXO Dynamic Range (EV)||12.4||..|
|DXO Low Light (ISO)||2381||..|
|Screen Specs||Canon 5DS||Panasonic S5|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1040k dots||1840k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 5DS||Panasonic S5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||7 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Canon 5DS||Panasonic S5|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 3.2|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 5DS||Panasonic S5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||700 shots per charge||440 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
152 x 116 x 76 mm
(6.0 x 4.6 x 3.0 in)
133 x 98 x 82 mm
(5.2 x 3.9 x 3.2 in)
|Camera Weight||930 g (32.8 oz)||714 g (25.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
